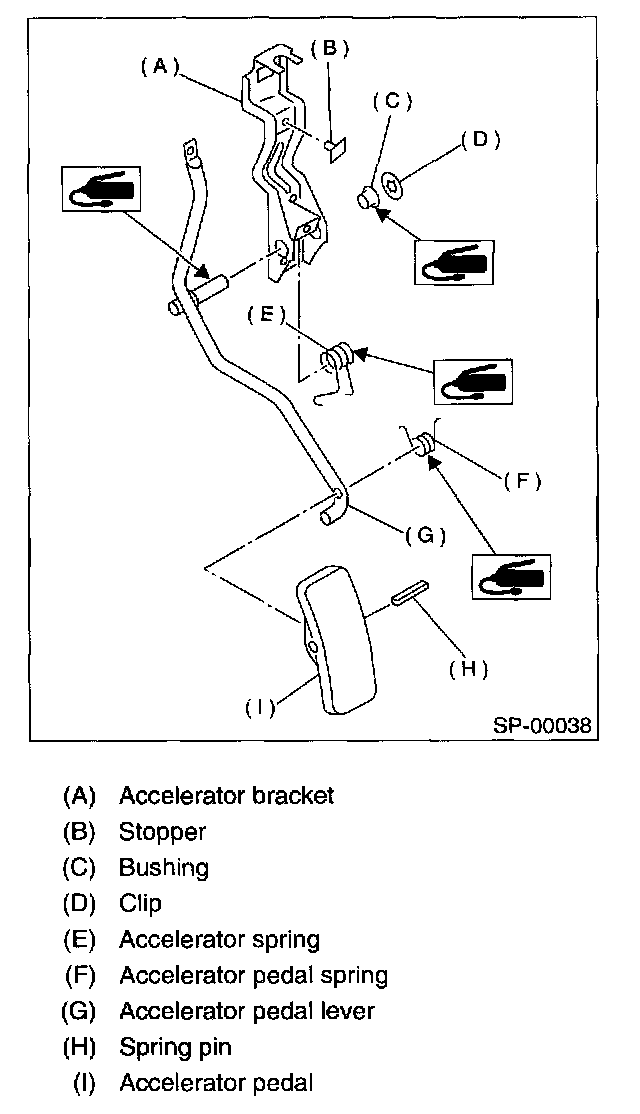

Disassembly and Assembly

DISASSEMBLY

1. Remove the clip, and then remove the accelerator pedal from the bracket.
2. Pull out the spring pin, and then remove the accelerator pedal from the accelerator pedal lever.

ASSEMBLY

Assemble in the reverse order of disassembly.

CAUTION: Clean and apply grease to spacer and inside bore of a accelerator pedal.
