Accelerator Pedal: Testing and Inspection

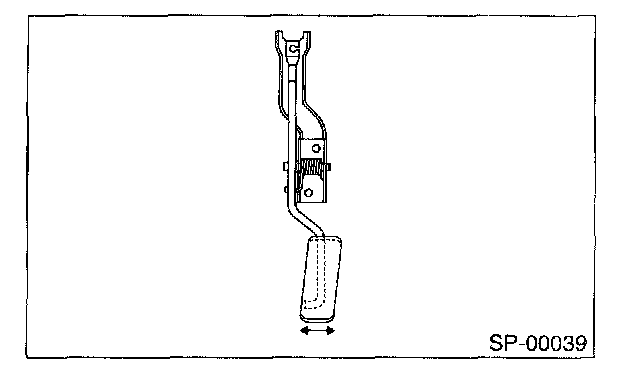

INSPECTIONLightly move pedal pad in the lateral direction to ensure pedal deflection is in specified range.
CAUTION: If excessive deflection is noted, replace bushing and clip with new ones.
Deflection of
accelerator pedal: Service limit
5.0 mm (0.197 in) or less
