Fuel Pressure Release: Service and Repair

RELEASING OF FUEL PRESSURE

WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel on the floor.

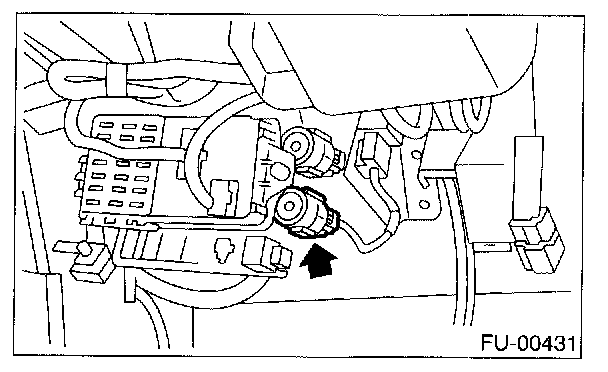

1. Disconnect connector from fuel pump relay.
2. Start the engine and run it until it stalls.
3. After the engine stalls, crank it for five more seconds.
4. Turn ignition switch to OFF.
