Fuel Pump Control Unit: Service and Repair

Fuel Pump Controller

REMOVAL

1. Disconnect battery ground cable.
2. Remove rear quarter Trim.

3. Disconnect connector from fuel pump control unit.

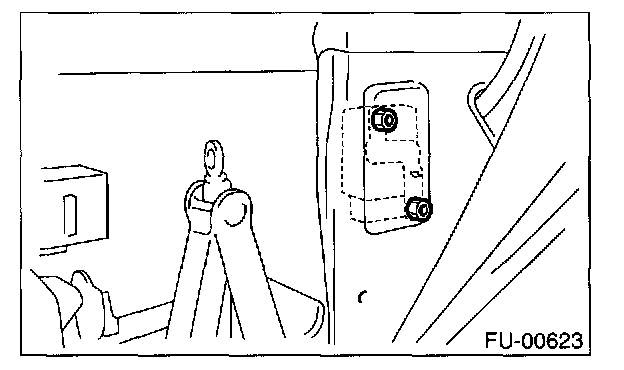

4. Remove fuel pump control unit.

INSTALLATION
Install in the reverse order of removal.
