Disassembly and Assembly

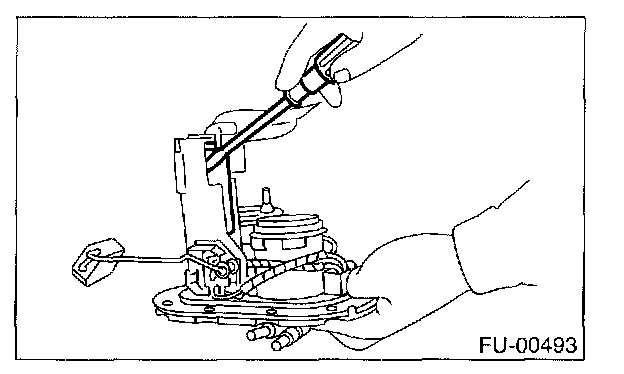

DISASSEMBLY 1.
Remove
fuel pump and pump holder.
NOTE: When disassembling pump holder, be careful as it is installed with two pawls.

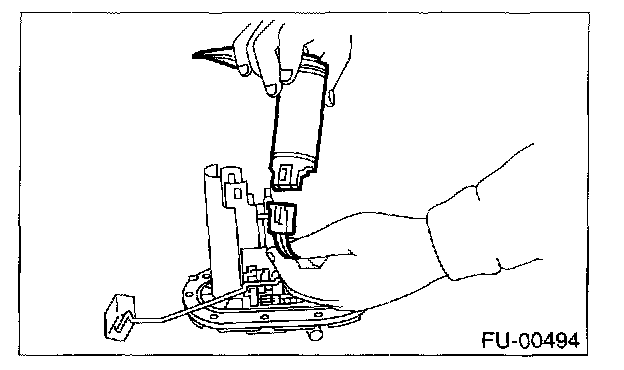

2.
Disconnect connector from
fuel pump.
ASSEMBLYAssemble in the reverse order of disassembly.
