Fuel Temperature Sensor: Service and Repair

REMOVAL

WARNING: During work procedures, if fuel tank is more than 3/4 full, be careful because fuel may spill.

NOTE: Fuel temperature sensor is built in fuel pump assembly.

1. Remove fuel pump assembly.

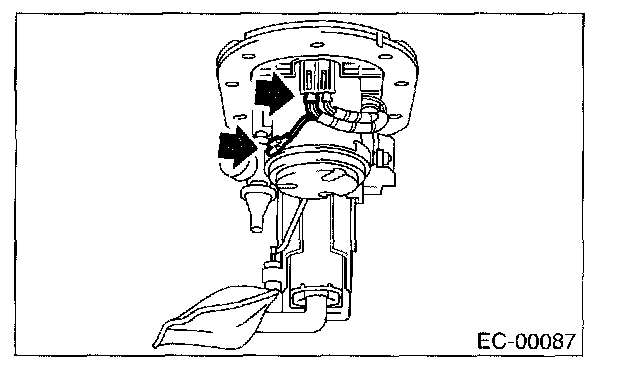

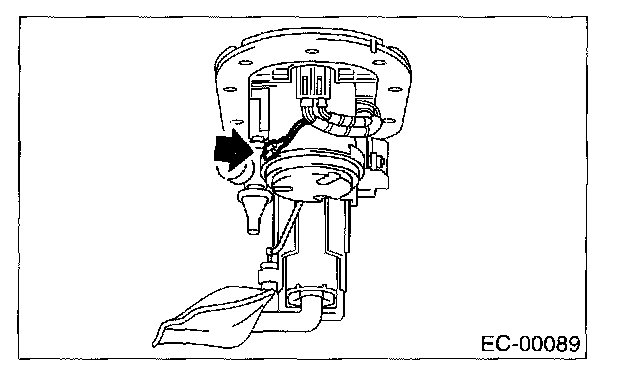

2. Disconnect connector from fuel pump bracket.

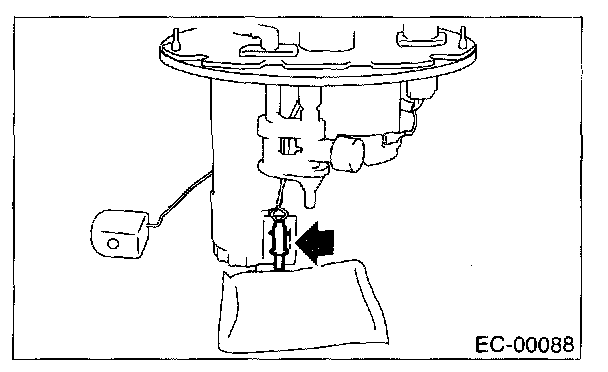

3. Remove fuel temperature sensor.

NOTE: When replacing fuel temperature sensor, also replace fuel level sensor.

INSTALLATION

1. Install in the reverse order of removal.

WARNING:
- Ground cable must be connected.
- Spark may occur and ignite if fuel is nearby.
