Intake Air Plenum: Service and Repair

Air Intake Chamber

REMOVAL

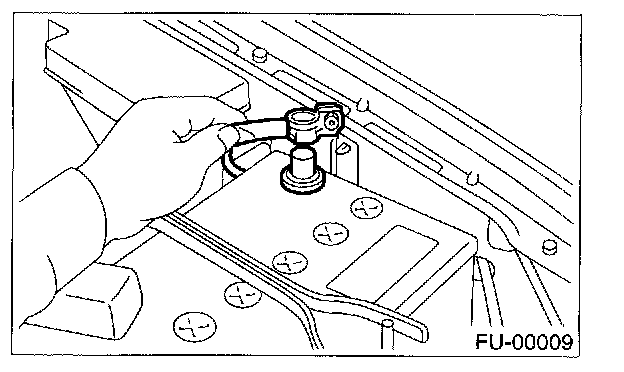

1. Disconnect battery ground cable.

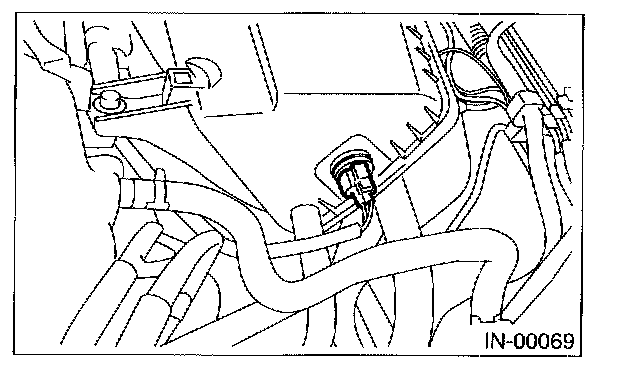

2. Disconnect connector from intake air temperature sensor.

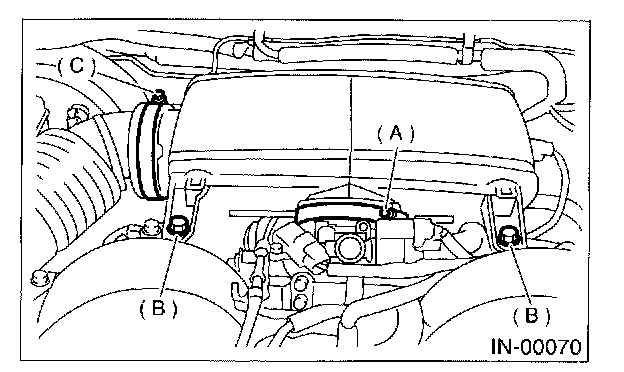

3. Loosen clamp (A) which connects air intake chamber to throttle body.
4. Remove bolts (B) which install air intake chamber to intake manifold.




5. Loosen clamp (C) which connects air intake chamber to air intake boot.
6. Disconnect hoses from air intake chamber.
7. Remove air intake chamber.

INSTALLATION
Install in the reverse order of removal.
