Variable Induction Control Solenoid: Service and Repair

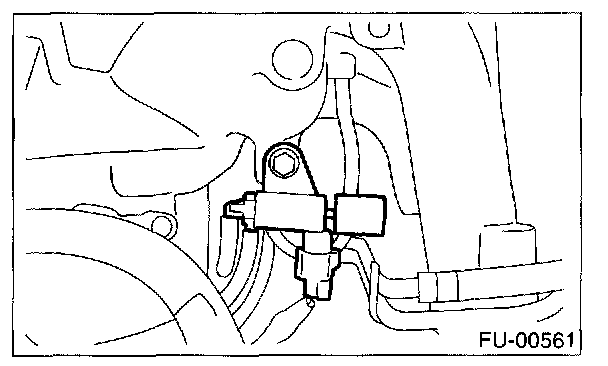

Induction Valve Control Solenoid

REMOVAL

1. Disconnect battery ground cable.
2. Remove intake manifold.
3. Disconnect connector from induction valve control solenoid.

4. Remove induction valve control solenoid from intake manifold.

INSTALLATION

Install in the reverse order of removal.

NOTE: Always use a new gasket.

Tightening torque: 19 N.m (1.9 kgf-m, 14 ft-lb)
