Diagnostic Procedure For AT Oil Temp Warning Light

Diagnostic Procedure for "AT OIL TEMP" Warning Light
AT OIL TEMP WARNING LIGHT DOES NOT COME ON OR GO OFF

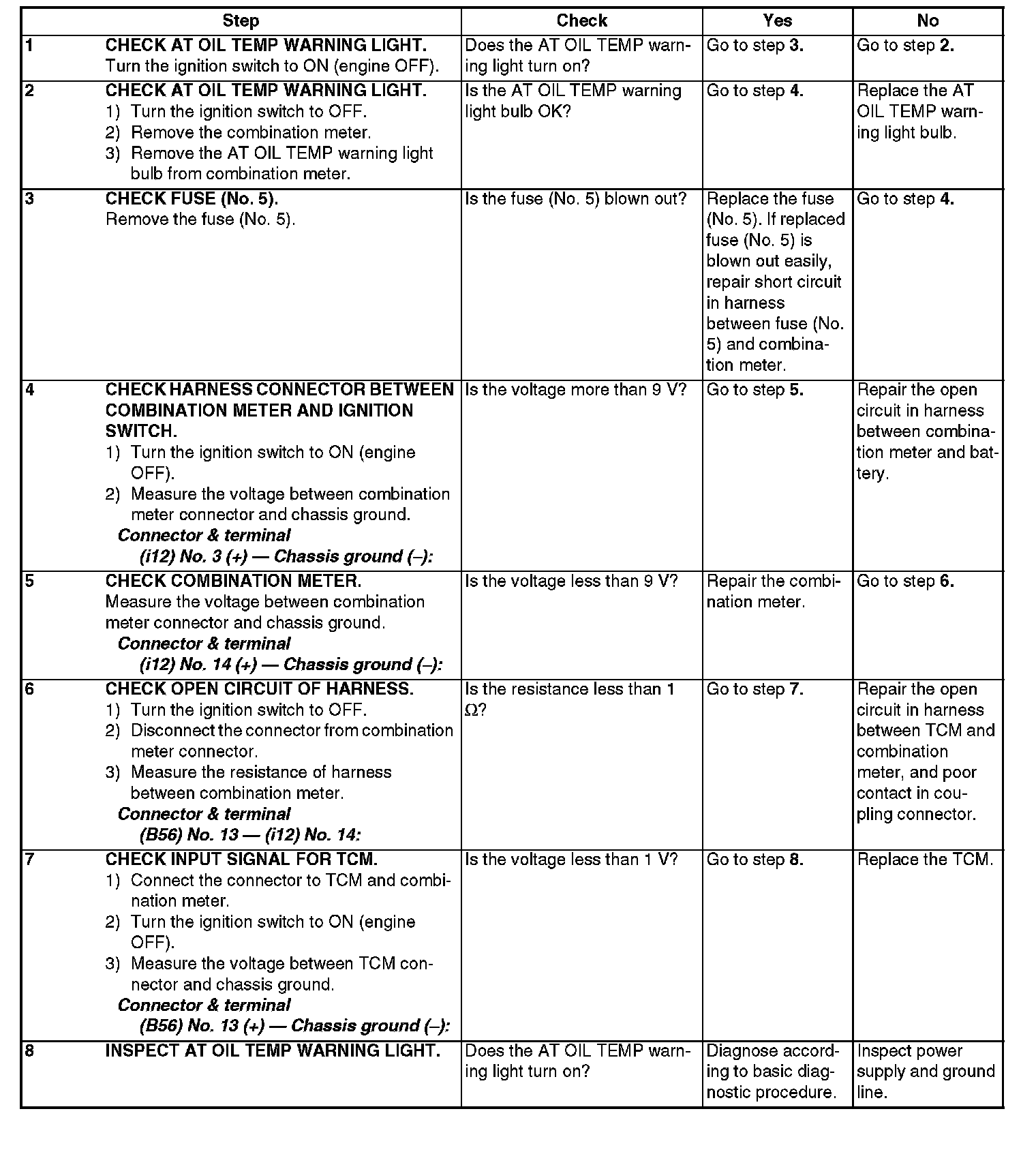

Steps 1-7:

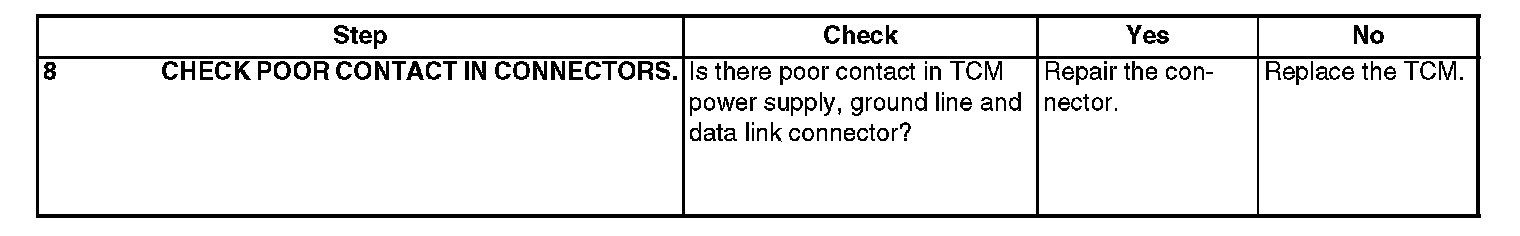

Step 8:

DIAGNOSIS:
AT OIL TEMP warning light circuit is open or shorted.

TROUBLE SYMPTOM:
^ When the ignition switch is turned to ON (engine OFF), AT OIL TEMP warning light does not turn on.

Steps 1-8:

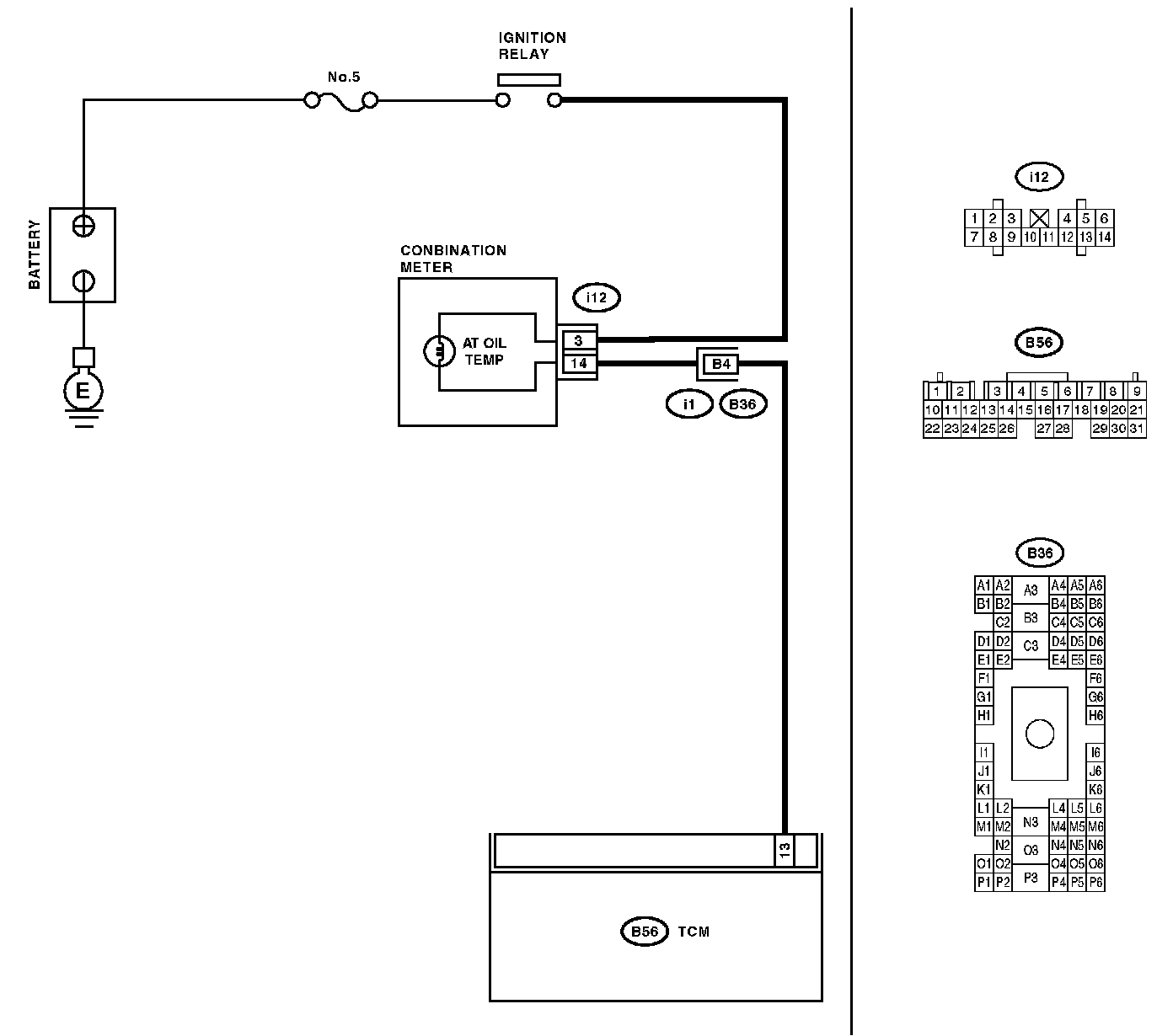

WIRING DIAGRAM

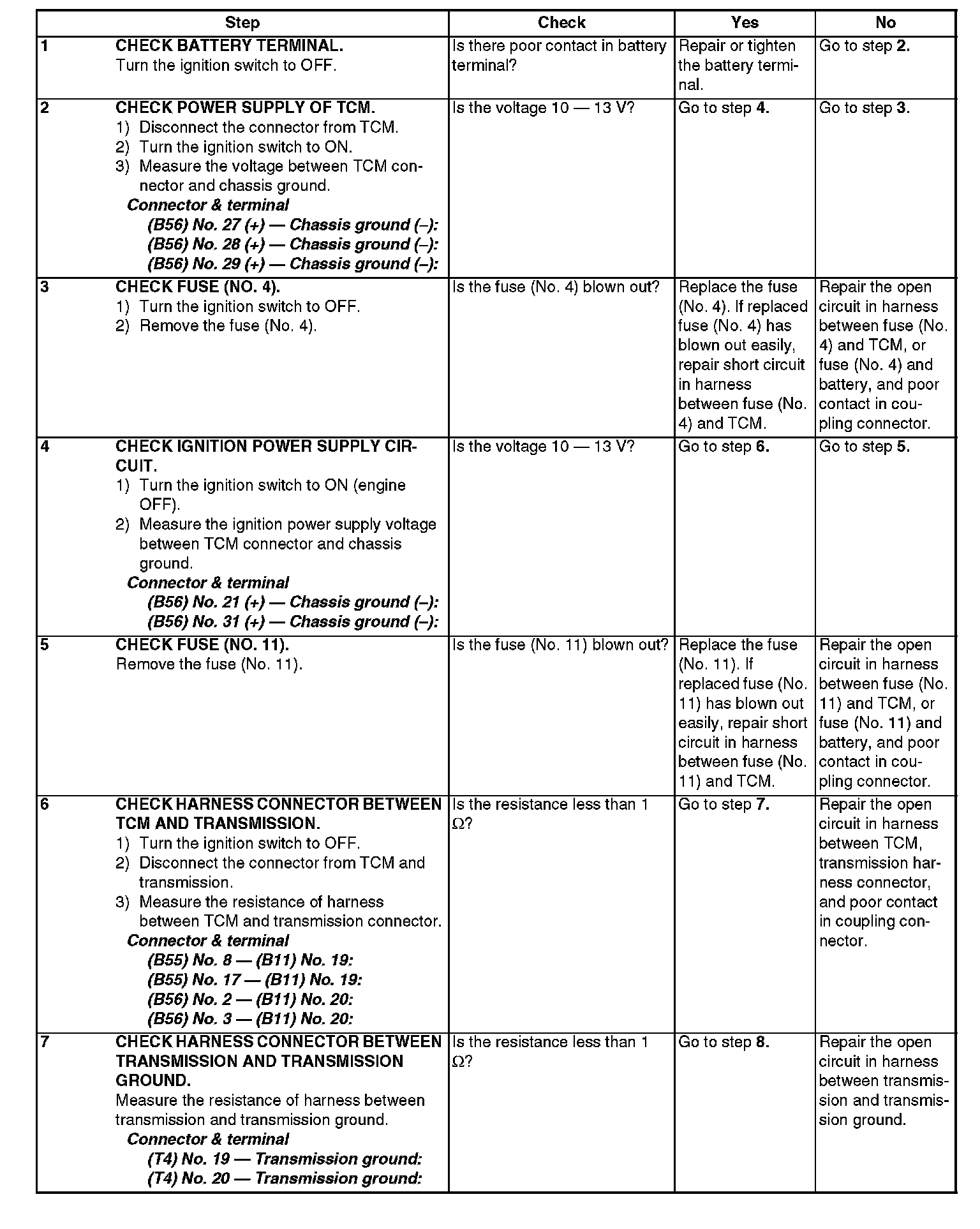

CHECK POWER SUPPLY AND GROUND LINE

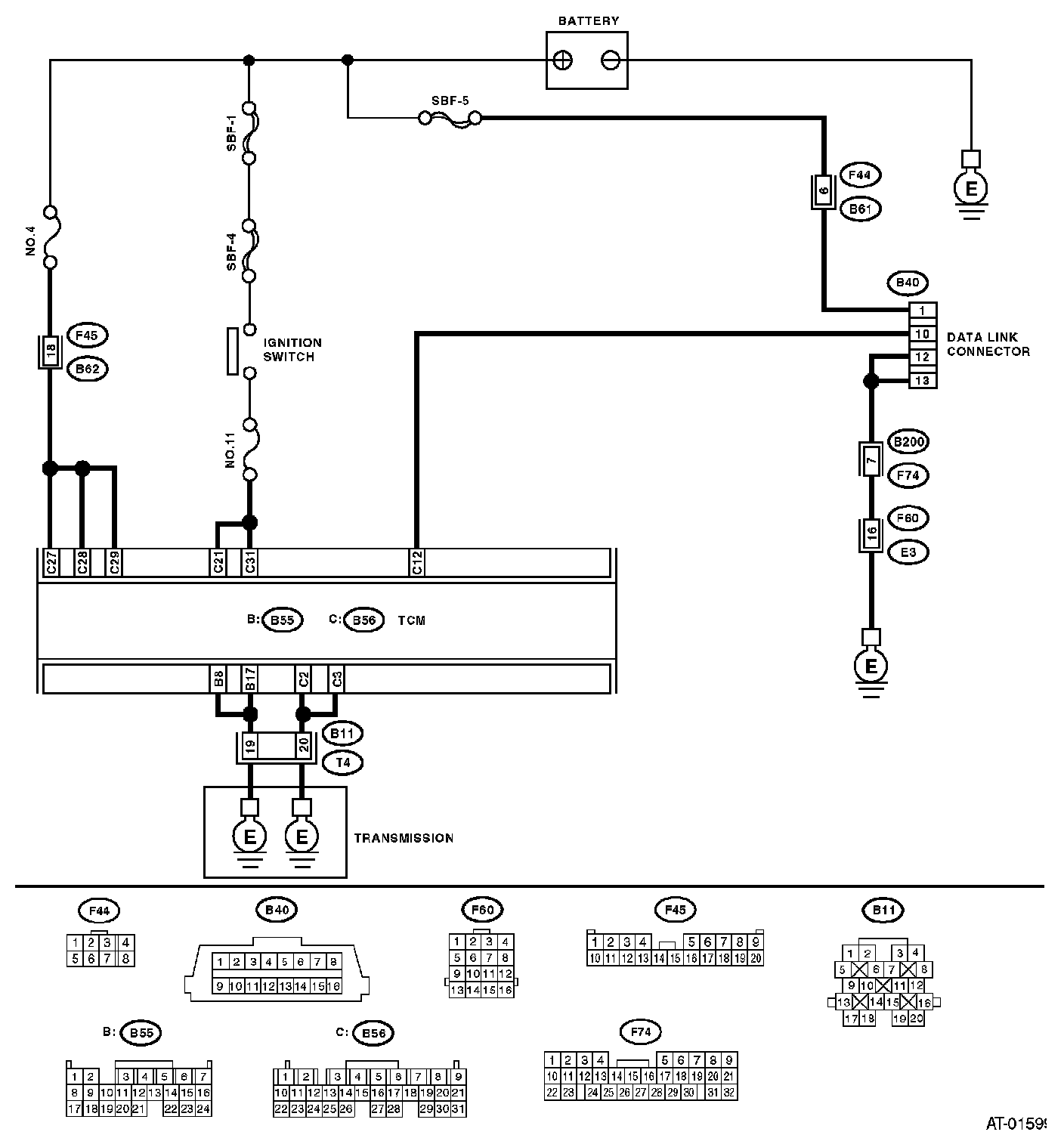

WIRING DIAGRAM
