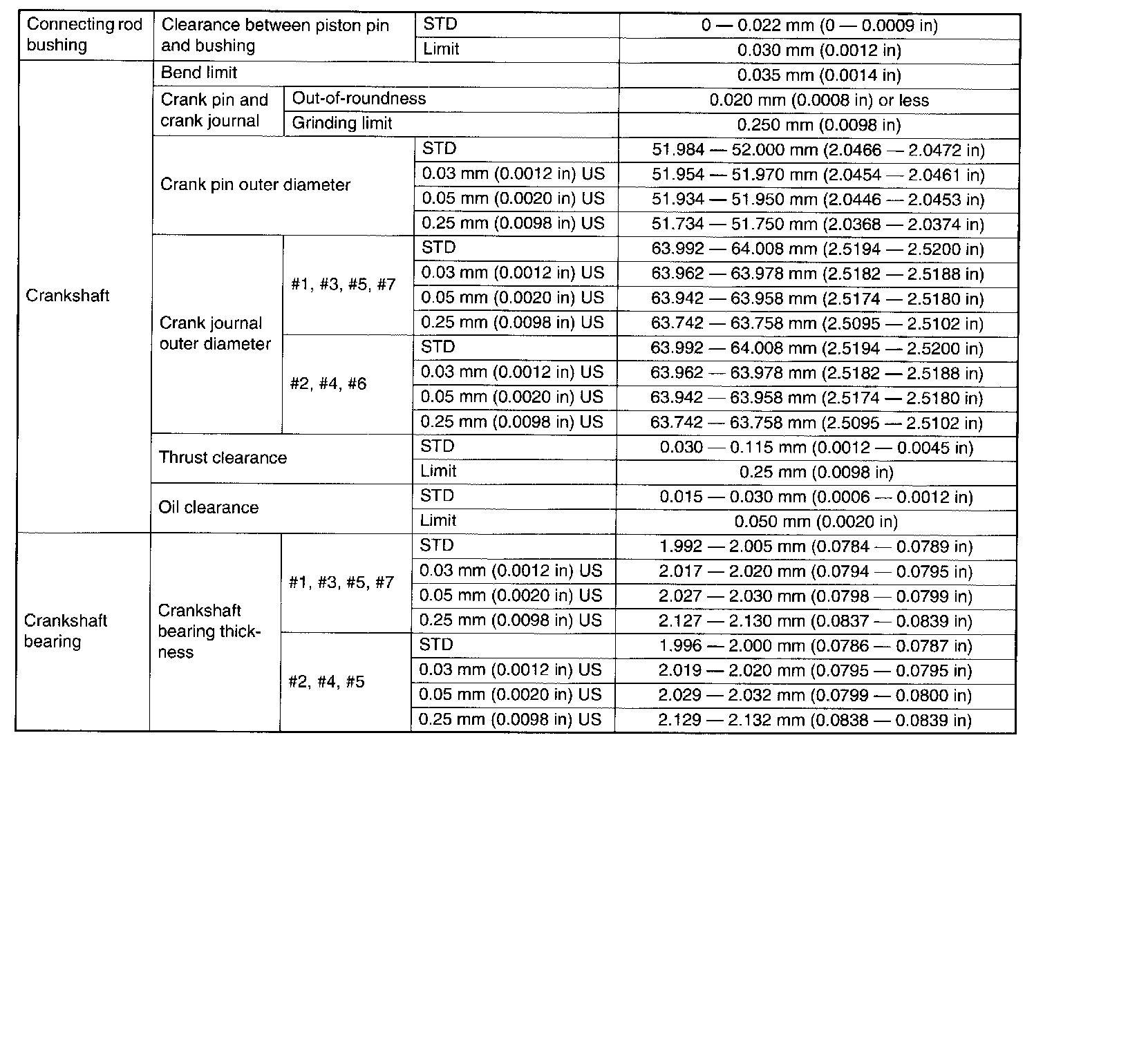

Crankshaft Main Bearing





NOTE: STD: Standard I.D.: Inner Diameter O.D.: Outer Diameter US: Undersize OS: Oversize

For specifications regarding cylinder block connecting bolts, refer to service procedure. Service and Repair
