Electronic Throttle Actuator Relay: Service and Repair
Electronic Control Throttle RelayREMOVAL 1.

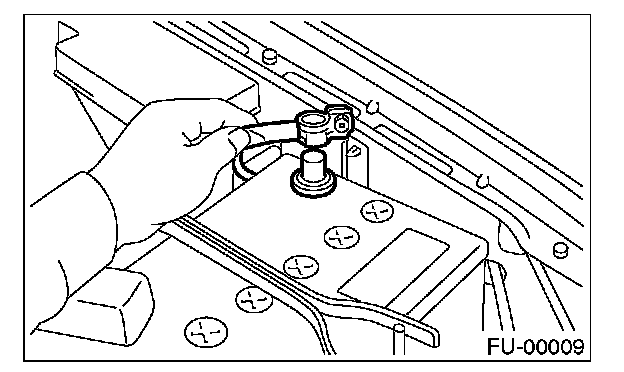

Disconnect ground cable from battery.
2.

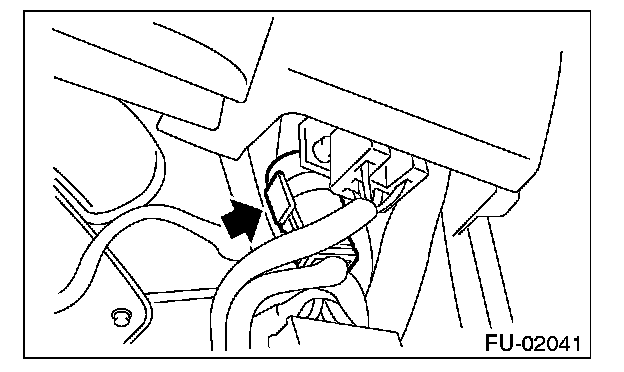

Disconnect connector form the passenger's side electronic control throttle
relay.
3.
Remove the electronic control throttle
relay from the bracket.
INSTALLATIONInstall in the reverse order of removal.
