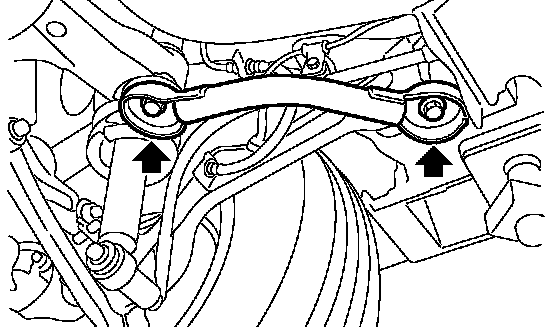

Support Sub Frame Front

Support Sub Frame Front

REMOVAL
1. Lift-up the vehicle, using support stand to support rear sub frame.

2. Remove support sub frame front.

INSTALLATION
1. Install in reverse order of removal.
Tightening torque:
Support sub frame front to rear arm bracket 125 Nm (12.8 kgf-cm, 92 ft. lbs.)
Support sub frame front to rear sub frame 175 Nm (17.8 kgf-cm, 129 ft. lbs.)

INSPECTION
Visually check support sub frame front for damage or bends.
