Power Mirror Switch: Service and Repair
Remote Control Mirror SwitchREMOVAL 1.
Remove power window main switch panel.
2.

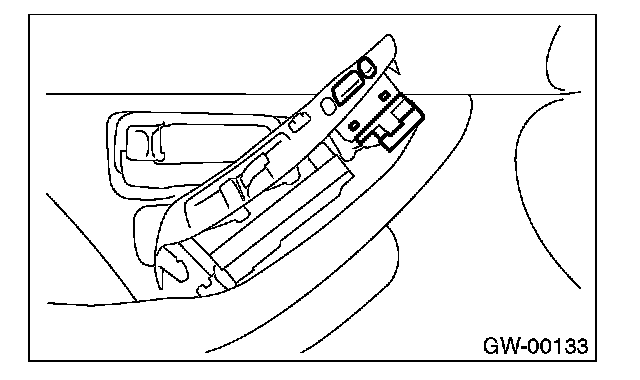

Remove four hook (A) to remove remote control mirror switch.

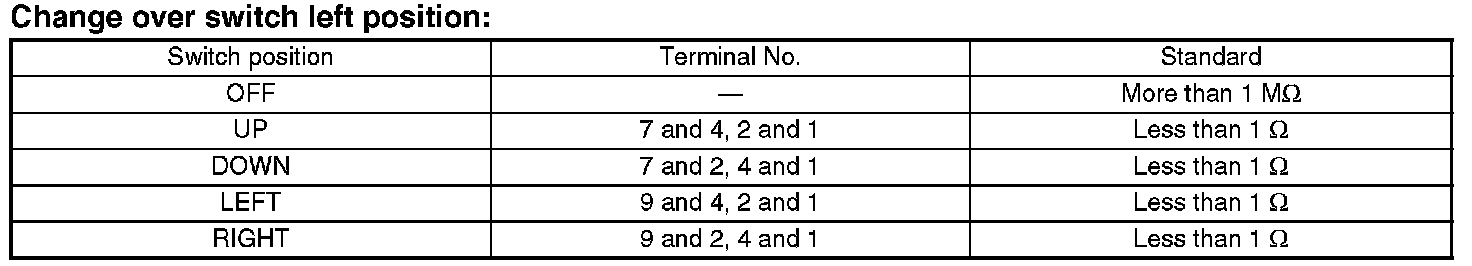

Change Over Switch Left Position:

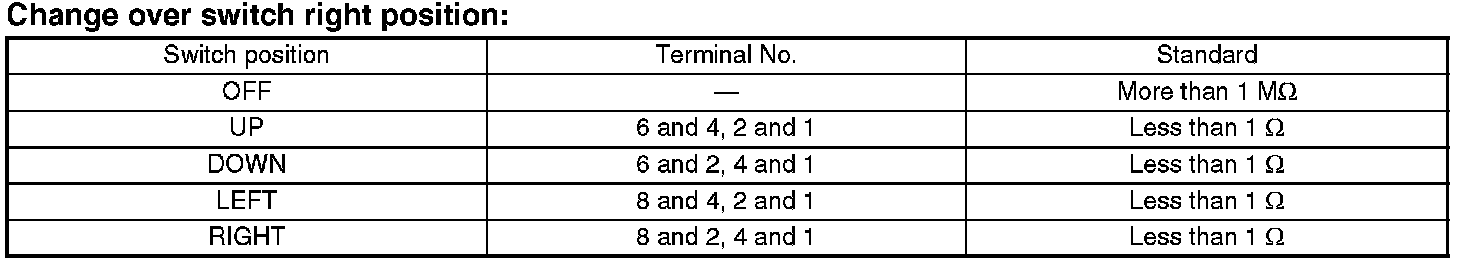

Change over switch left position: Change over switch right position: If defective, replace the switch.
INSTALLATIONInstall in the reverse order of removal.
