Outer Mirror Assembly

Outer Mirror Assembly

REMOVAL
1. Remove door trim.

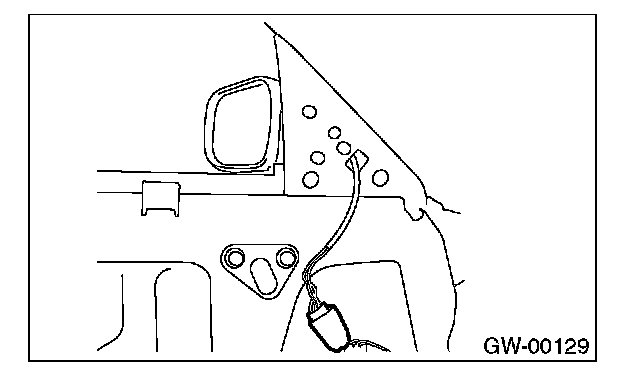

2. Pull off sealing cover to disconnect outer mirror harness connector.

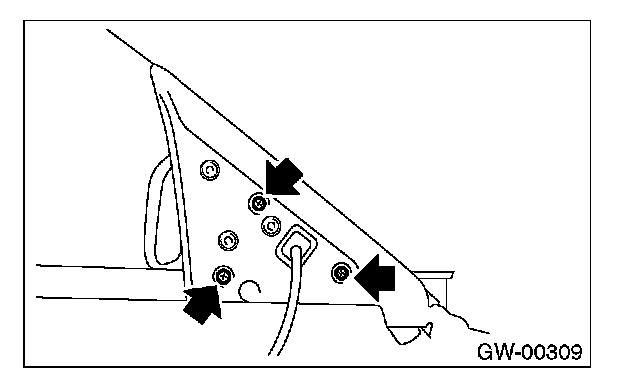

3. Remove screws to remove outer mirror assembly.

INSTALLATION
Install in the reverse order of removal.
