Timing Cover: Service and Repair
Timing Belt CoverREMOVAL 1.
Remove V-belt.
2.
Remove crankshaft pulley.
3.

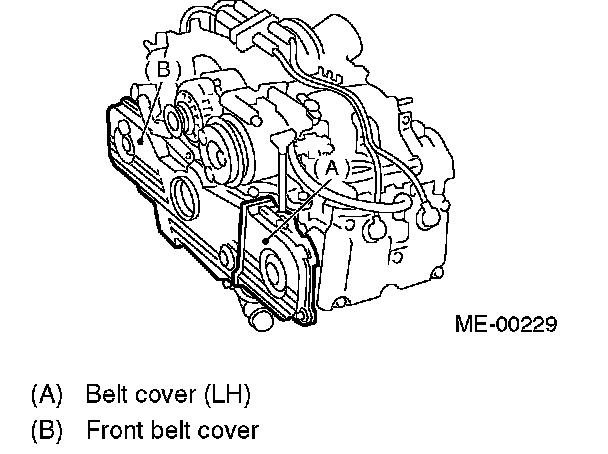

Remove belt cover (LH).
4.
Remove front belt cover.
INSTALLATION 1.
Install front belt cover.

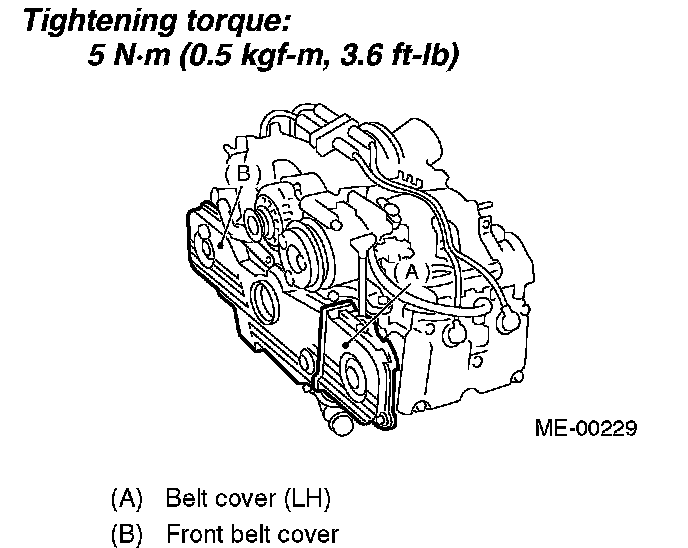

Tightening torque:
5 Nm (0.5 kgf-m, 3.6 ft. lbs.) 2.
Install belt cover (LH).
Tightening torque:
5 Nm (0.5 kgf-m, 3.6 ft. lbs.) 3.
Install crankshaft pulley.
4.
Install V-belt.
INSPECTION Make sure the cover is not damaged.
