Headlamp: Service and Repair

Headlight Assembly

REMOVAL
1. Disconnect ground cable from battery.

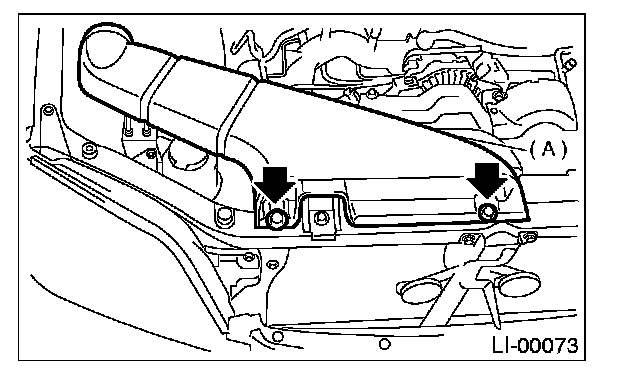

2. Remove duct (A) (when right side headlight is removed).
3. Disconnect headlight harness connector.

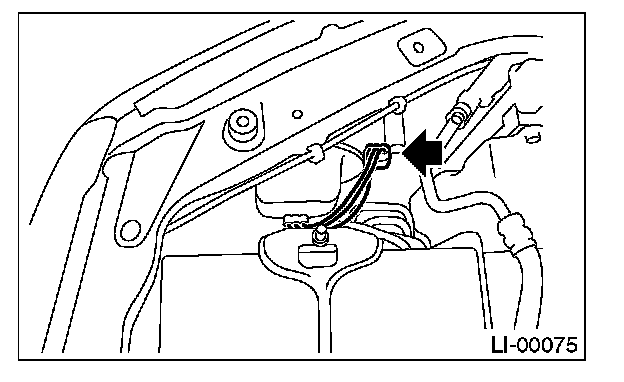

Single-bulb type

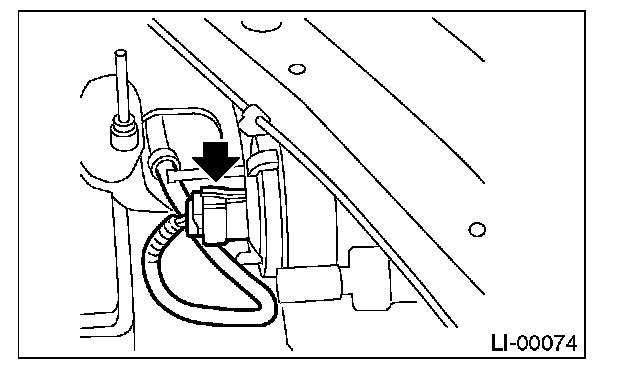

Dual-bulb type

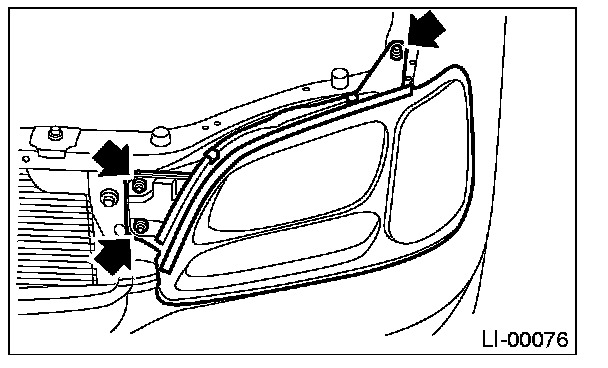

4. Remove three bolts and disconnect connectors, and then detach headlight assembly.

INSTALLATION
Install in the reverse order of removal.
