Evaporative Emissions System: Service and Repair

Fuel Delivery, Return and Evaporation Lines

REMOVAL
1. Set vehicle on the lift.
2. Release fuel pressure.
3. Open fuel filler flap lid and remove fuel filler cap.
4. Remove fuel tank.
5. Remove fuel filler pipe.
6. Remove floor mat.




7. Remove fuel delivery pipes and hoses, fuel return pipes and hoses, evaporation pipes and hoses.

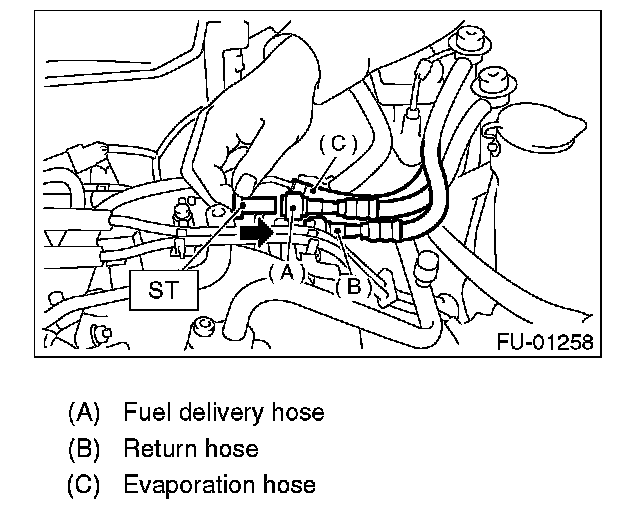

8. In engine room, detach fuel delivery hoses, return hoses and evaporation hose.
1. Separate quick connector of fuel delivery line and return line by pushing an ST in the direction of the arrow.




2. Remove clips, and then separate evaporation hose from pipe.

9. Separate quick connector on fuel delivery and return line.
1. Clean pipe and connector, if they are covered with dust.

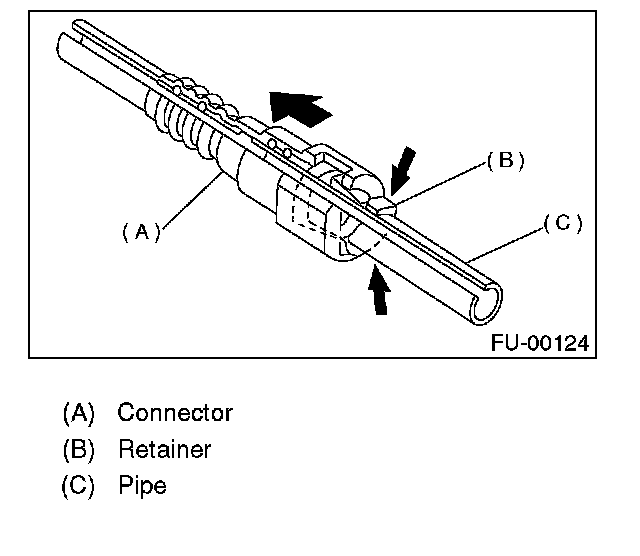

2. Hold connector (A) and push retainer (B) down.




3. Pull out connector (A) from retainer (B).

CAUTION: Replace retainer with new ones except engine room.

INSTALLATION




1. Connect quick connector on fuel delivery and return line.

CAUTION:
- Always use a new retainer except engine room.

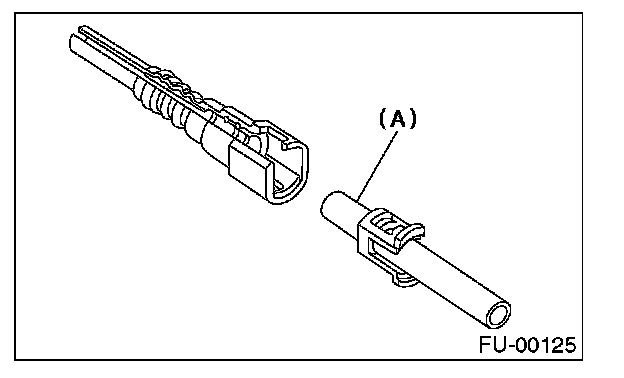

- Make sure that the connected portion is not damaged or has dust. If necessary, clean seal surface (A) of pipe.

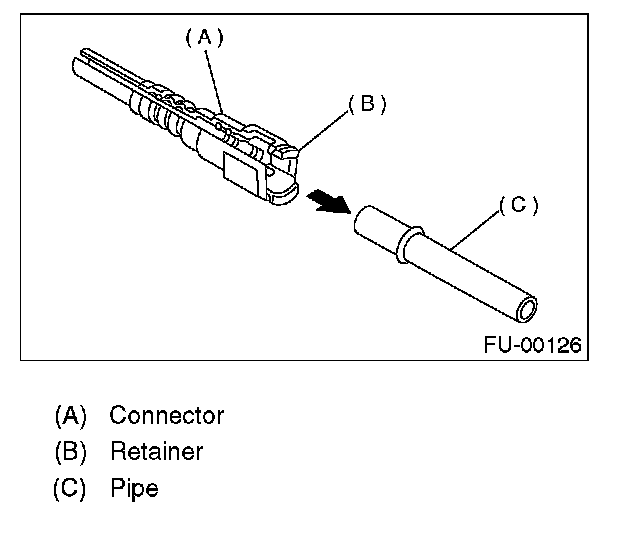

1. Set new retainer (B) to connector (A).




2. Push pipe into connector completely.

NOTE: At this time, two clicking sounds are heard.




CAUTION:

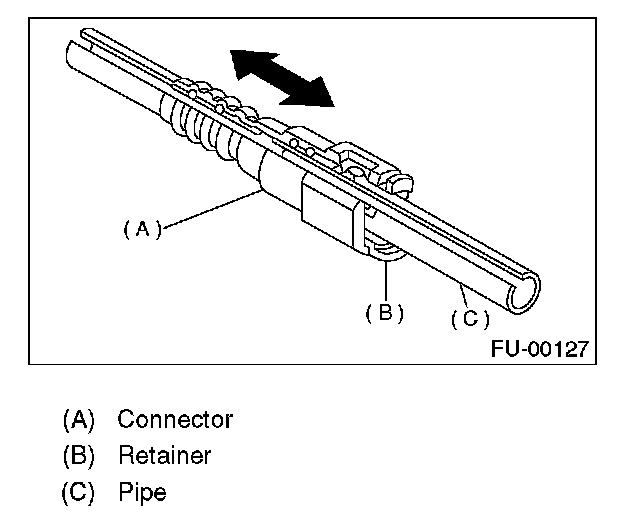

- Pull the connector to ensure it is connected securely.
- Ensure the two retainer pawls are engaged in their mating positions in the connector.
- Be sure to inspect hoses and their connections for any leakage of fuel.

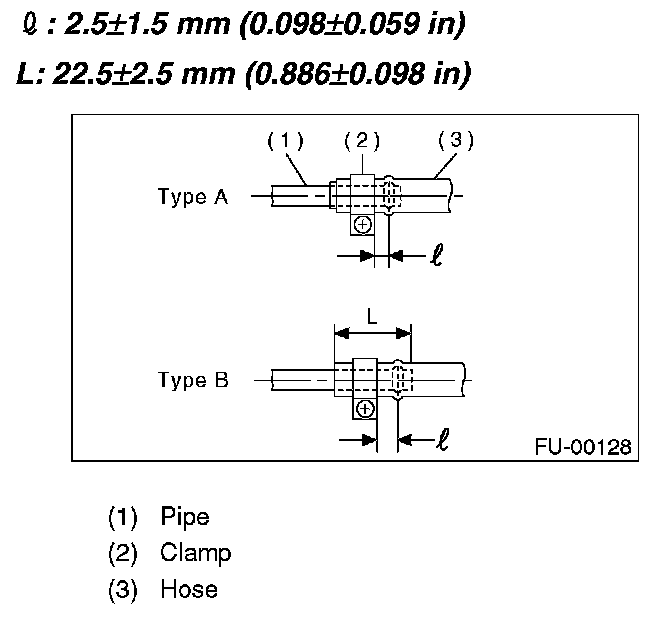

2. Connect fuel delivery hose to pipe with an overlap of 20 to 25 mm (0.79 to 0.98 in).
Type A: When insertion length is specified.
Type B: When insertion length is not specified.

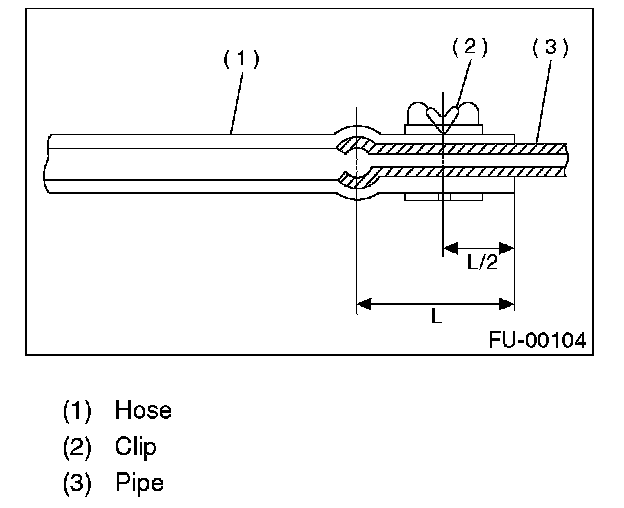

3. Connect evaporation hose to pipe by approx. 15 mm (0.59 in) from hose end.

L = 17.5 ±2.5 mm (0.689 ±0.098 in)

CAUTION: Be sure to inspect hoses and their connections for any leakage of fuel.
