BASIC INSPECTION1. VOLTAGE MEASUREMENT
1. Using a voltmeter, connect the negative lead to a good ground point or negative battery terminal and the positive lead to the connector or component terminal.

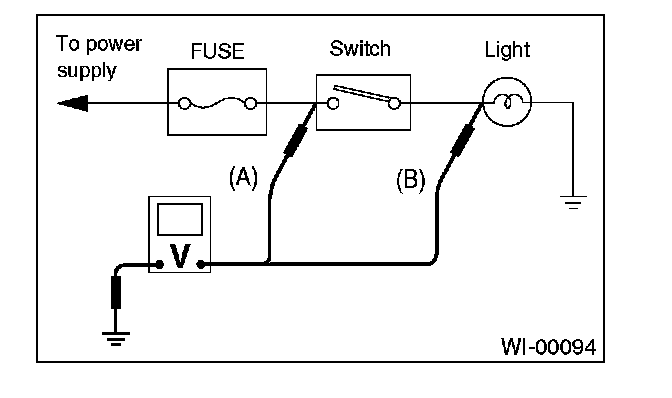

2. Contact the positive lead of the voltmeter on connector (A). The voltmeter will indicate a voltage.
3. Shift the positive lead to connector (B). The voltmeter will indicate no voltage.
4. With test set-up held as it is, turn the switch ON. The voltmeter will indicate a voltage and, at the same time, the light will come on.
5 The circuit is in good order. If a problem such as a lamp failing to light occurs, use the procedures outlined above to track down malfunction.
2. CIRCUIT CONTINUITY CHECKS
1. Disconnect the battery cable or connector so there is no voltage between check points. Contact the two leads of an ohmmeter to each of the check points. If the circuit has diodes, reverse the two leads and check again.

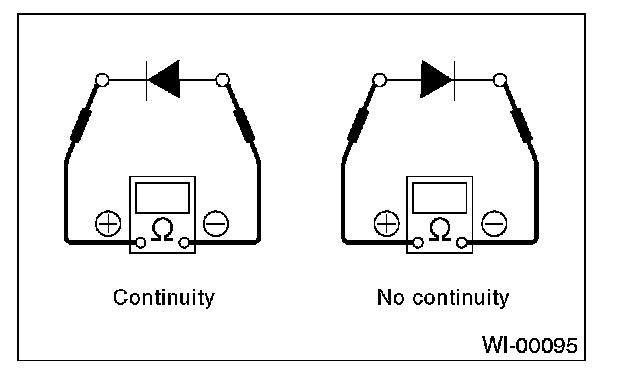

2. Use an ohmmeter to check for the diode continuity. When contacting the negative lead to diode positive side and positive lead to negative side, there should be continuity. When contacting the two leads in reverse, there should be no continuity.

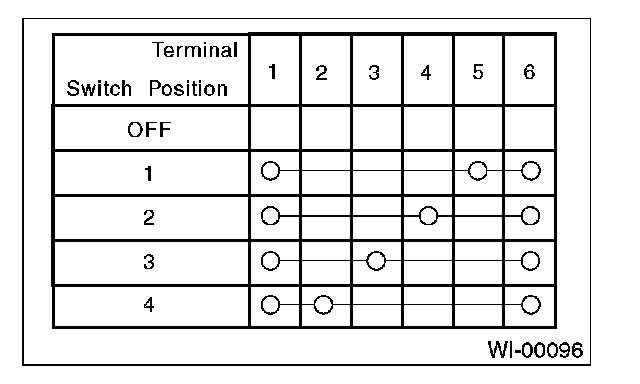

3. Symbol "O--O" indicates that continuity exists between two points or terminals. For example, when a switch position is "3", continuity exists among terminals 1, 3 and 6, as shown in table.
3. HOW TO DETERMINE AN OPEN CIRCUIT
1. Voltmeter Method:

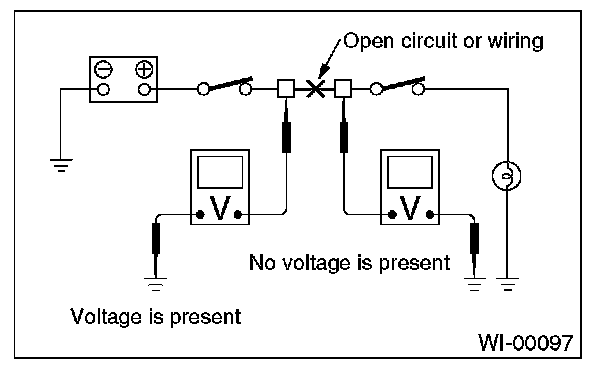

An open circuit is determined by measuring the voltage between respective connectors and ground using a voltmeter, starting with the connector closest to power supply. The power supply must be turned ON so that current flows in the circuit. If voltage is not present between a particular connector and ground, the circuit between that connector and previous connector is open.
2. Ohmmeter method:

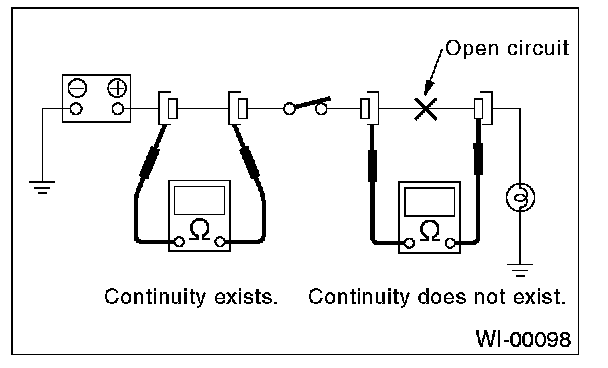

Disconnect all connectors affected, and check the continuity in wiring between adjacent connectors. When the ohmmeter indicates "infinite", the wiring is open.
4. HOW TO DETERMINE A SHORT CIRCUIT
1. Test lamp method:

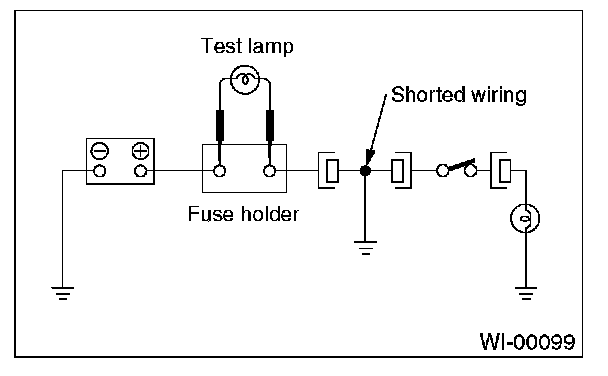

Connect a test lamp (rated at approx. 3 watts) in place of the blown fuse and allow current to flow through the circuit. Disconnect one connector at a time from the circuit, starting with the one located farthest from power supply. If the test lamp goes out when a connector is disconnected, the wiring between that connection and next connector (farther from the power supply) is shorted.
2. Ohmmeter method:

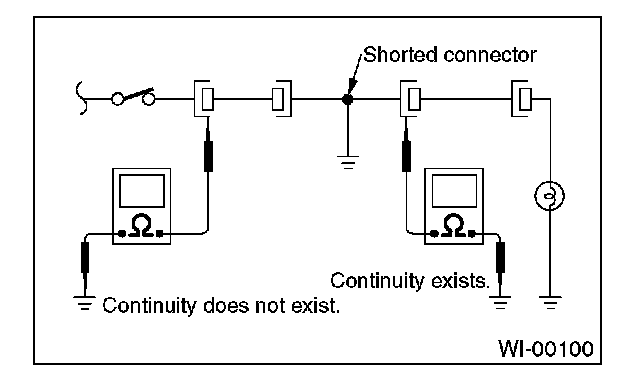

Disconnect all affected connectors, and check the continuity between each connector and ground. When the ohmmeter indicates continuity between a particular connector and ground, that the connector is shorted.
