Removal and Installation
StarterREMOVAL 1.

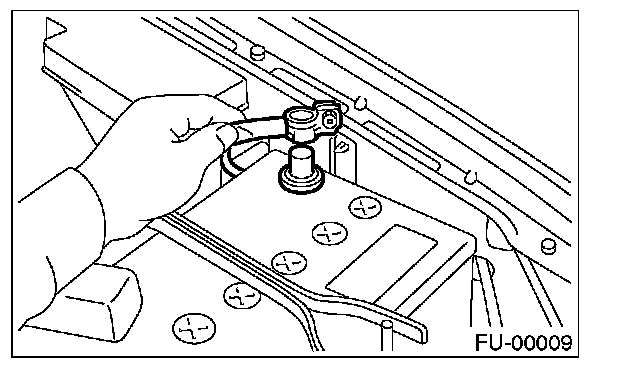

Disconnect ground cable from battery.
2.
Remove air cleaner case. (Non-Turbo model)
3.
Remove intercooler. (Turbo model)
4.
Remove air cleaner case stay.
-

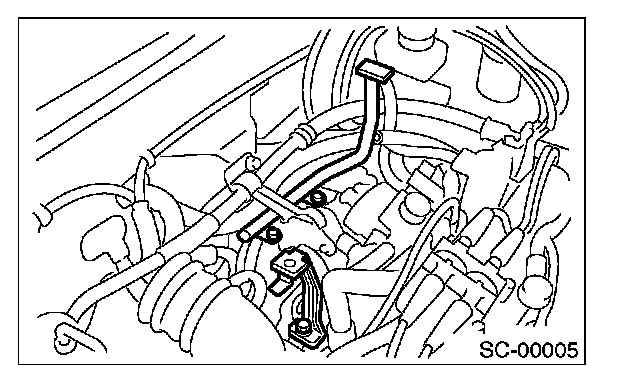

MT vehicles
-

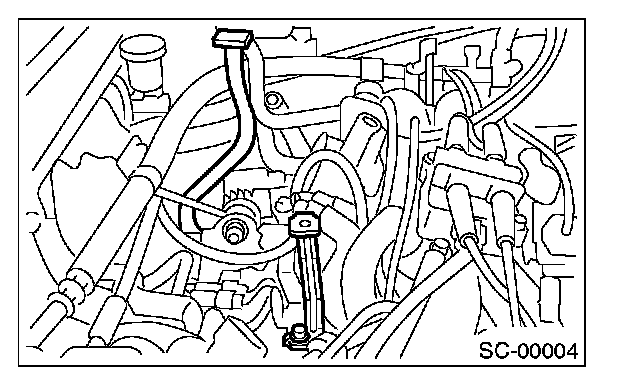

AT vehicles
5.

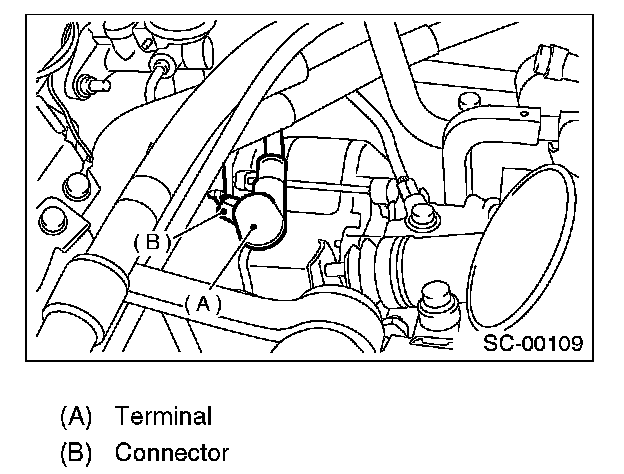

Disconnect connector and terminal from starter.
6.
Remove starter from transmission.
INSTALLATIONInstall in the reverse order of removal.
Tightening torque:
50 N.m (5.1 kgf.m, 37 ft-lb)
