Rear Door Window Regulator: Service and Repair

Rear Regulator and Motor Assembly

REMOVAL
1. Remove door trim.
2. Remove sealing cover.
3. Remove door glass.

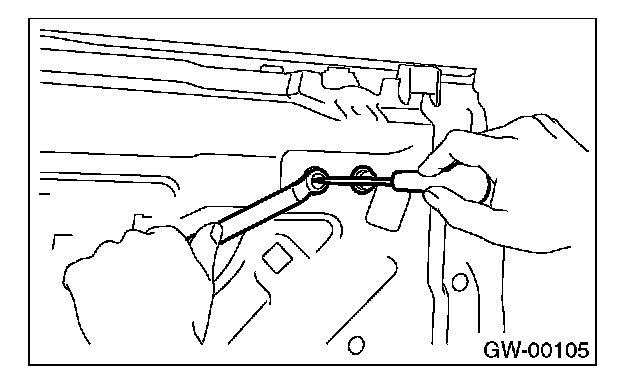

4. Secure bolts using screwdriver to remove front sash adjusting nut.
5. Remove front sash.
6. Disconnect electrical connector regulator motor.




7. Loosen four bolts and two nuts to remove regulator assembly.

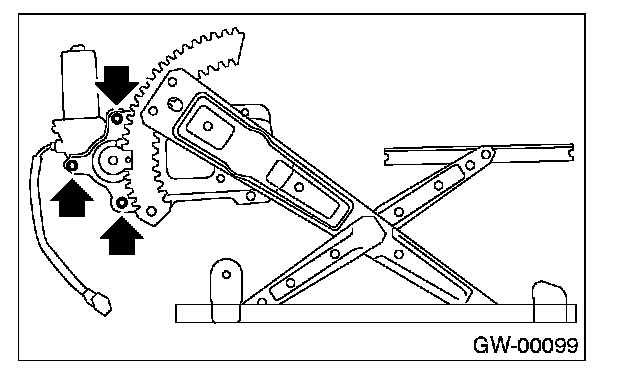

8. Loosen screws to remove motor assembly.

INSTALLATION
1. Install in the reverse order of removal.
2. Adjust rear door glass.

Tightening torque: Refer to COMPONENT in General Description.
