Traction Control Switch: Service and Repair
VDC OFF SwitchREMOVAL 1)

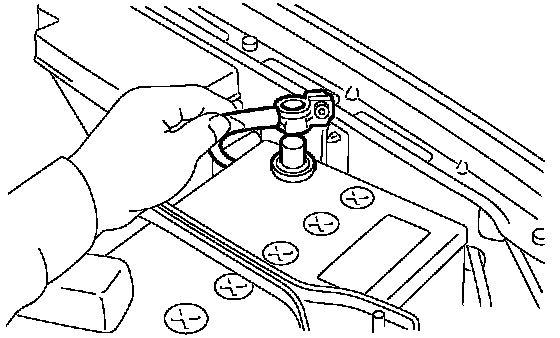

Disconnect the ground cable from battery.
2)
Remove the instrument panel lower cover.
3)

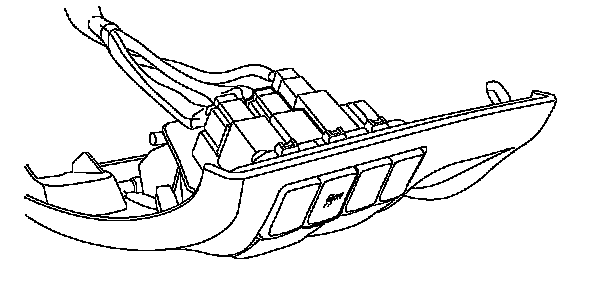

Remove the VDC OFF switch by removing and pushing the VDC OFF switch connector outward.
INSTALLATION Install in the reverse order of removal.

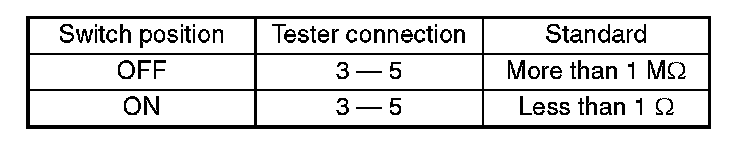

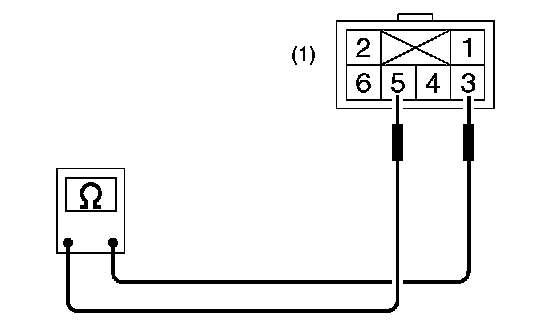

INSPECTION Measure the resistance between VDC OFF switch terminals. If NO, replace the VDC OFF switch.
