Front

Front Brake Pad

INSPECTION

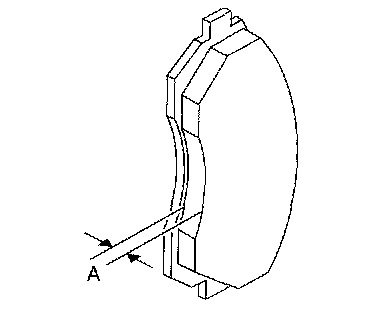

Check the pad thickness A.

NOTE:
^ Always replace the pads for both right and left wheels at the same time.
^ Also replace the pad clips if they are twisted or worn.
^ A wear indicator is provided on the inner disc brake pad. If the pad wears down to such an extent that the end of wear indicator contacts disc rotor, a squeaking sound is produced as the wheel rotates. If this sound is heard, replace the pad.
^ Replace the pad if there is oil or grease on it.
