Fuel Injector Circuit
FUEL INJECTOR CIRCUITCAUTION: -
Check or repair only faulty parts.
-
After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

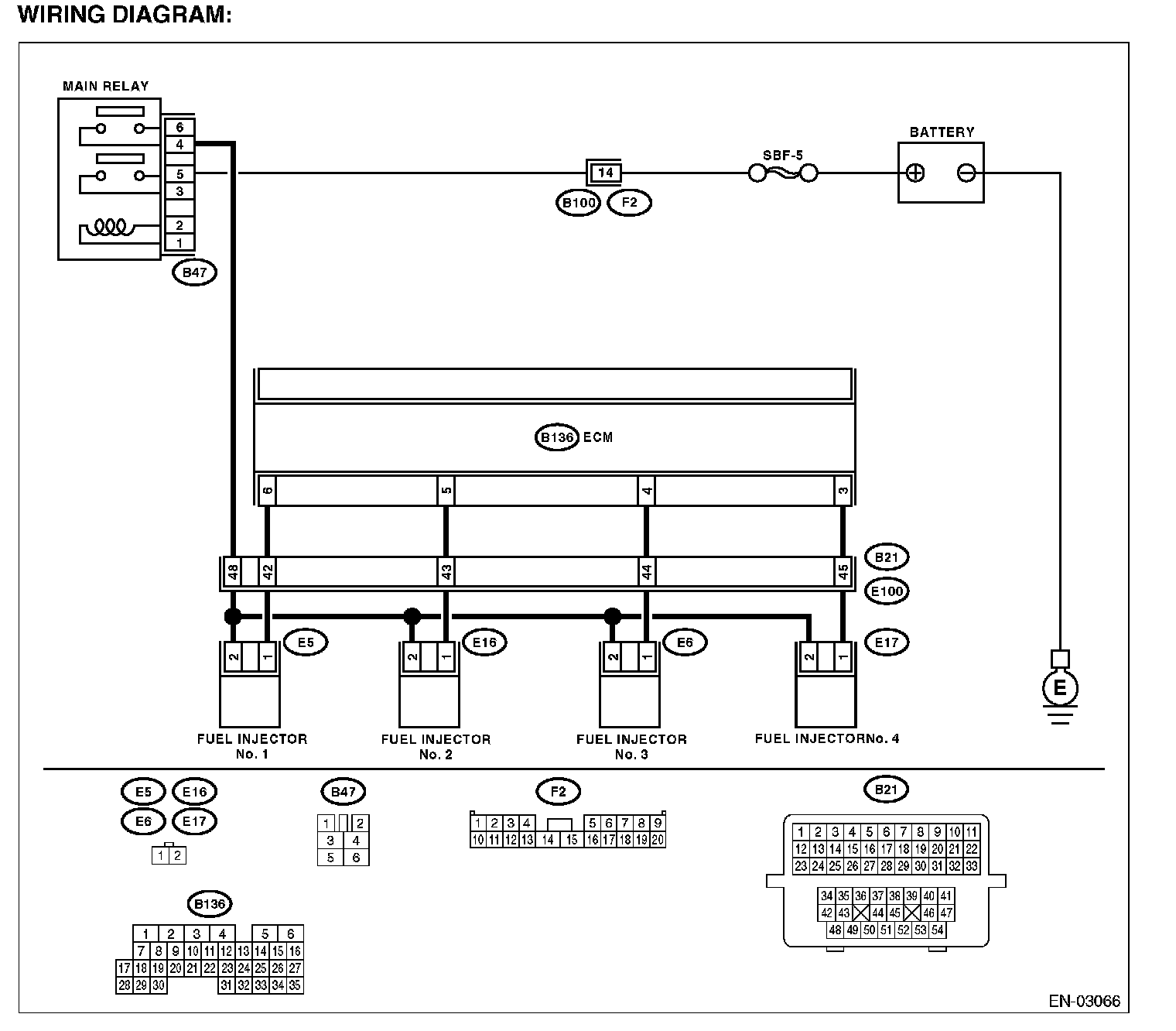

Clearing Diagnostic Trouble CodesDiagnostic Trouble Code DescriptionsWiring Diagram:

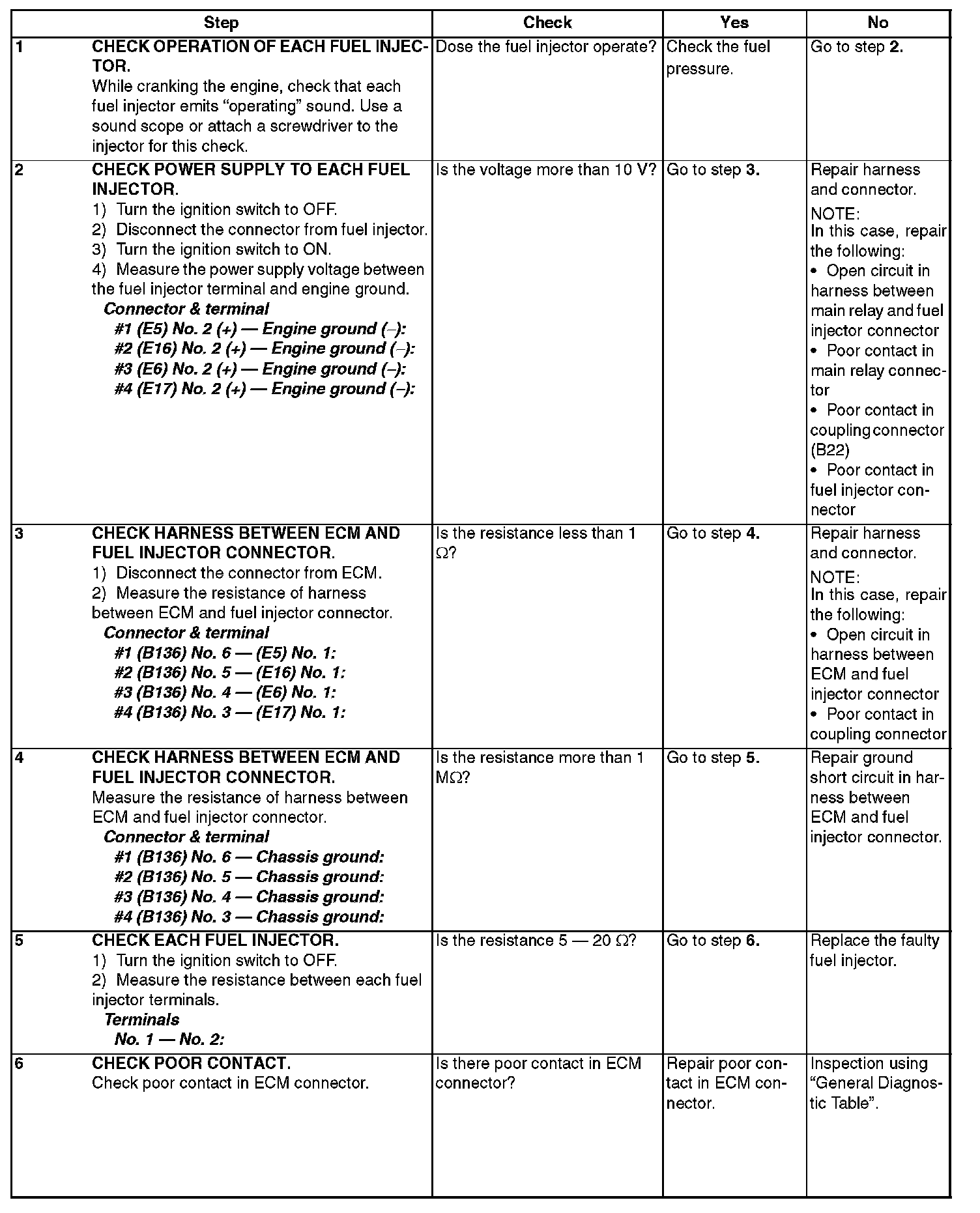

Step 1 - 6:
