Transfer Clutch Pressure Test

INSPECTION

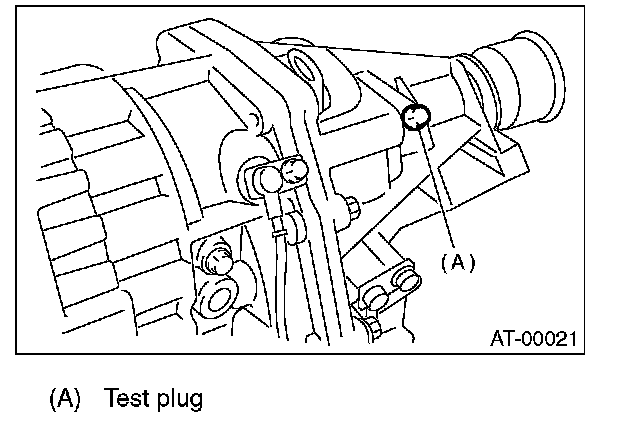

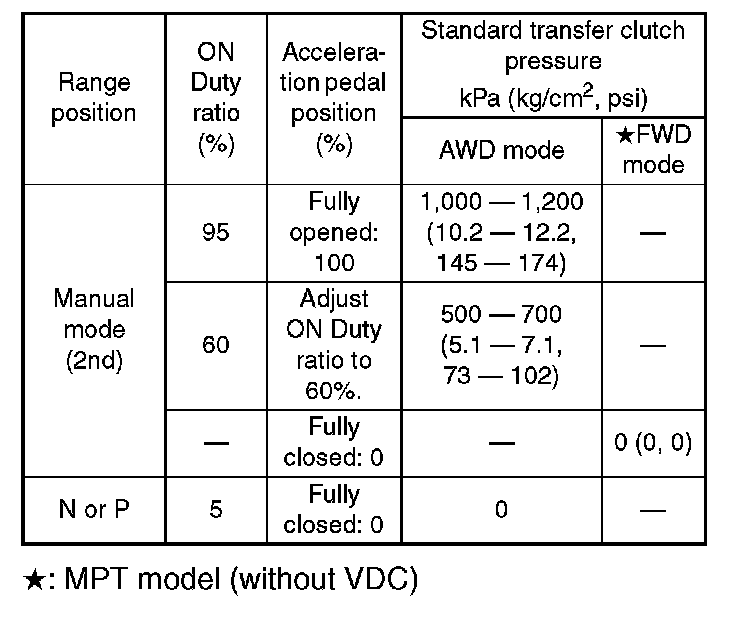

Check the transfer clutch pressure in accordance with the following chart in the same manner as with line pressure.
ST 498897700 OIL PRESSURE ADAPTER SET
ST 498575400 OIL PRESSURE GAUGE ASSY

NOTE:





^ Before setting in FWD mode, install the spare fuse on FWD mode switch. (MPT model (without VDC))





^ If no oil pressure is produced or if it does not change in AWD mode, the control valve body may be malfunctioning. If oil pressure is produced in FWD mode, the same problem as AWD mode occurs.
