Case: Service and Repair
REMOVAL 1.
Remove the air intake chamber. (Non-turbo model)
2.
Remove intercooler. (Turbo model)
3.
Disconnect the air breather hoses.
^

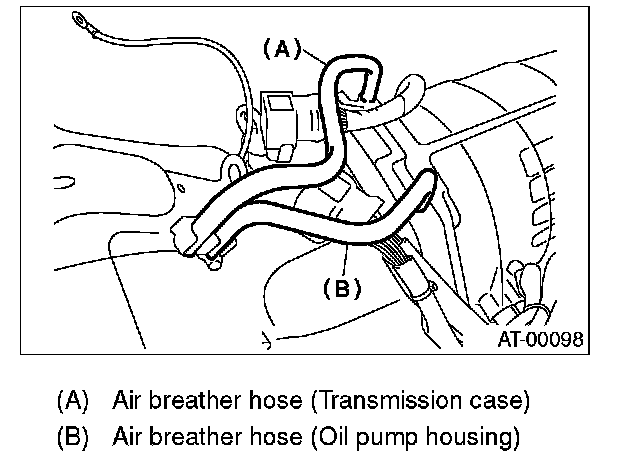

Non-turbo model
^

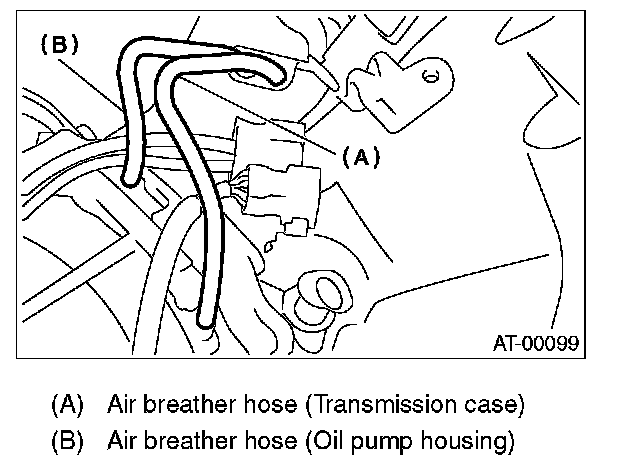

Turbo model
INSTALLATION 1.
Install air breather hoses.
^

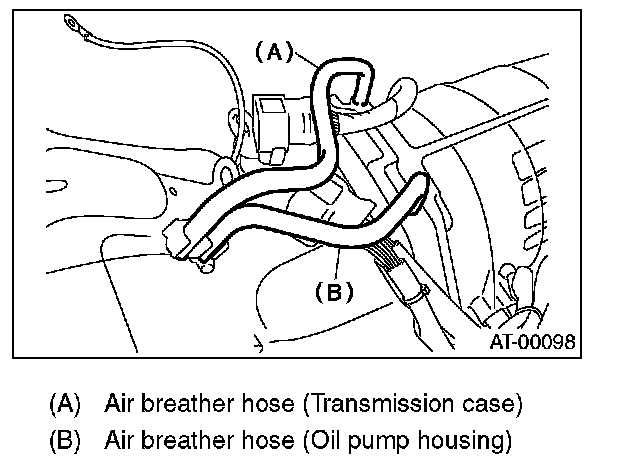

Non-turbo model
^

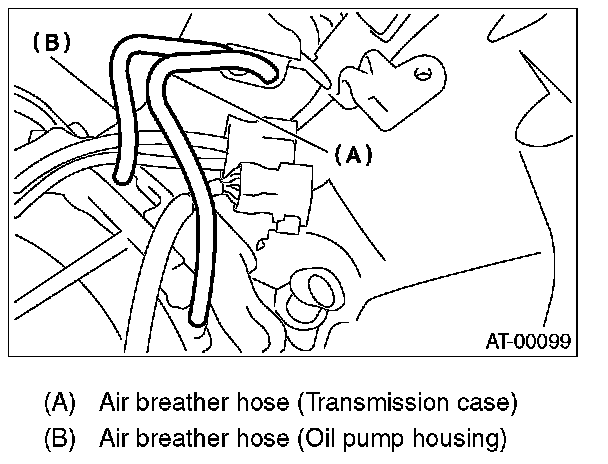

Turbo model
2.
Install the air intake chamber. (Non-turbo model)
3.
Install intercooler. (Turbo model)
INSPECTION Make sure the hose is not cracked or clogged.
