Computers and Control Systems: Locations

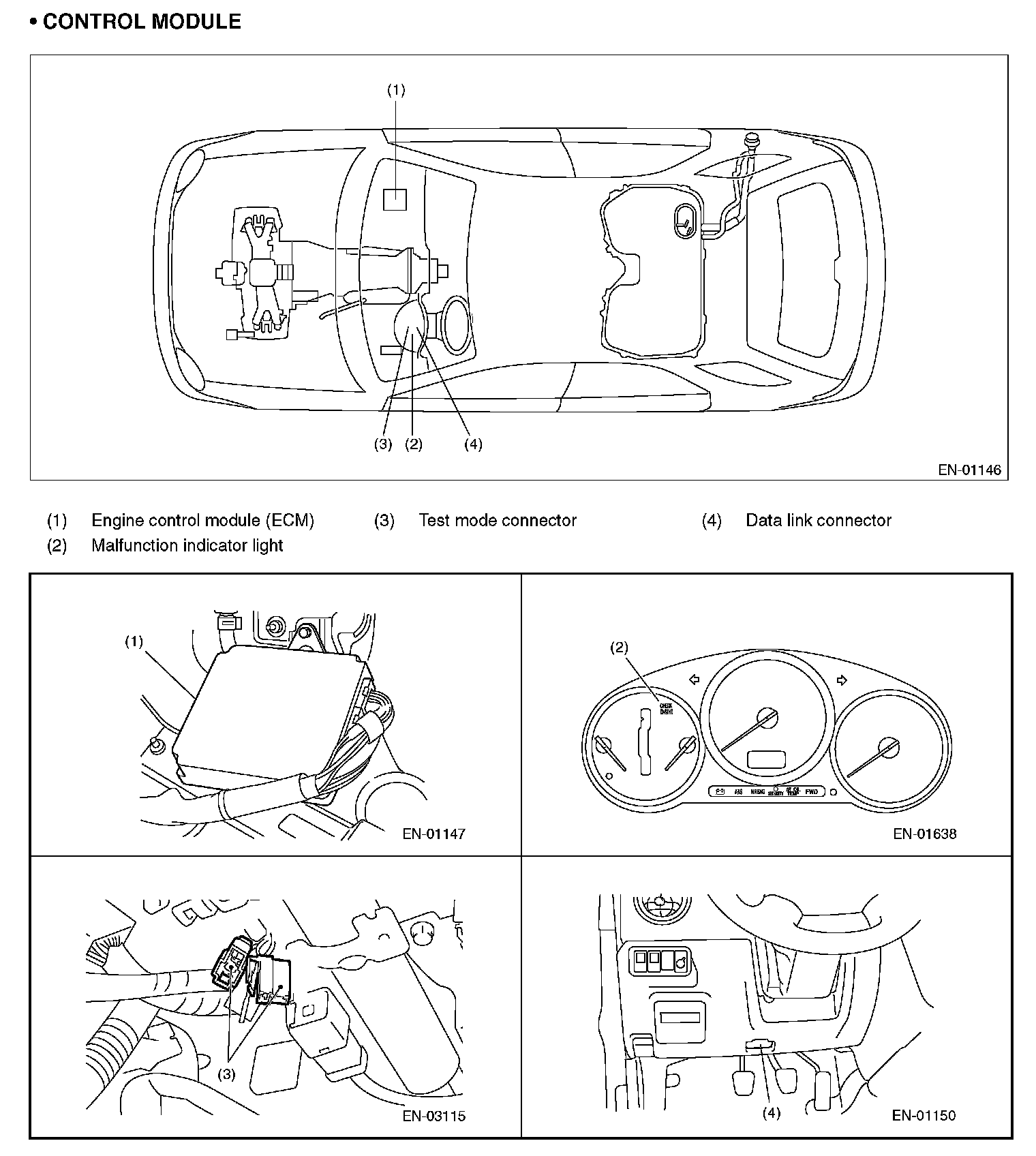

CONTROL MODULE

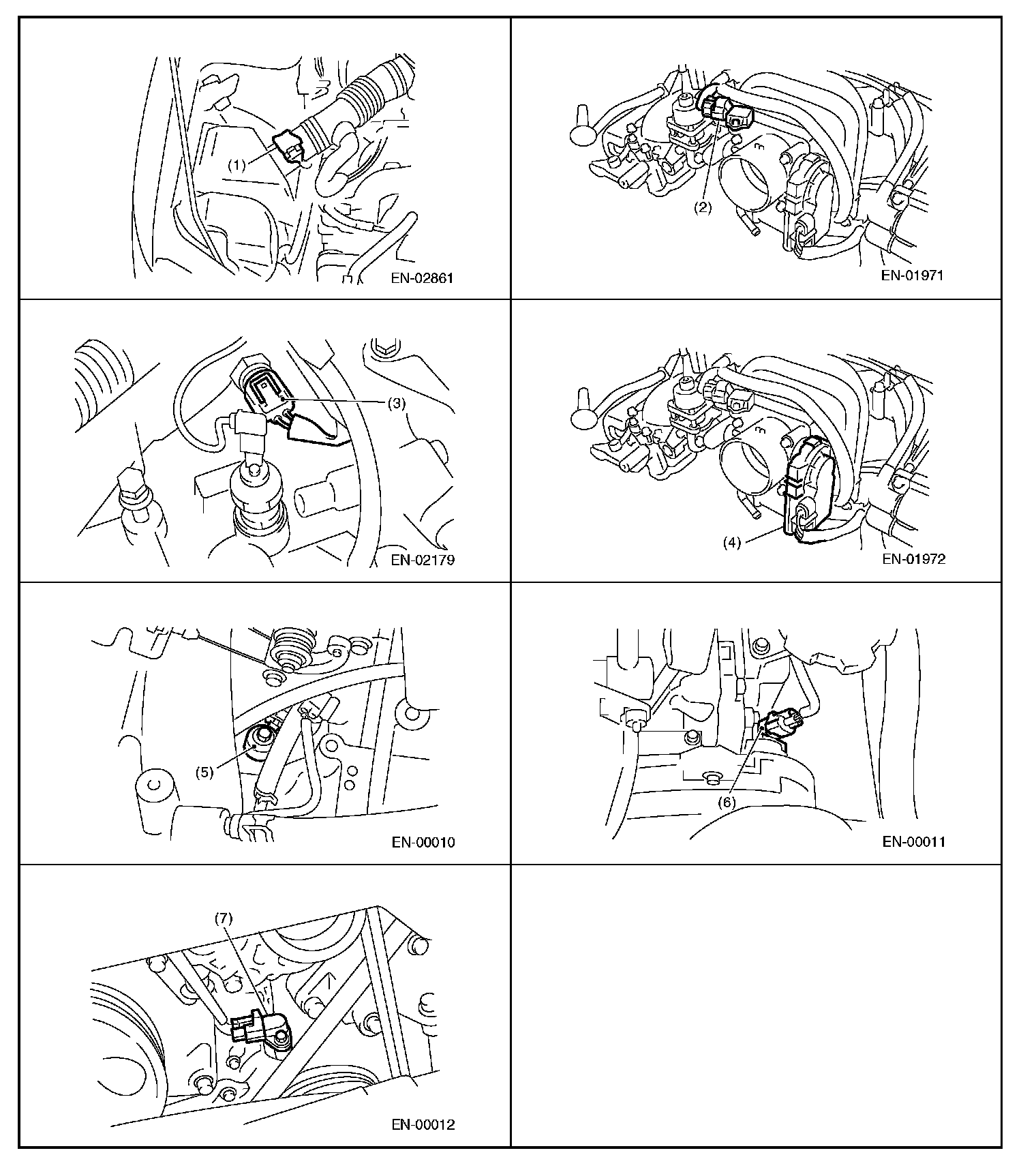

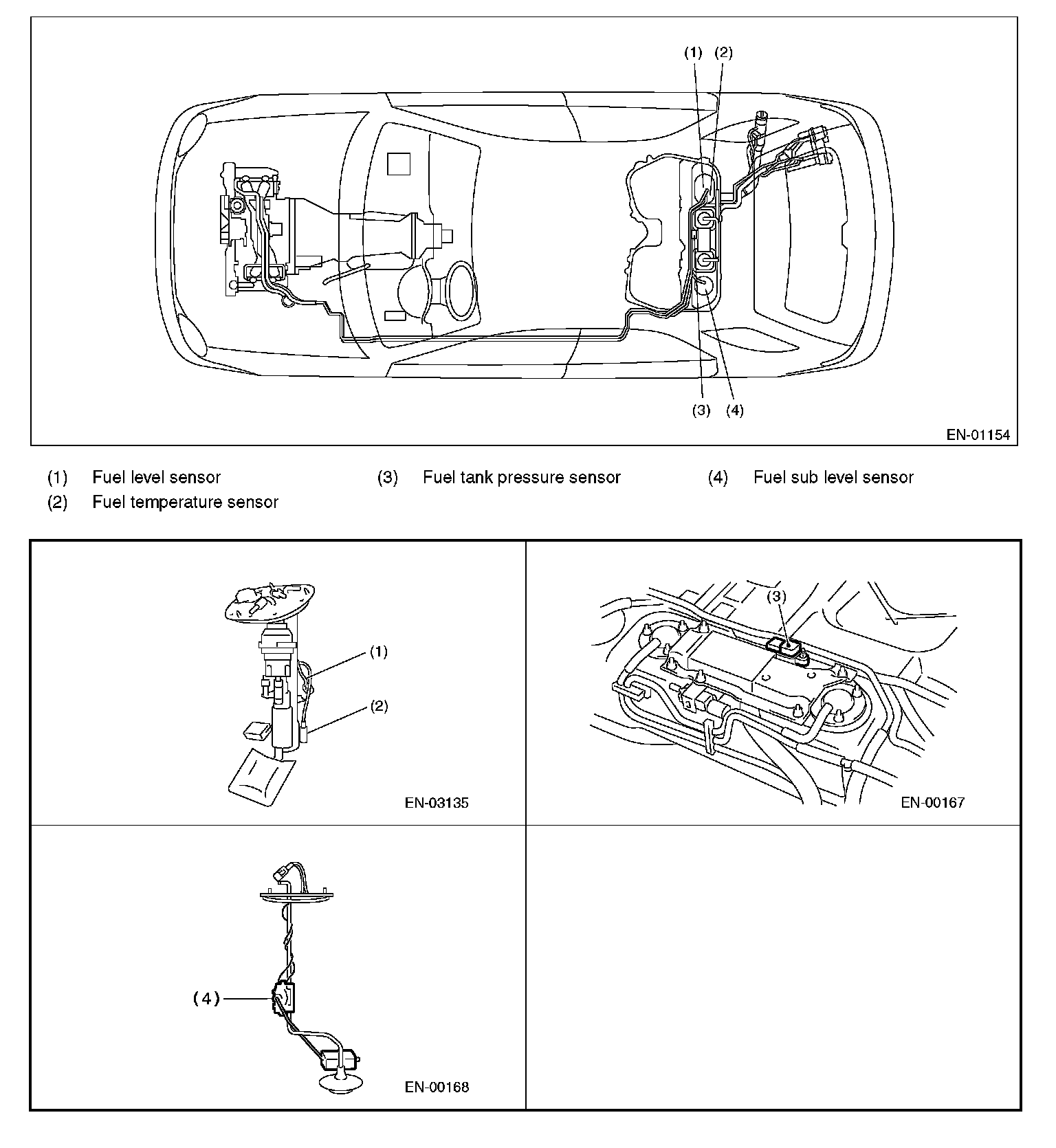

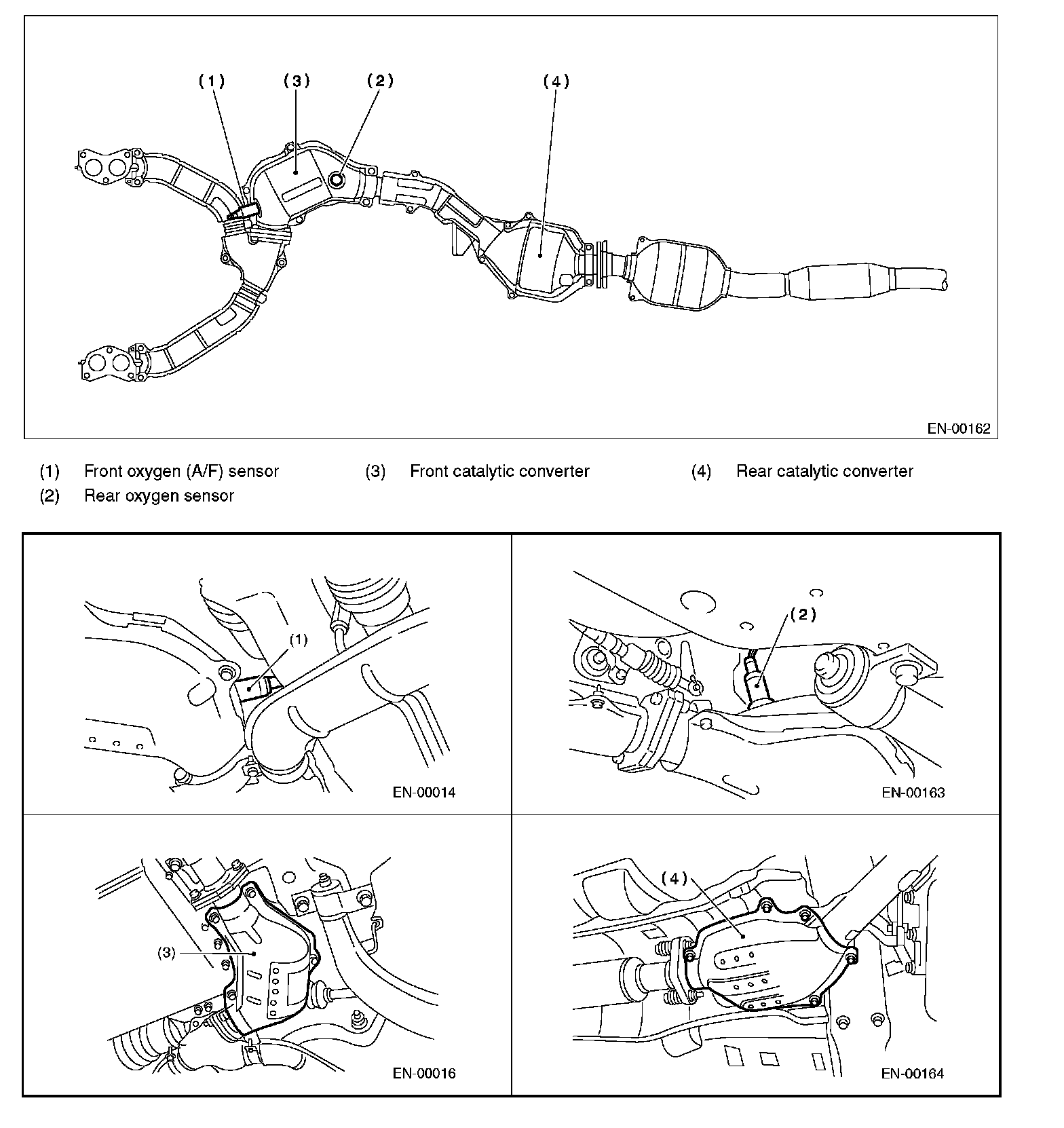

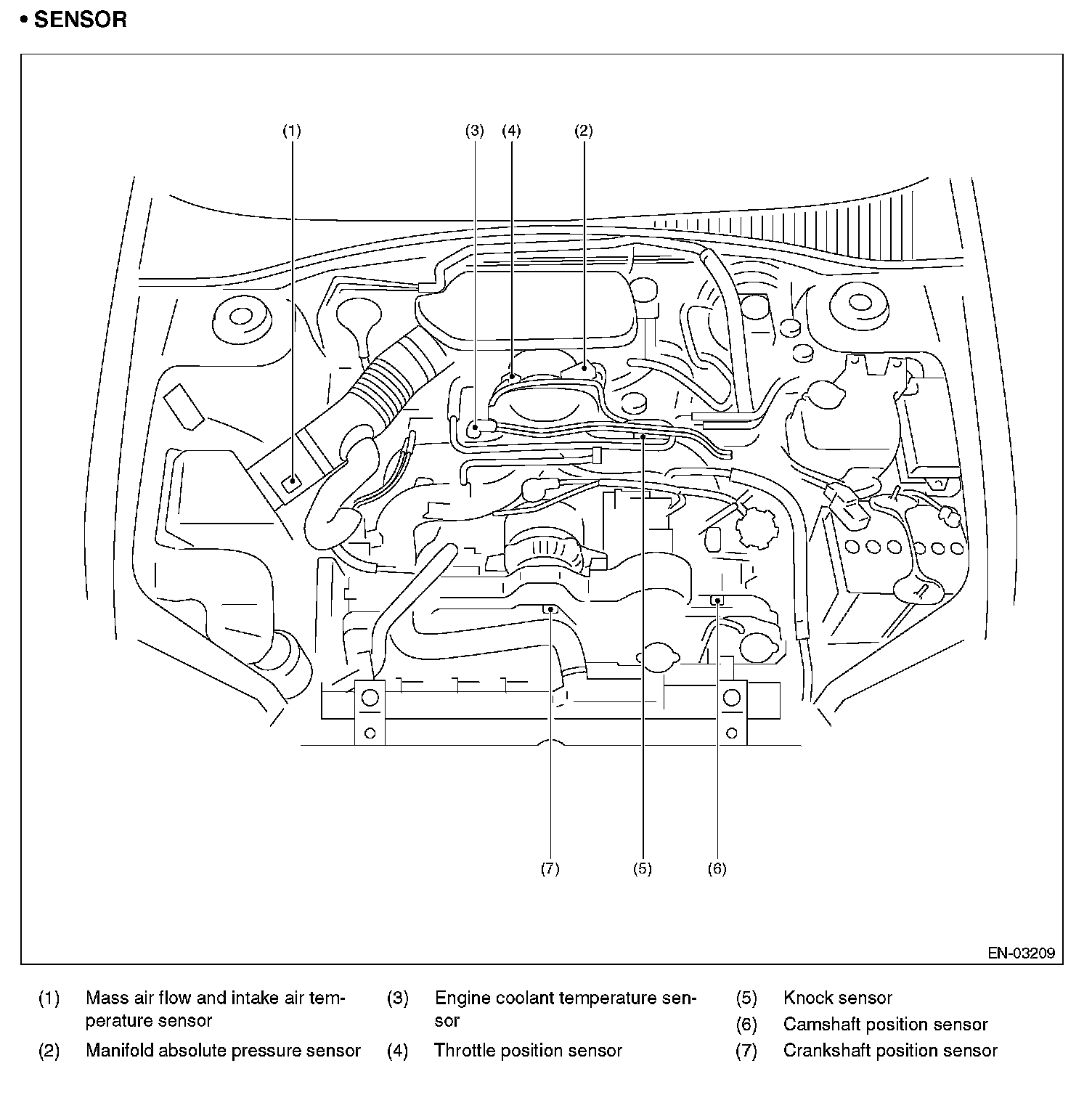

SENSOR

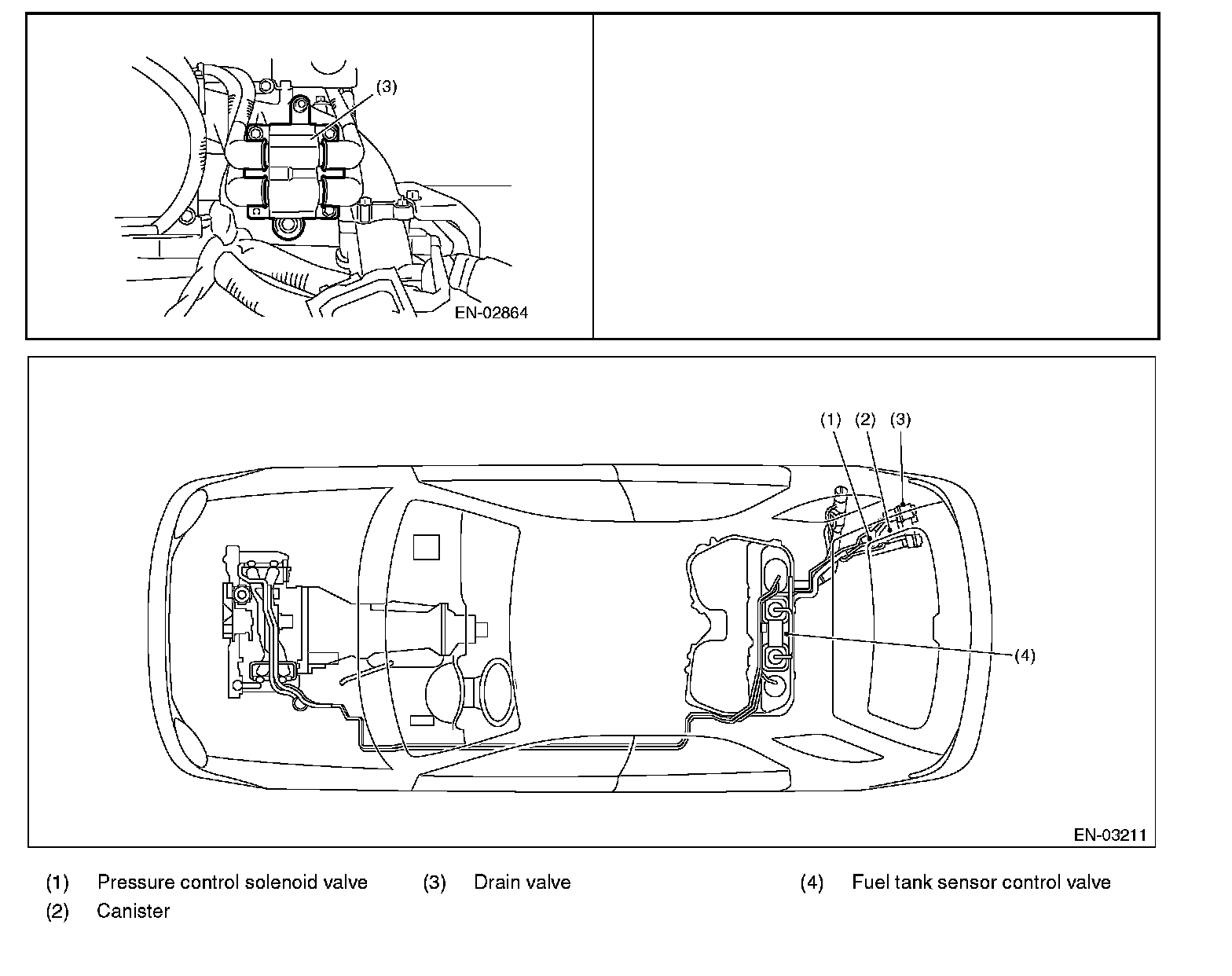

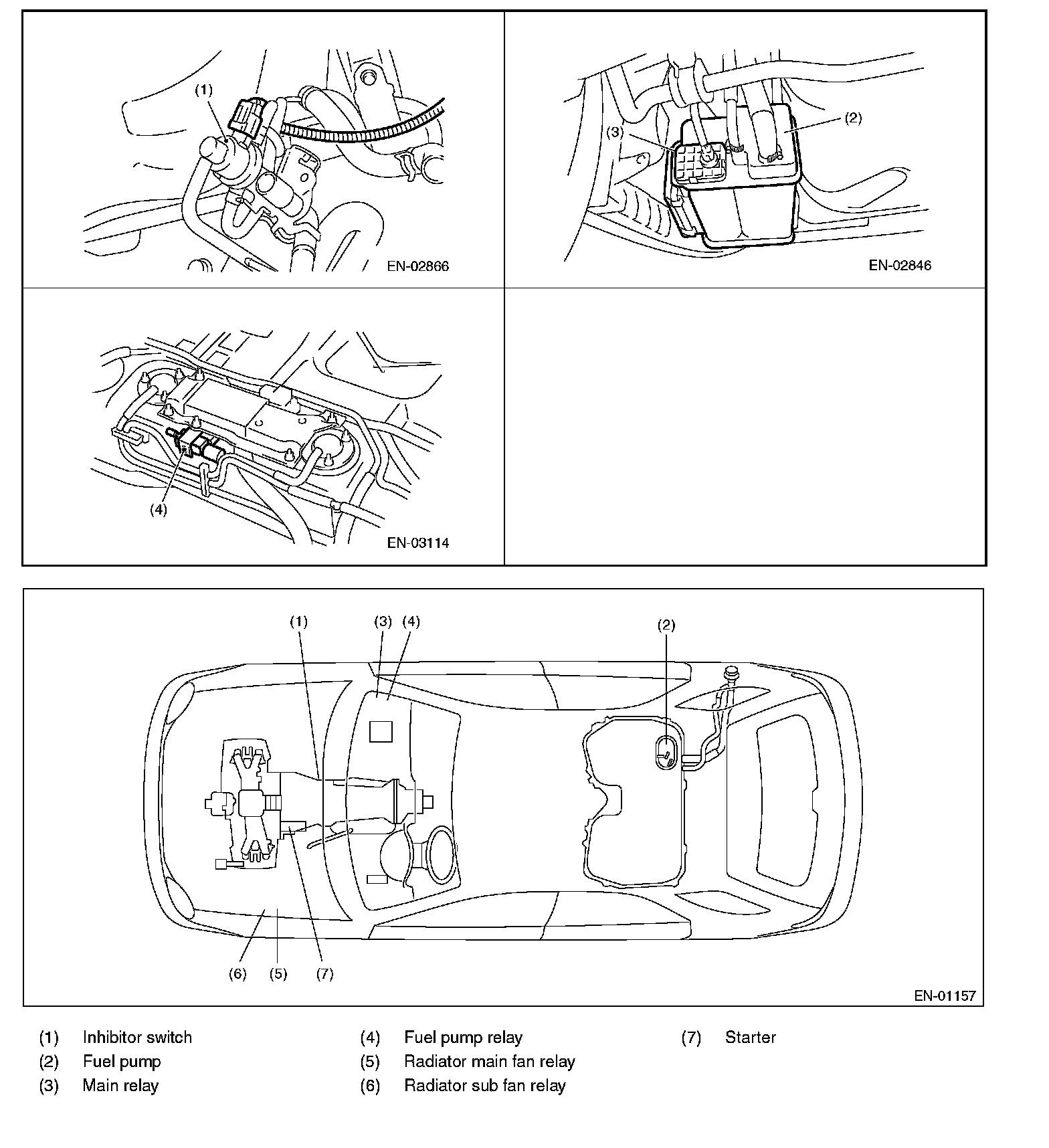

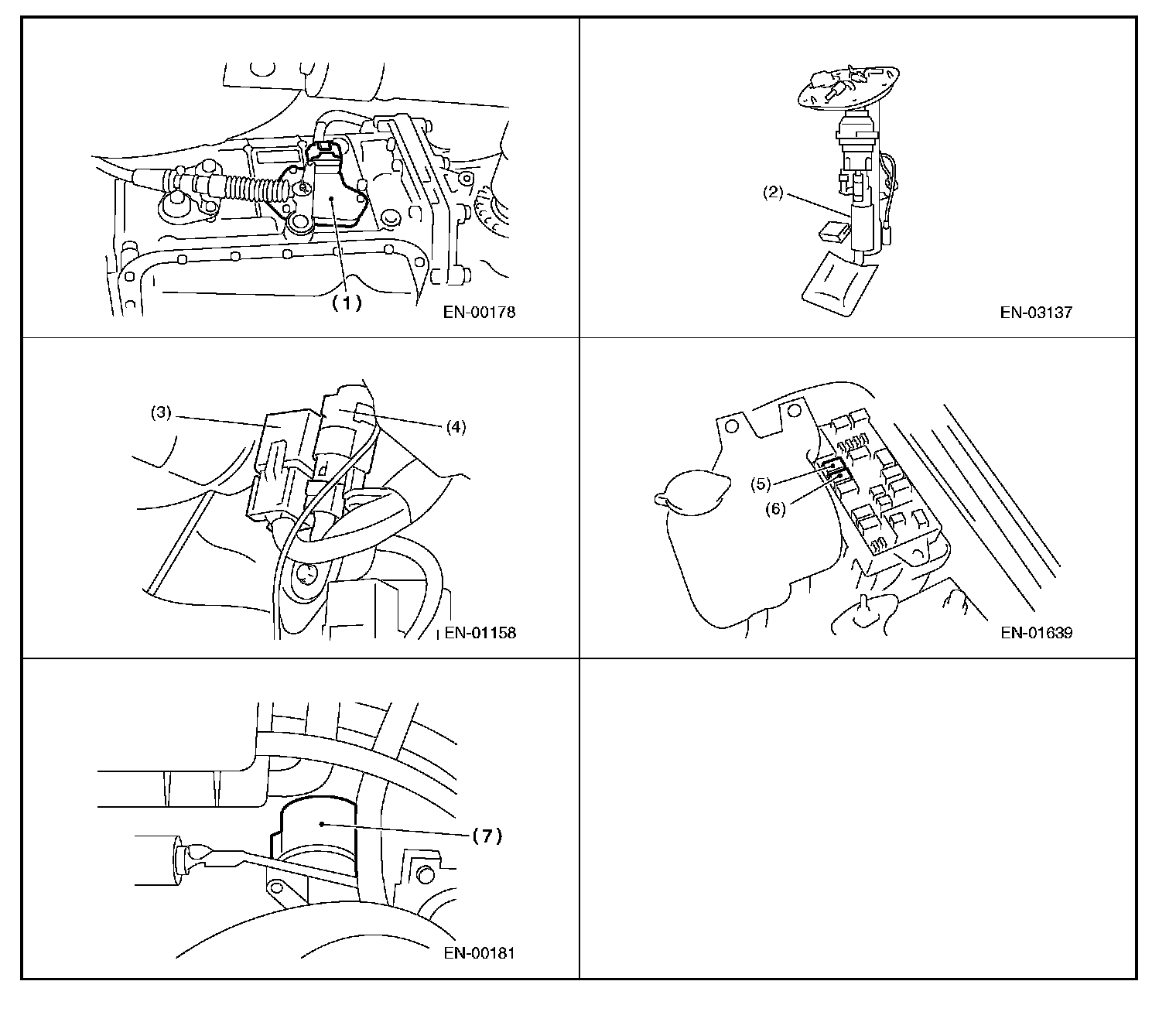

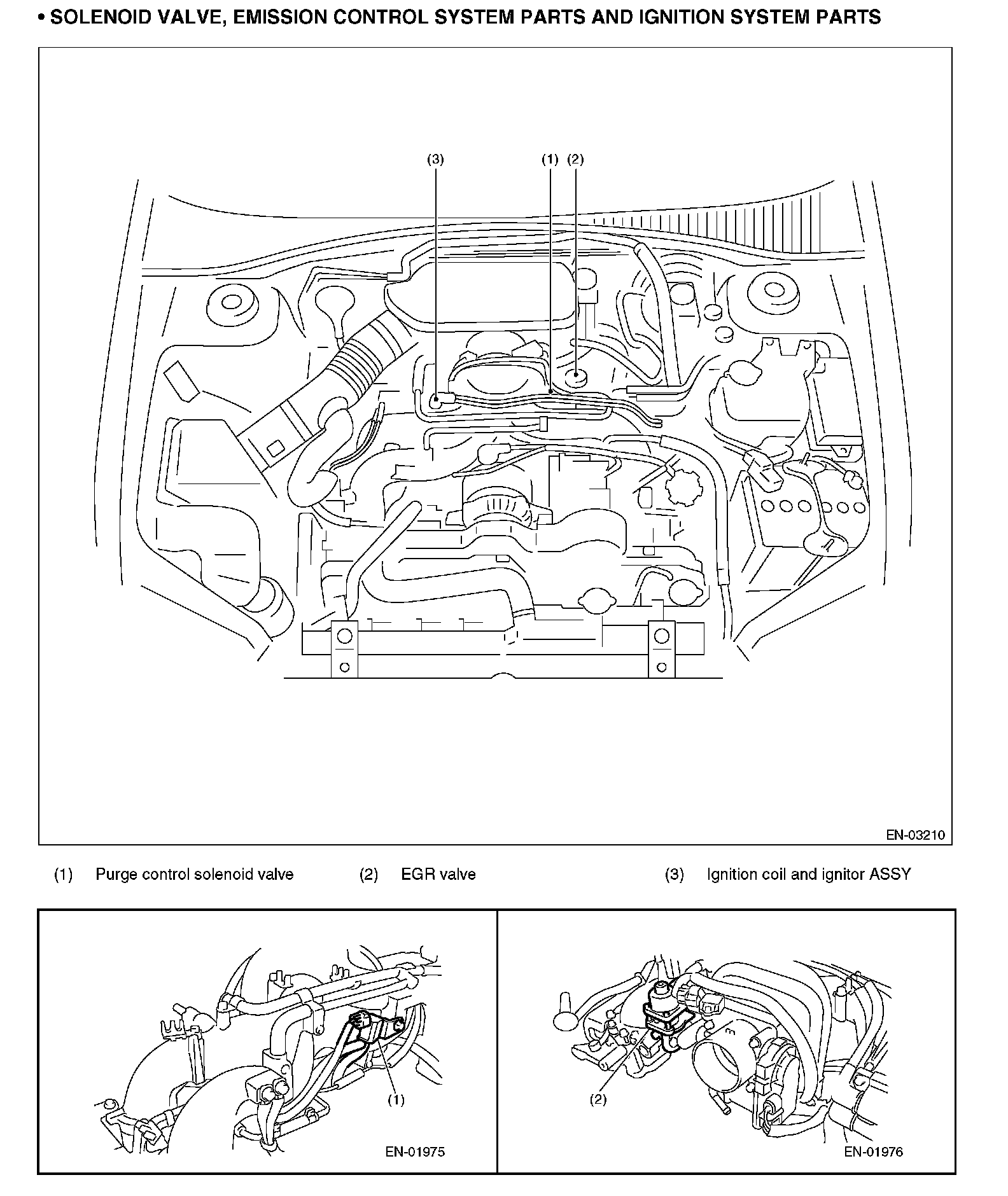

SOLENOID VALVE, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS
