Fog/Driving Lamp: Service and Repair

Front Fog Light Assembly

REMOVAL
EXCEPT FOR OUTBACK MODEL
1. Disconnect the ground cable from battery.

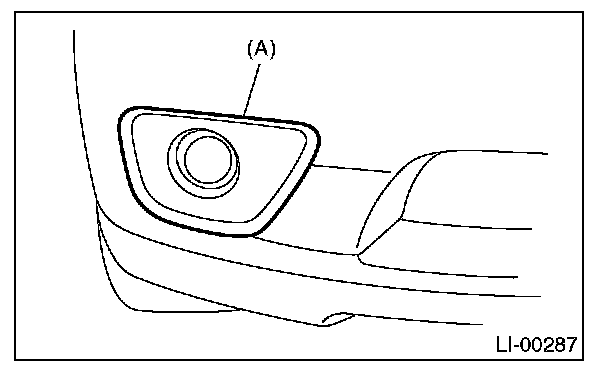

2. Remove the front fog light cover (A).

3. Disengage the two clips, and then turn over the lower mud guard.
4. Disconnect the harness connector.

5. Remove the mounting bolts, and then detach the fog light assembly by pulling it.

INSTALLATION
Install in the reverse order of removal.
