A/T Fluid Replacement
Automatic Transmission FluidREPLACEMENT
1. Lift-up the vehicle.

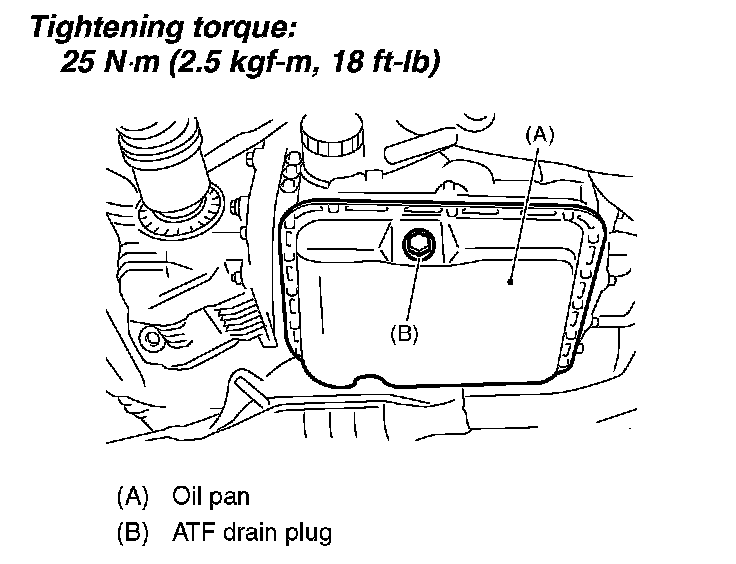

2. Remove the ATF drain plug to drain ATF.
CAUTION: After running the engine or after idling for a long time, the ATF is hot. Be careful not to burn yourself.
3. Check the condition of ATF.
4. Tighten the ATF drain plug.
NOTE: Use a new gasket.
Tightening torque: 25 Nm (2.5 kgf-cm, 18 ft. lbs.)
5. Lower the vehicle.
6. Pour ATF from the oil charge pipe.
Recommended fluid: SUBARU ATF (PartNo. K0410Y0700), Idemitsu Apolloil ATF HP, Castrol Transmax J, Pennzoil Quakerstate Pennzoil ATF-J or Dexron III
Capacity: Fill the same amount of ATF drained.
Capacity when transmission is overhauled: 9.3 - 9.6 Ohms (9.8 - 10.1 US qt. 8.2 - 8.4 Imp qt)
7. Bleed the air of control valve.
8. Check the level and leaks of ATF.
