Rear

REMOVAL
1. Lift-up the vehicle, and then remove the rear wheels.
2. Release the parking brake.

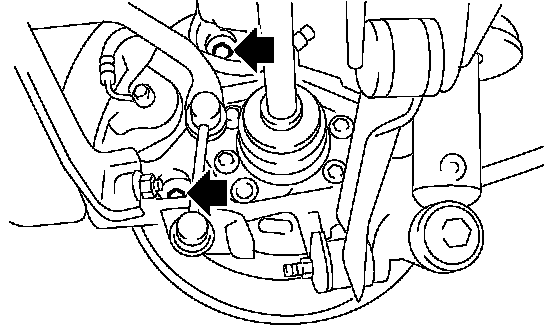

3. Remove the two mounting bolts, and remove the disc brake assembly.
4. Suspend the disc brake assembly so that the hose is not stretched.
5. Remove the disc rotor.

NOTE: If the disc rotor is difficult to remove, try following two methods in order.

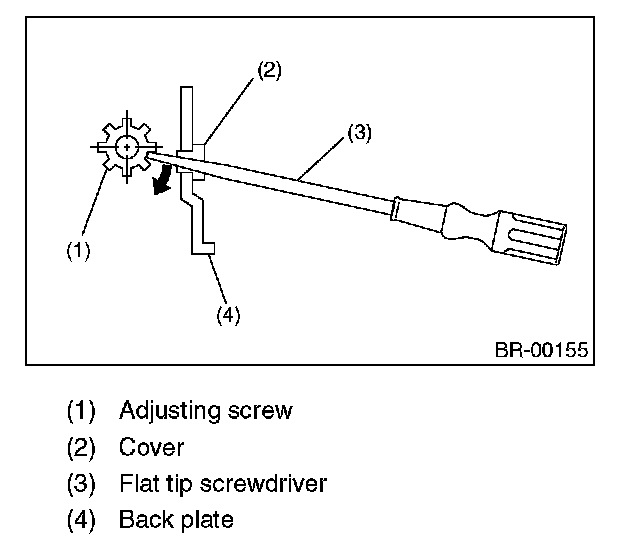

1 Turn the adjusting screw using a flat tip screwdriver until the brake shoe gets away enough from the disc rotor.

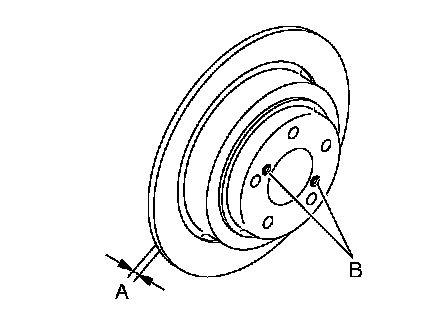

2 If the disc rotor seizes up within hub, drive the disc rotor out by pushing with an 8 mm bolt in holes B on the rotor.

INSTALLATION
1. Install in the reverse order of removal.
2. Adjust the parking brake.
