2.5L SOHC

Front Oxygen (A/F) Sensor

REMOVAL

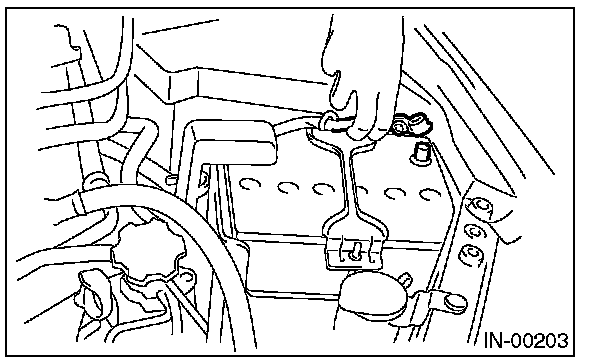

1. Disconnect the ground cable from battery.

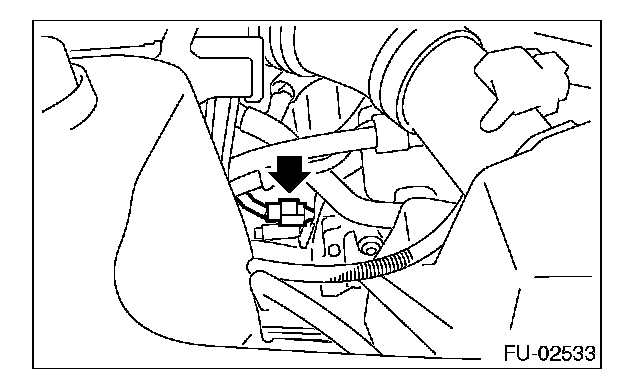

2. Disconnect the front oxygen (A/F) sensor connector.

NOTE: Remove the harness from bracket.

3. Lift up the vehicle.
4. Apply spray-type lubricant to the threaded portion of front oxygen (A/F) senor, and leave it for one minute or more.

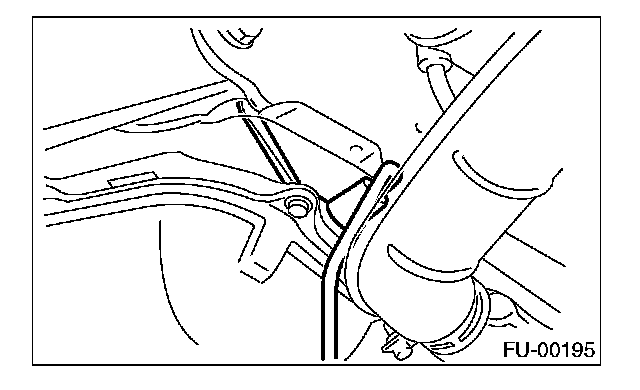

5. Remove the front oxygen (A/F) sensor.

CAUTION: When removing the oxygen (A/F) sensor, wait until exhaust pipe cools, otherwise it will damage exhaust pipe.

INSTALLATION

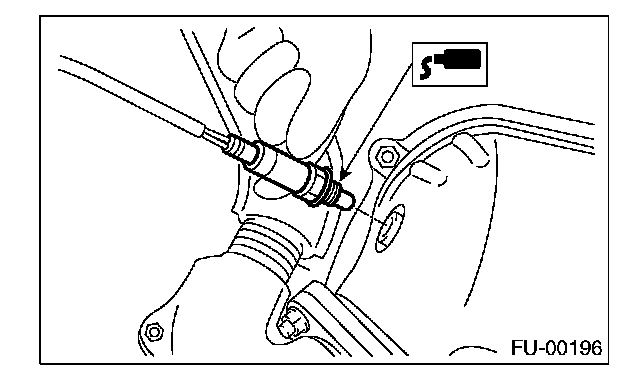

1. Before installing front oxygen (A/F) sensor, apply anti-seize compound only to the thread portion of front oxygen (A/F)sensor to make the next removal easier.

Ant-seize compound: SS-30 by JET LUBE

CAUTION: Never apply anti-seize compound to protector if front oxygen (A/F) sensor.

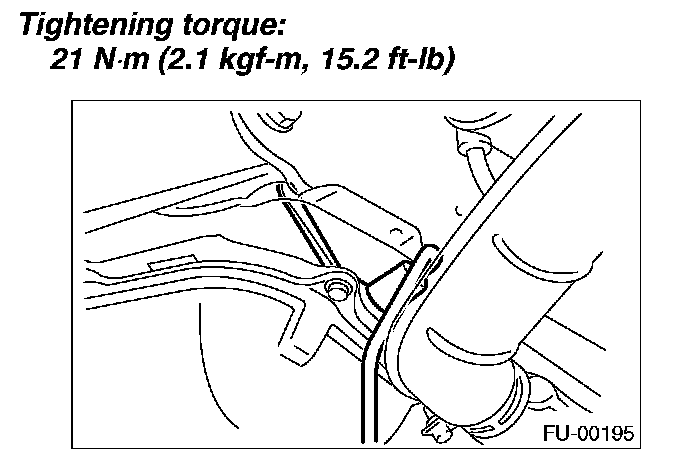

2. Install the front oxygen (A/F) sensor.
3. Lower the vehicle.




4. Connect the connector to front oxygen (A/F) sensor.

NOTE: Hold the harness to bracket.




5. Connect the battery ground cable to battery.
