Camshaft Bearing

Camshaft Bearing Cap

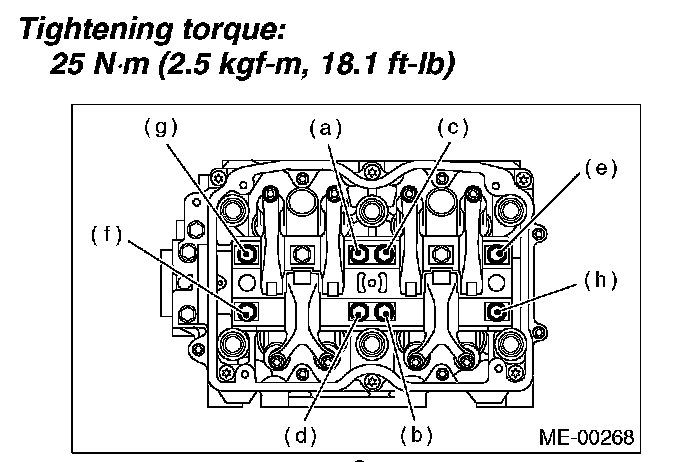

Tighten the bolts (a) through (h) in alphabetical sequence.

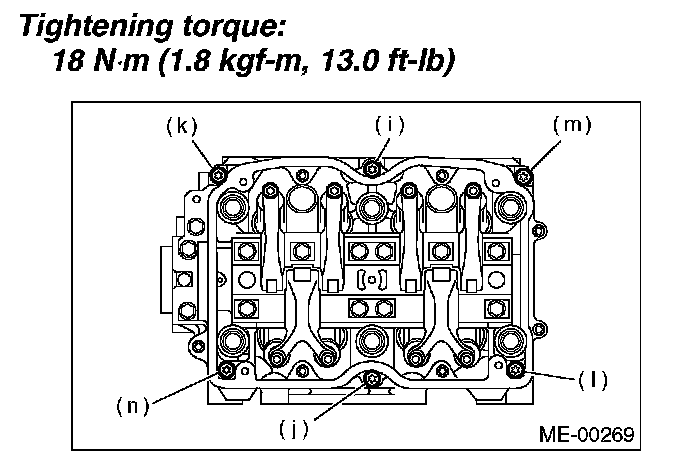

Tighten the TORX (R) bolts (i) through (n) in alphabetical sequence using ST.
ST 499497000 TORX (R) PLUS

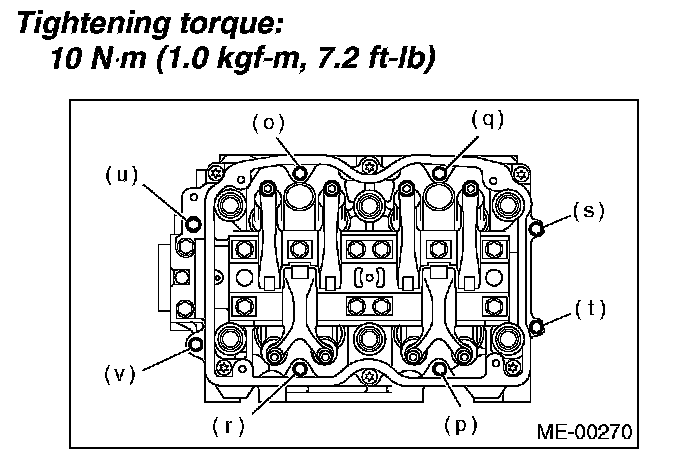

Tighten the bolts (o) through (v) in alphabetical sequence.

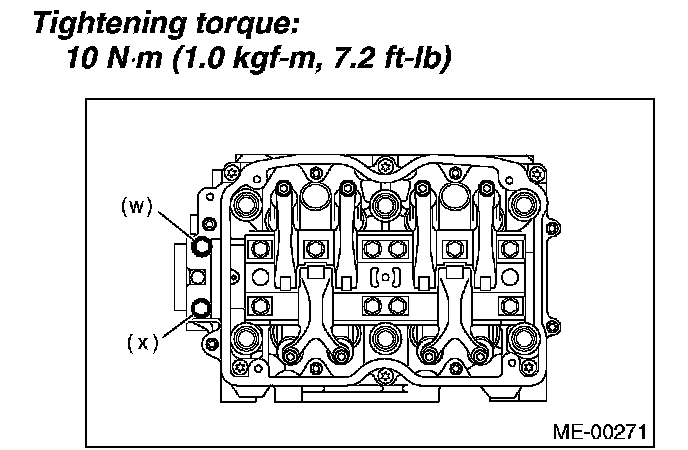

Tighten the bolts (w) and (x) in alphabetical sequence.
