Rear Vehicle Speed Sensor
Rear Vehicle Speed SensorREMOVAL 1.
Set the vehicle on a lift, and then lift-up the vehicle.
2.

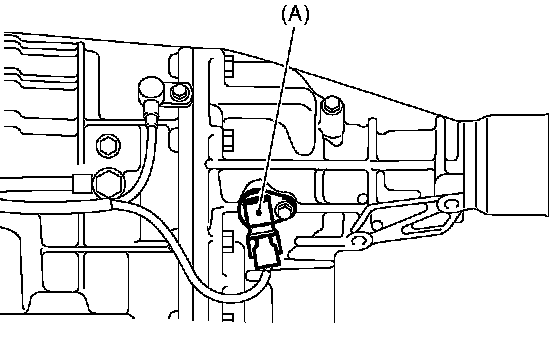

Disconnect the connector from rear
vehicle speed sensor.
3.

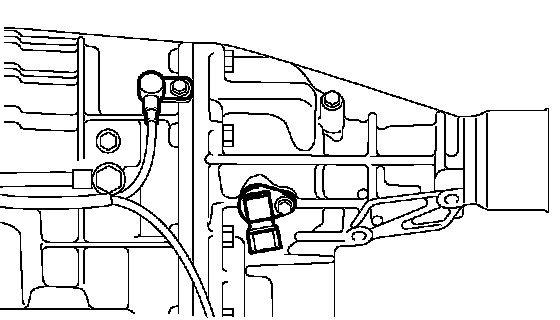

Remove the rear
vehicle speed sensor.
INSTALLATION Install in the reverse order of removal.
NOTE: Replace O-ring with a new one.
Tightening torque:
7 Nm (0.7 kgf-cm, 5.1 ft. lbs.)
