Door Locks: Service and Repair

Key Lock Cylinders

REPLACEMENT

FRONT DOOR
1. Remove the door trim.
2. Pull back the sealing cover.
3. Move the front door glass downward.

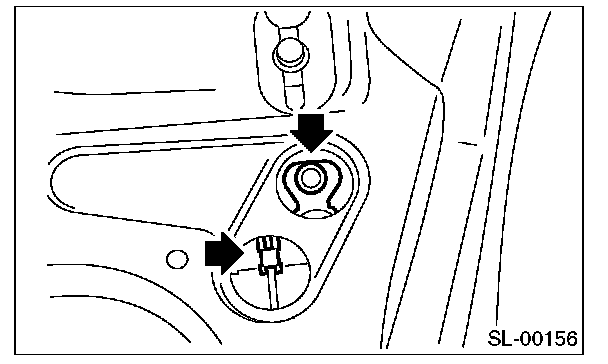

4. Remove the rod clamp. Remove the bolt. Replace the key cylinder.
