Blower Motor: Service and Repair

Blower Motor Unit Assembly

REMOVAL
1. Disconnect the ground cable from battery.
2. Remove the glove box.

3. Loosen the nut to remove the support beam stay.

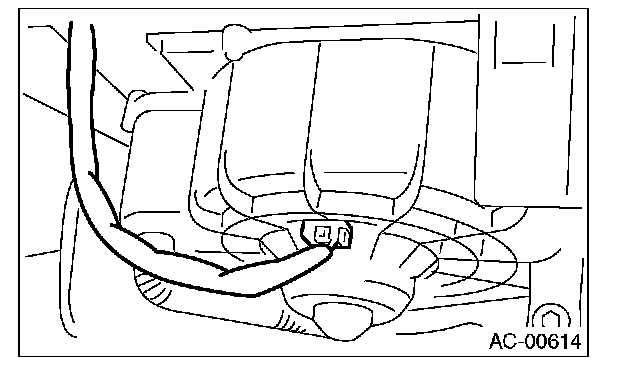

4. Disconnect the blower motor connector.

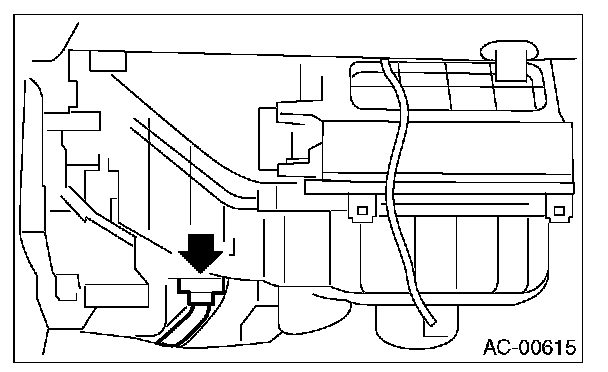

5. Disconnect the power transistor or blower resistor connector.

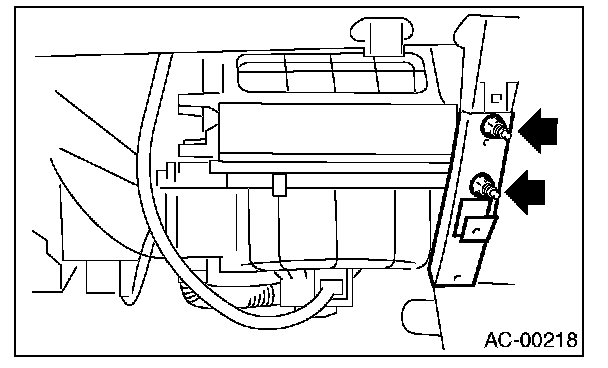

6. Loosen the bolt and nut to remove the blower motor unit assembly.

INSTALLATION
Install in the reverse order of removal.

Tightening torque:
T: 7.4 N.m (0.75 kgf-m, 5.4 ft-lb)
