Evaporator Core: Service and Repair
EvaporatorREMOVAL 1.
Remove the heater and cooling unit.
2.

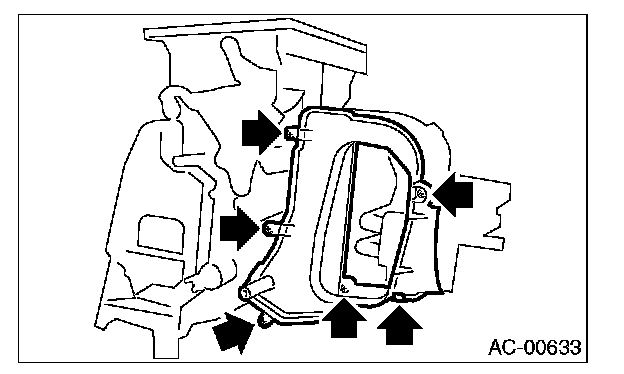

Loosen the screws and clip to remove the evaporator cover.
3.

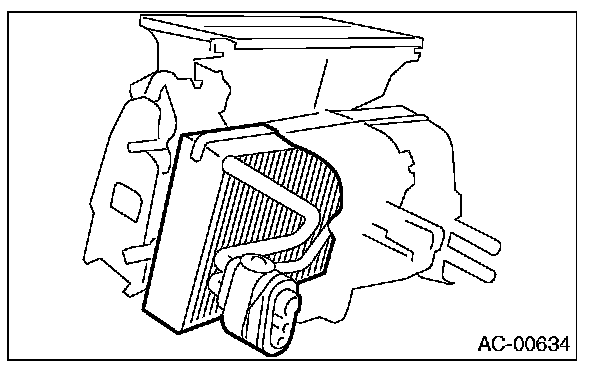

Remove the evaporator.
4.
Loosen the two bolts to remove the
expansion valve.
CAUTION: If the evaporator is replaced, add appropriate amount of compressor oil to evaporator.
INSTALLATIONInstall in the reverse order of removal.
