Fog/Driving Lamp: Service and Repair

FRONT FOG LIGHT ASSEMBLY

REMOVAL
1. Disconnect the ground cable from battery.

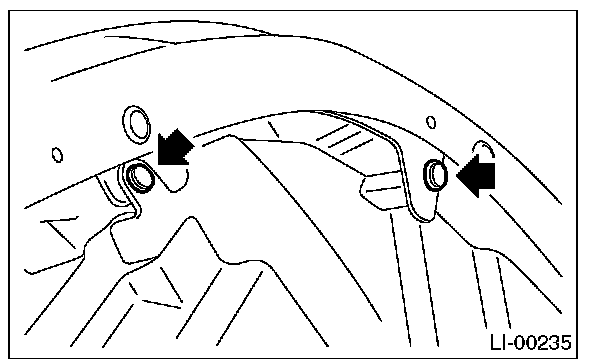

2. Disengage two clips, and then turn over the lower mud guard.
3. Disconnect the harness connector.

4. Remove the mounting bolts, and then remove the fog light assembly.

INSTALLATION
Install in the reverse order of removal.
