Map Light: Service and Repair
SPOT MAP LIGHTREMOVAL 1.
Disconnect the ground cable from battery.
2.

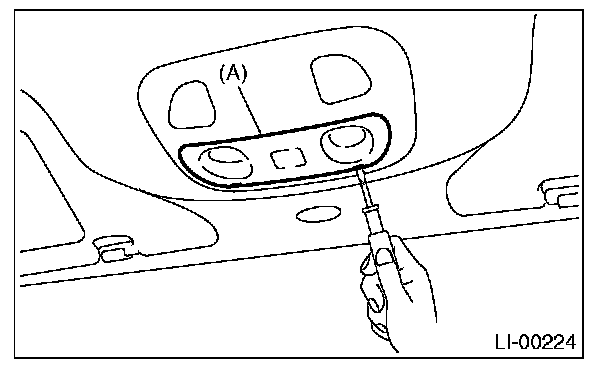

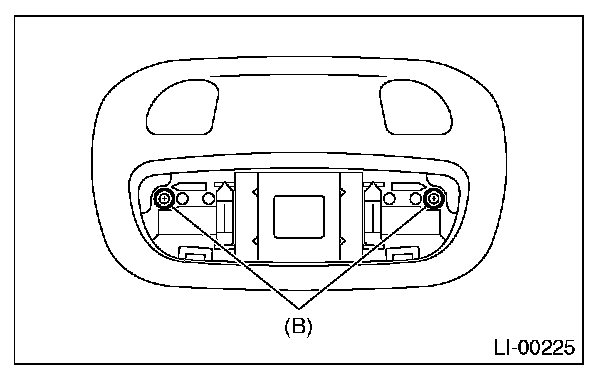

Remove the lens (A) and spot
map light mounting screw (B).
3.
Disconnect the harness connectors and remove the spot
map light.
INSTALLATIONInstall in the reverse order of removal.
