Combination Base Switch Assembly

COMBINATION BASE SWITCH ASSEMBLY

REMOVAL
1. Remove the driver s airbag module.
2. Remove the steering wheel.
3. Remove the steering column cover.
4. Remove the combination switch.
5. Loosen the four screws and remove the roll connector.

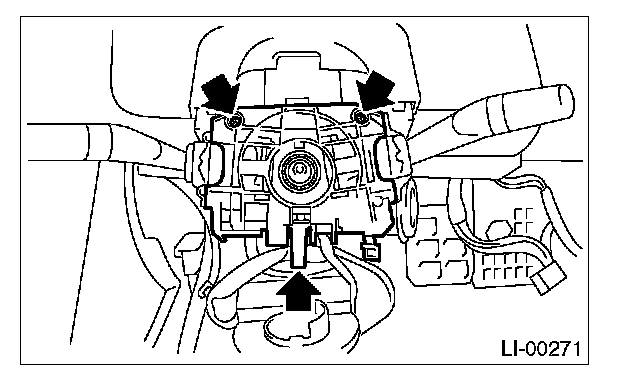

6. Loosen the three screws.
7. Disconnect the connector and remove the combination base switch assembly.

INSTALLATION
1. Install in the reverse order of removal.
2. Align the attaching direction of roll connector with the steering wheel, before installation of steering wheel.
