Rear Combination Light Assembly

REAR COMBINATION LIGHT ASSEMBLY

REMOVAL

1. SEDAN MODEL
1. Disconnect the ground cable from battery.

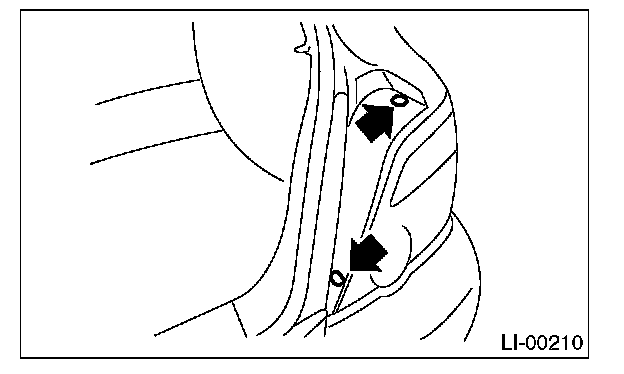

2. Remove the clips, and then detach the trunk rear trim.
3. Remove the trunk side trim of rear portion.

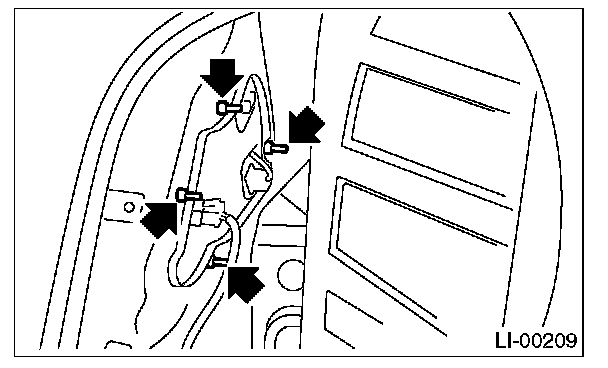

4. Remove the four nuts, and then detach the rear combination light while disconnecting connector.

2. WAGON MODEL
1. Disconnect the ground cable from battery.

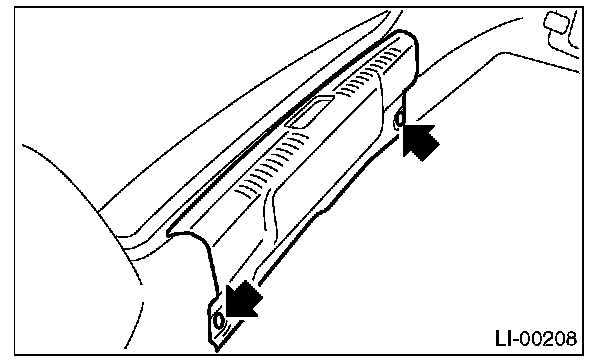

2. Remove the clips, and then detach the rear combination light covers.

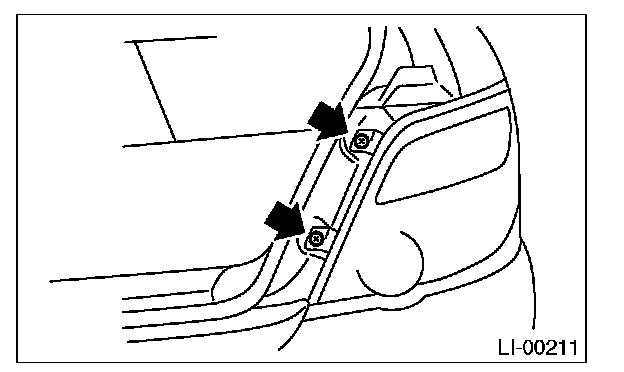

3. Remove two bolts, and then remove the rear combination light by pulling it backward.

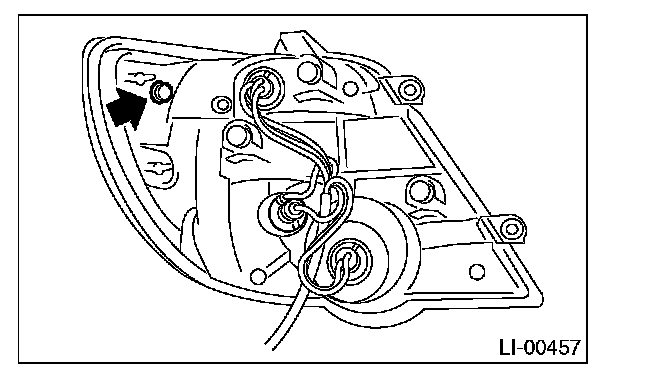

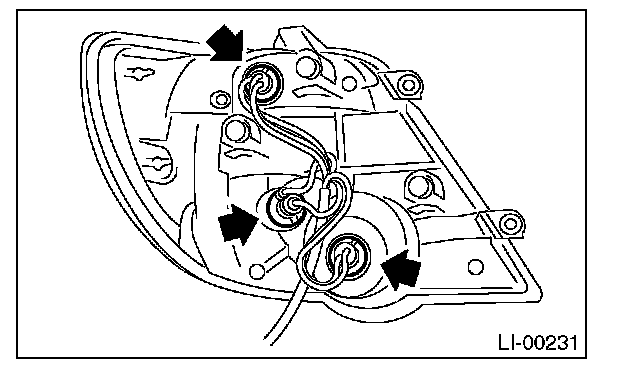

4. Turn the sockets to remove each bulb.

INSTALLATION

1. SEDAN MODEL
Install in the reverse order of removal.

2. WAGON MODEL




Install in the reverse order of removal.

NOTE: Install the rear combination light by aligning the clip with body side.
