Combination Base Switch Assembly
INSPECTION 1. COMBINATION BASE SWITCH ASSEMBLY Perform the inspection for the following items and replace with a new one, if any damage is found. Crack or deformation of combination base switch assembly or roll connector.

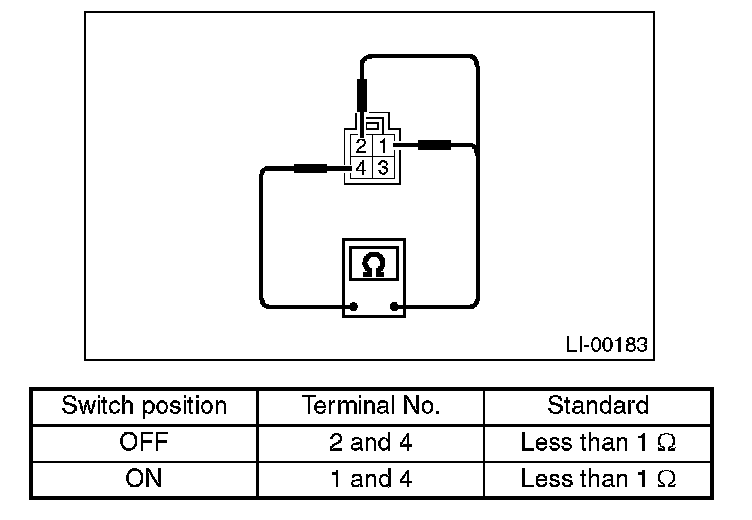

2. PARKING SWITCH Measure the resistance between parking switch terminals.
