Removal and Installation
Air Assist Injector Solenoid ValveREMOVAL 1.

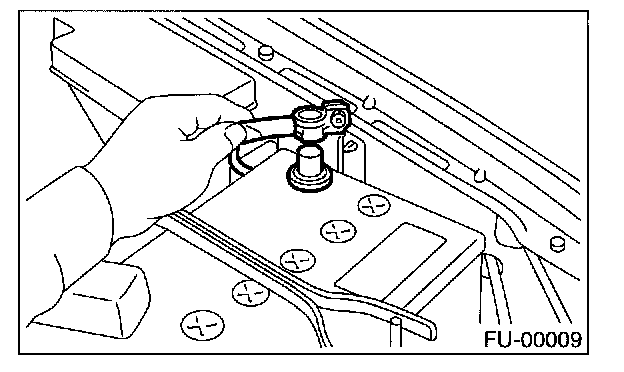

Disconnect the ground cable from battery.
2.

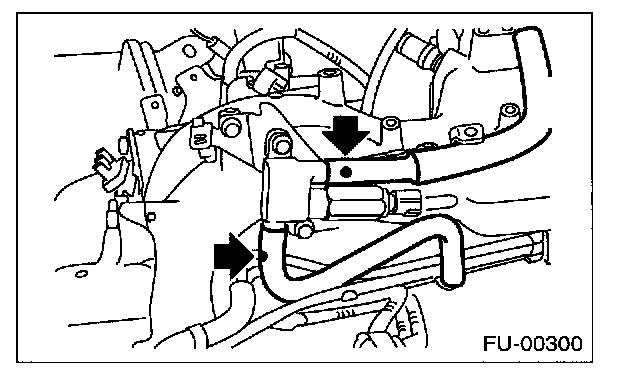

Disconnect the connector from the air assist injector solenoid valve and disconnect the air bypass hoses.
3.

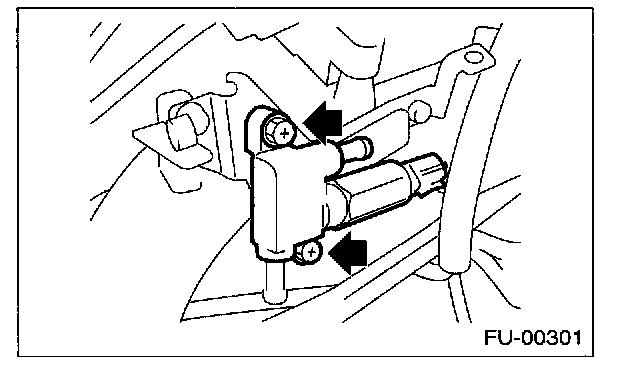

Remove the air assist injector solenoid valve from the intake manifold.
INSTALLATIONInstall in the reverse order of removal.
Tightening torque:
6.4 N.m (0.65 kgf-m, 4 .7 ft-lb)
