Check Inhibitor Switch
CHECK INHIBITOR SWITCHDIAGNOSIS:
Input signal circuit of inhibitor switch is open or shorted.
TROUBLE SYMPTOM:
^ Shift characteristics are erroneous.
^ Engine brake is not effected when selector lever is in "3" range.
^ Engine brake is not effected when selector lever is in "2" range.
^ Engine brake is not effected when selector lever is in "1" range.

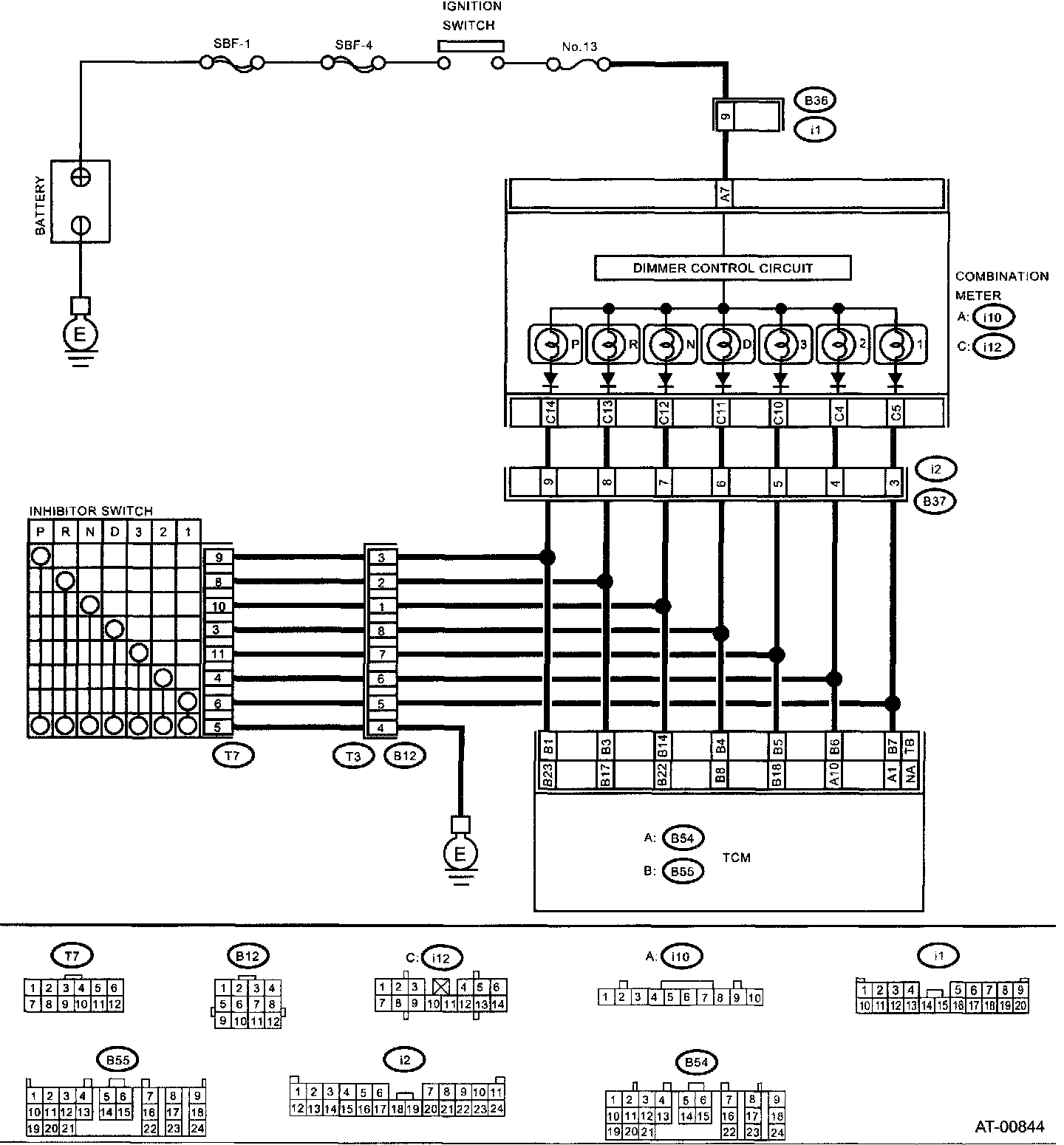

WIRING DIAGRAM:

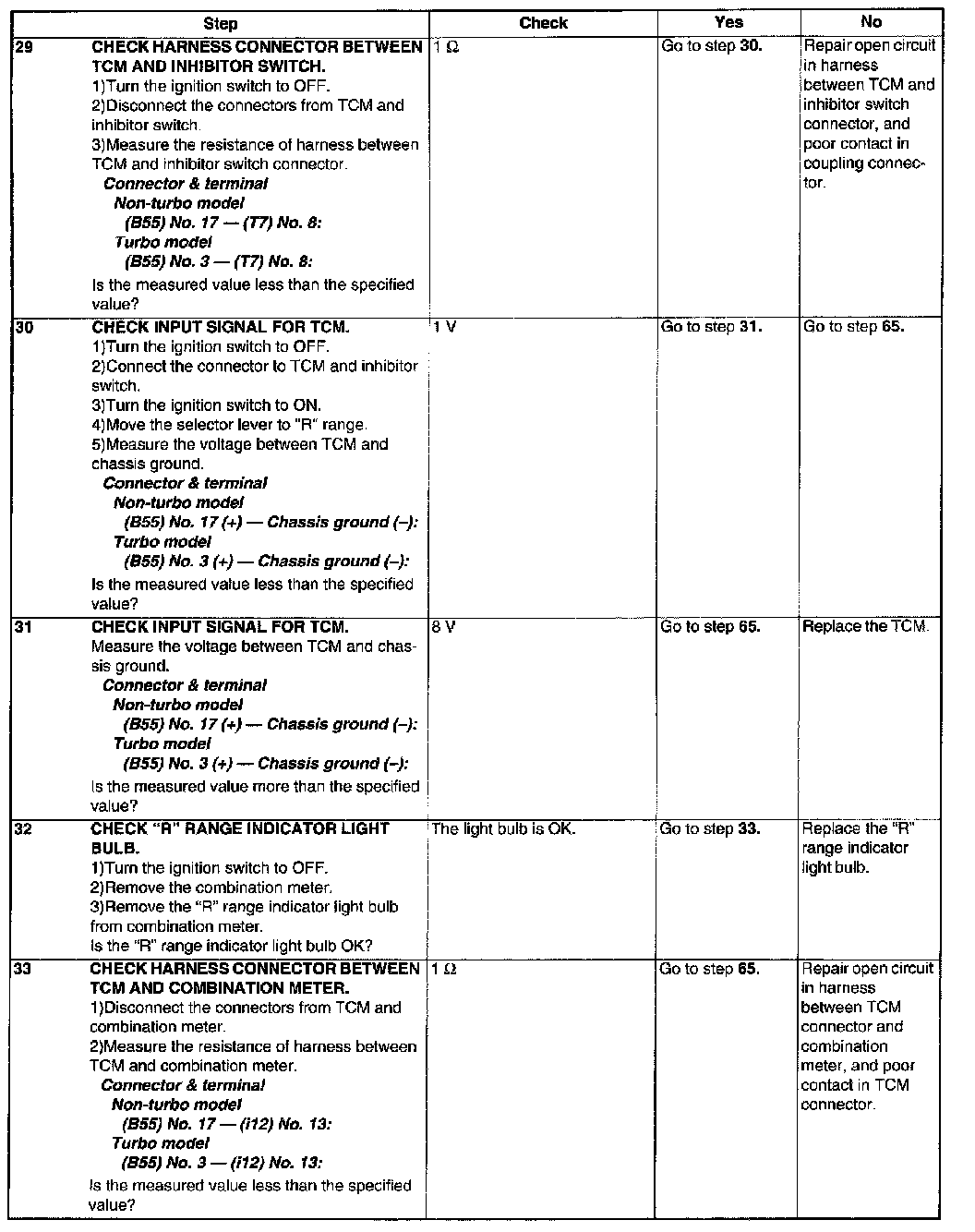

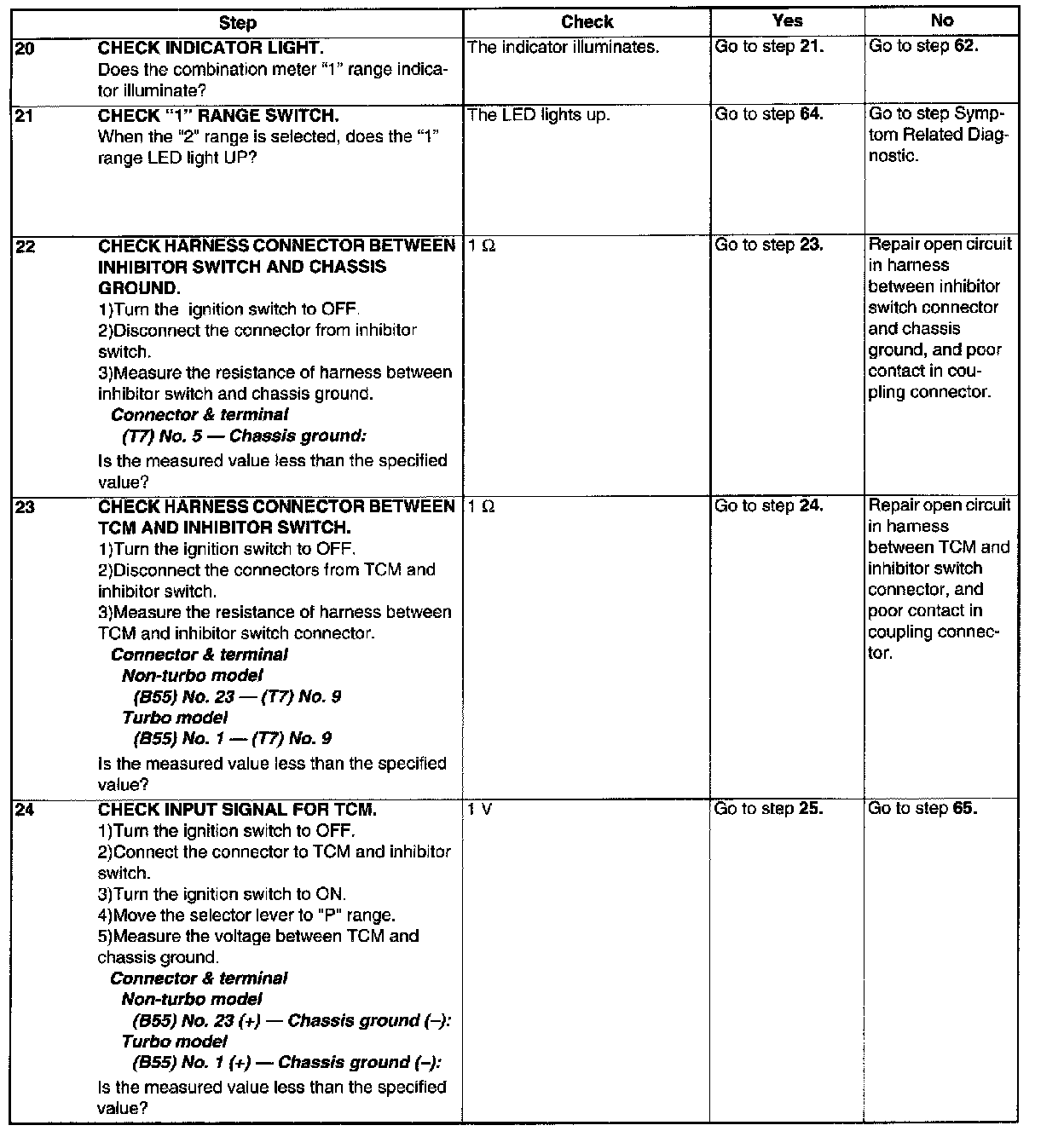

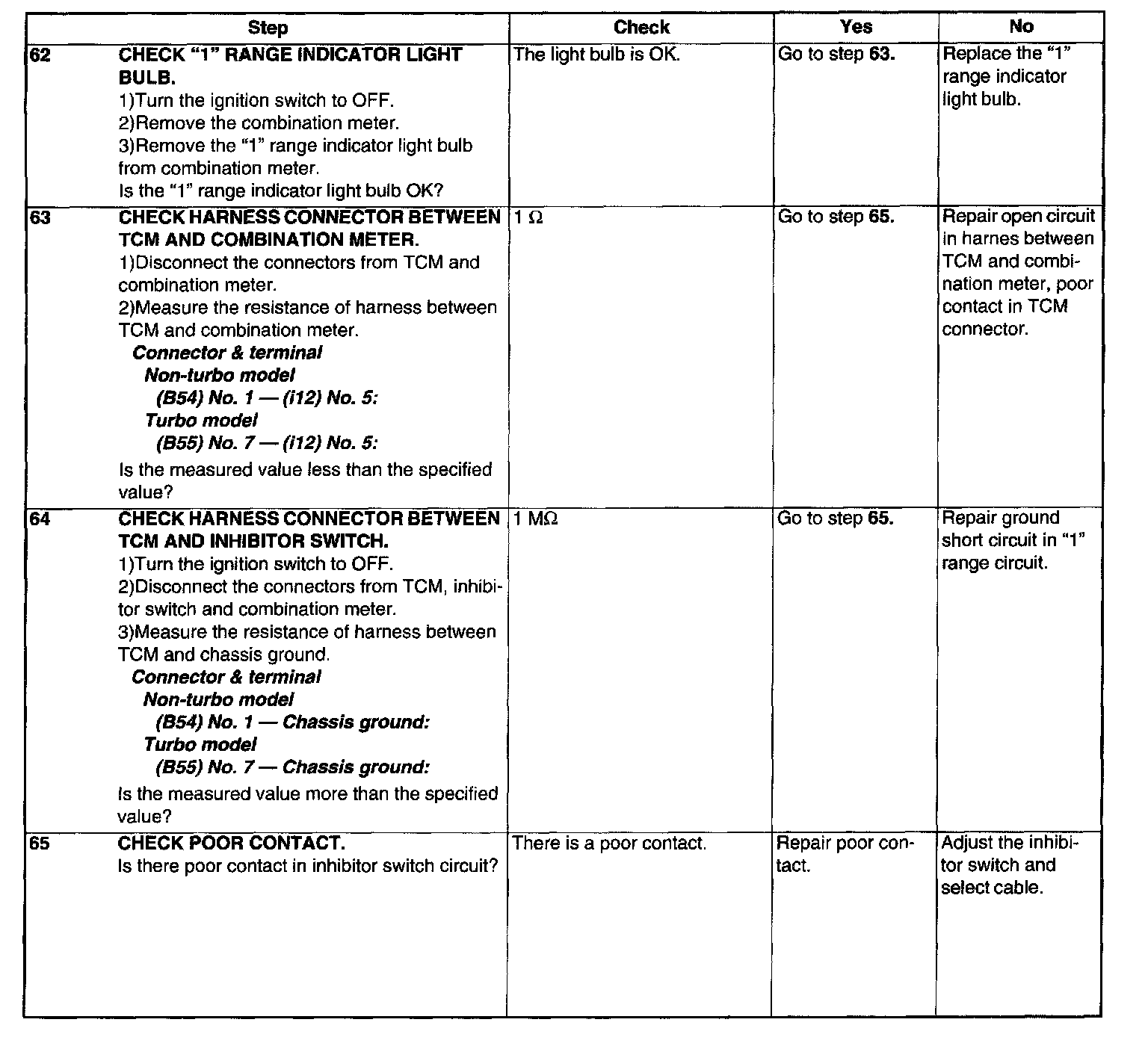

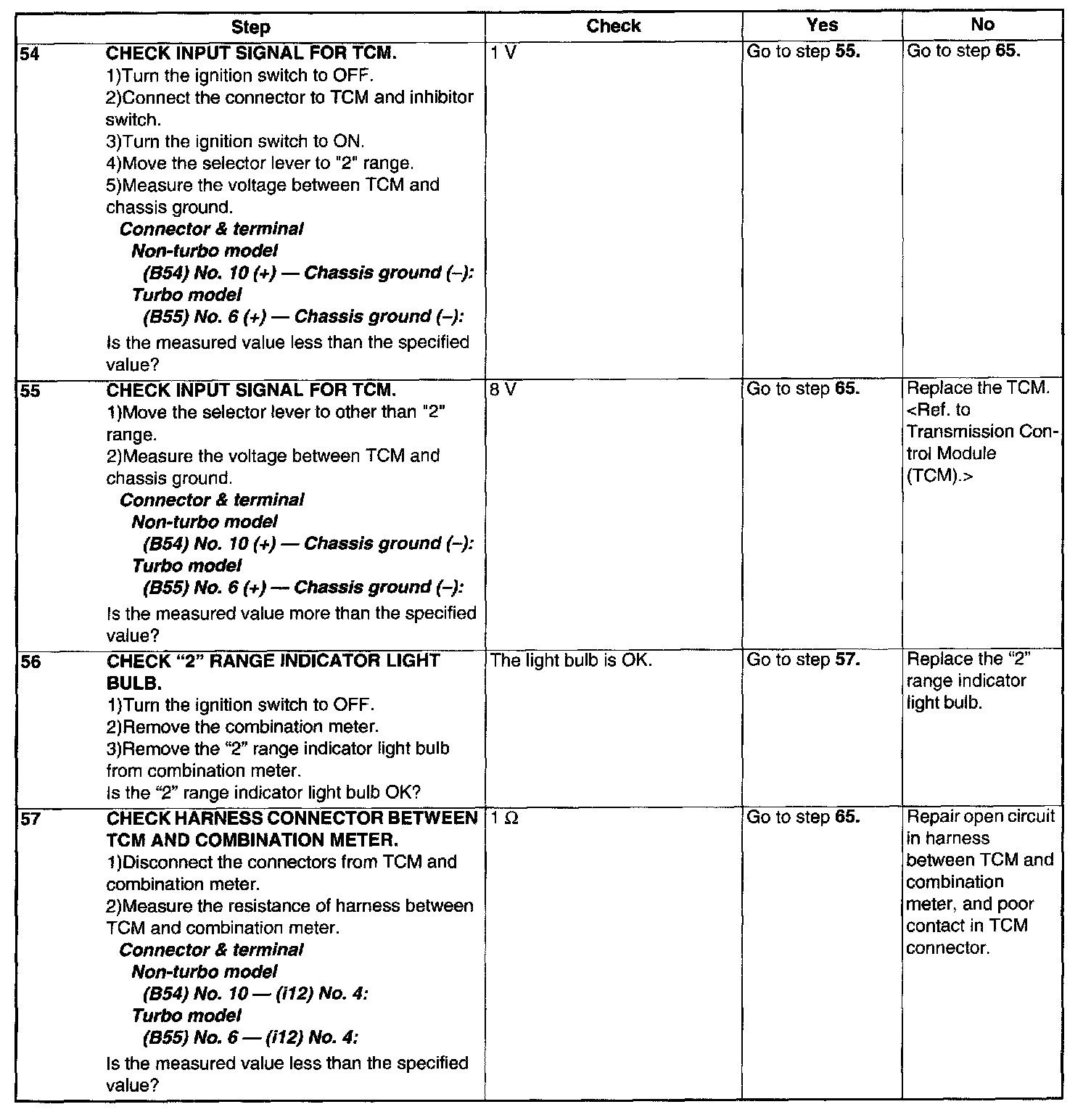

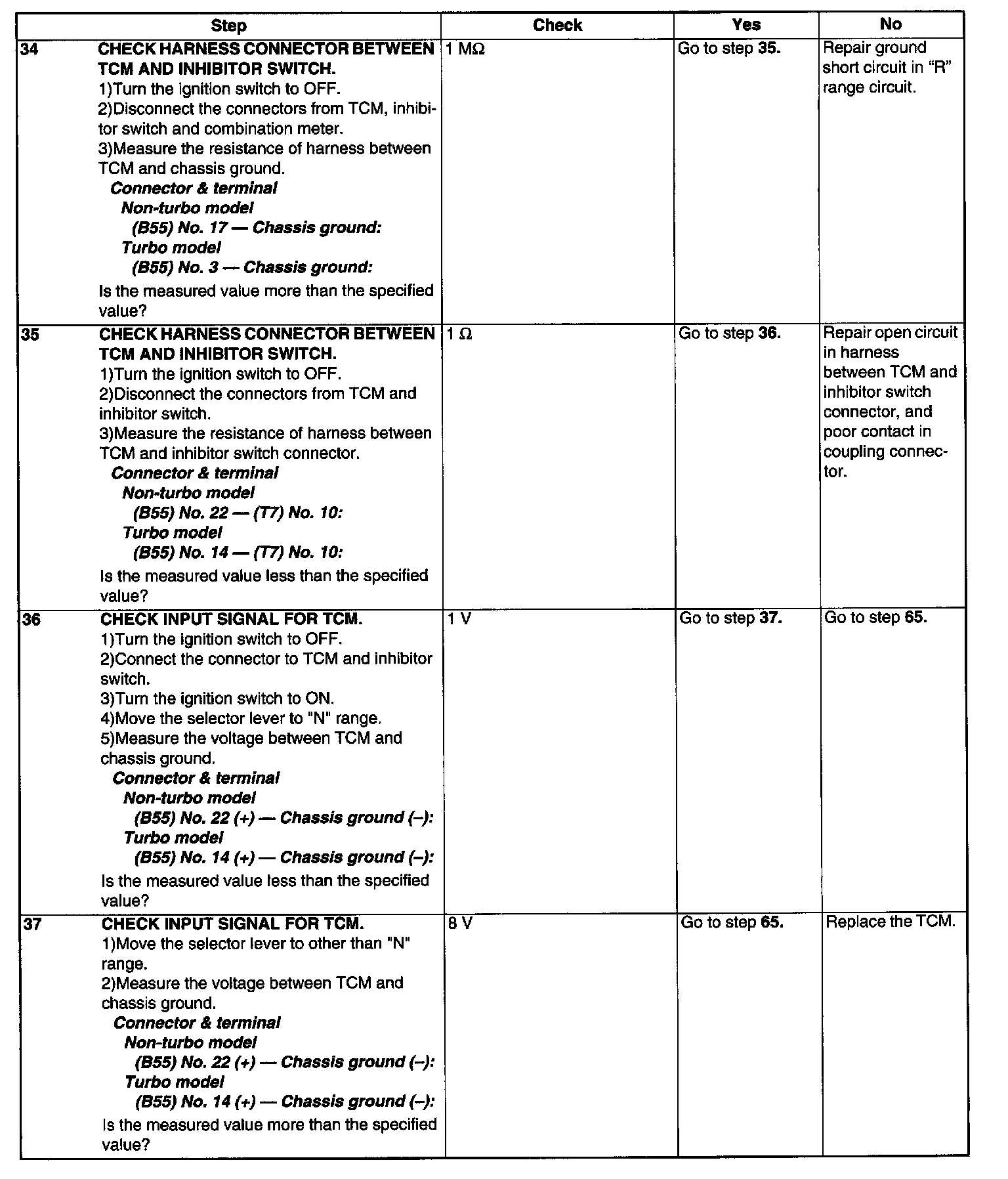

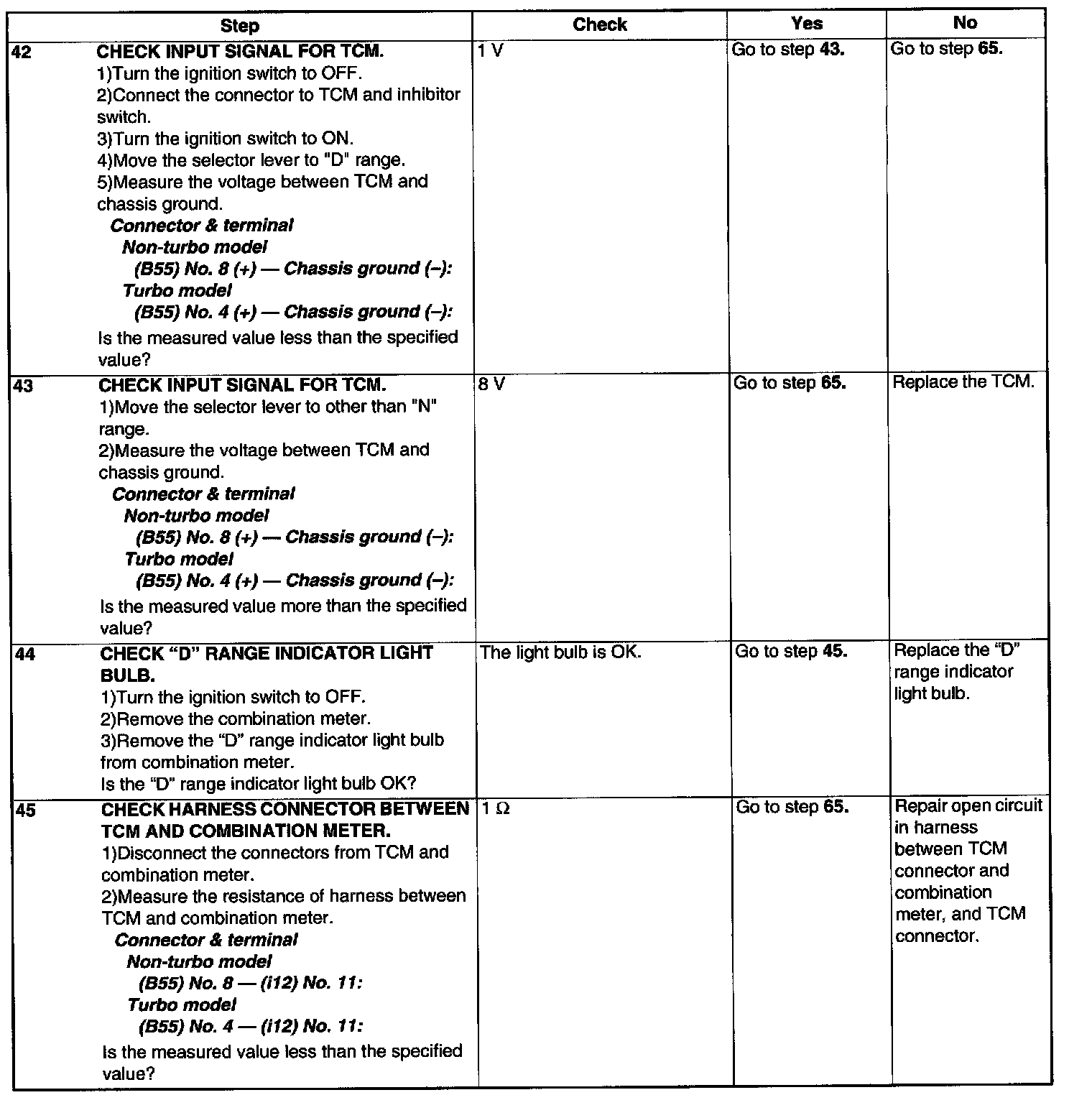

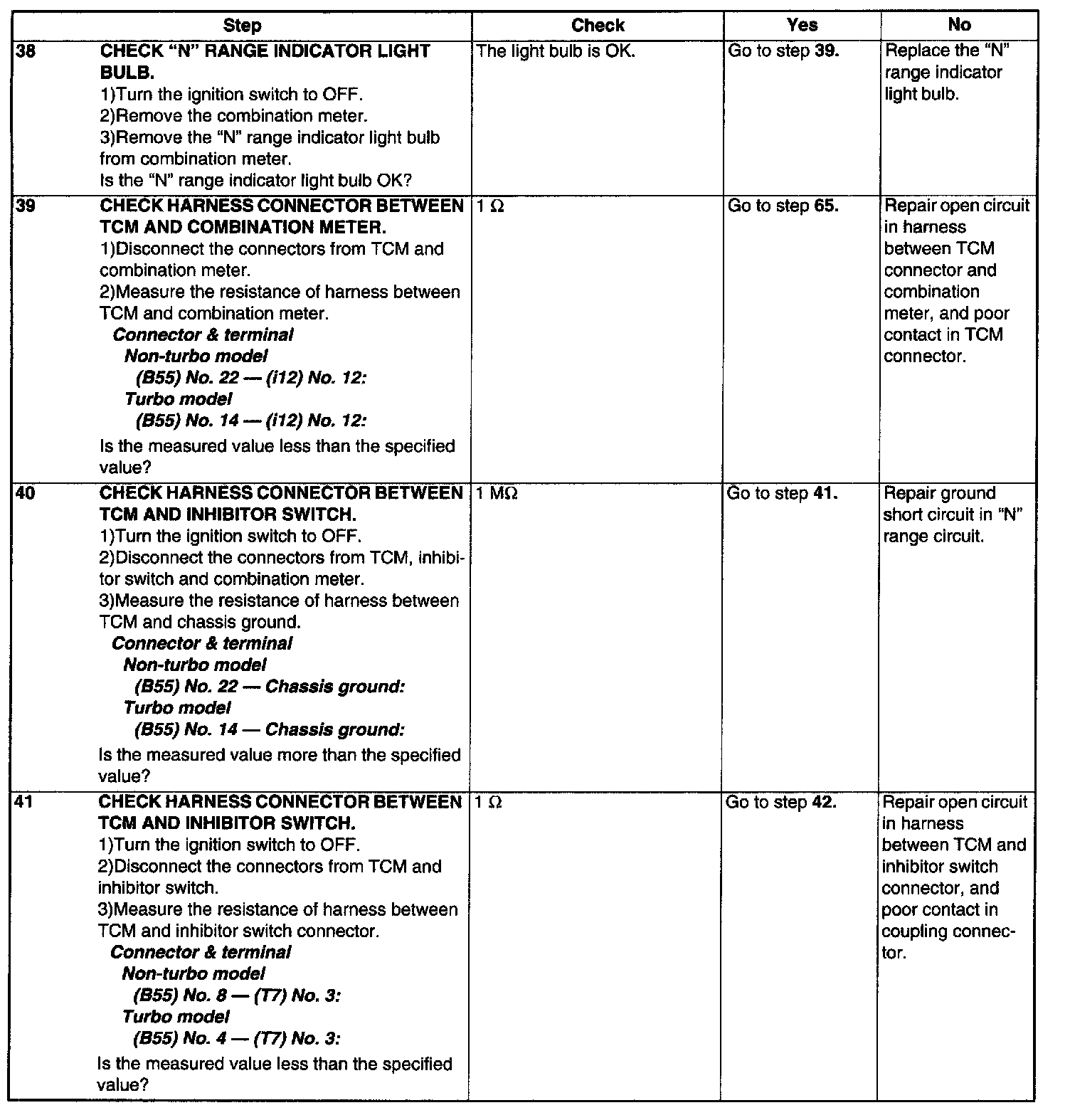

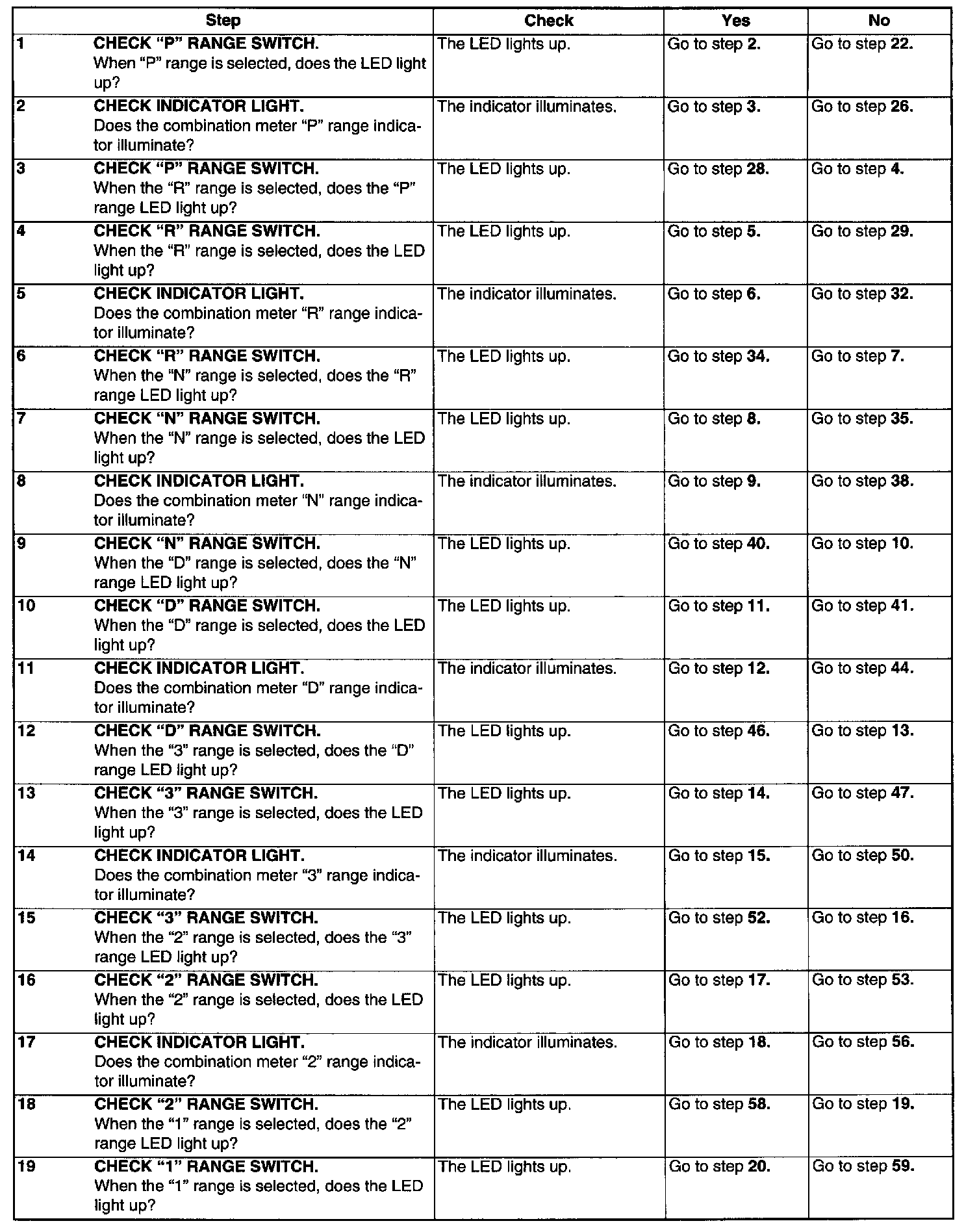

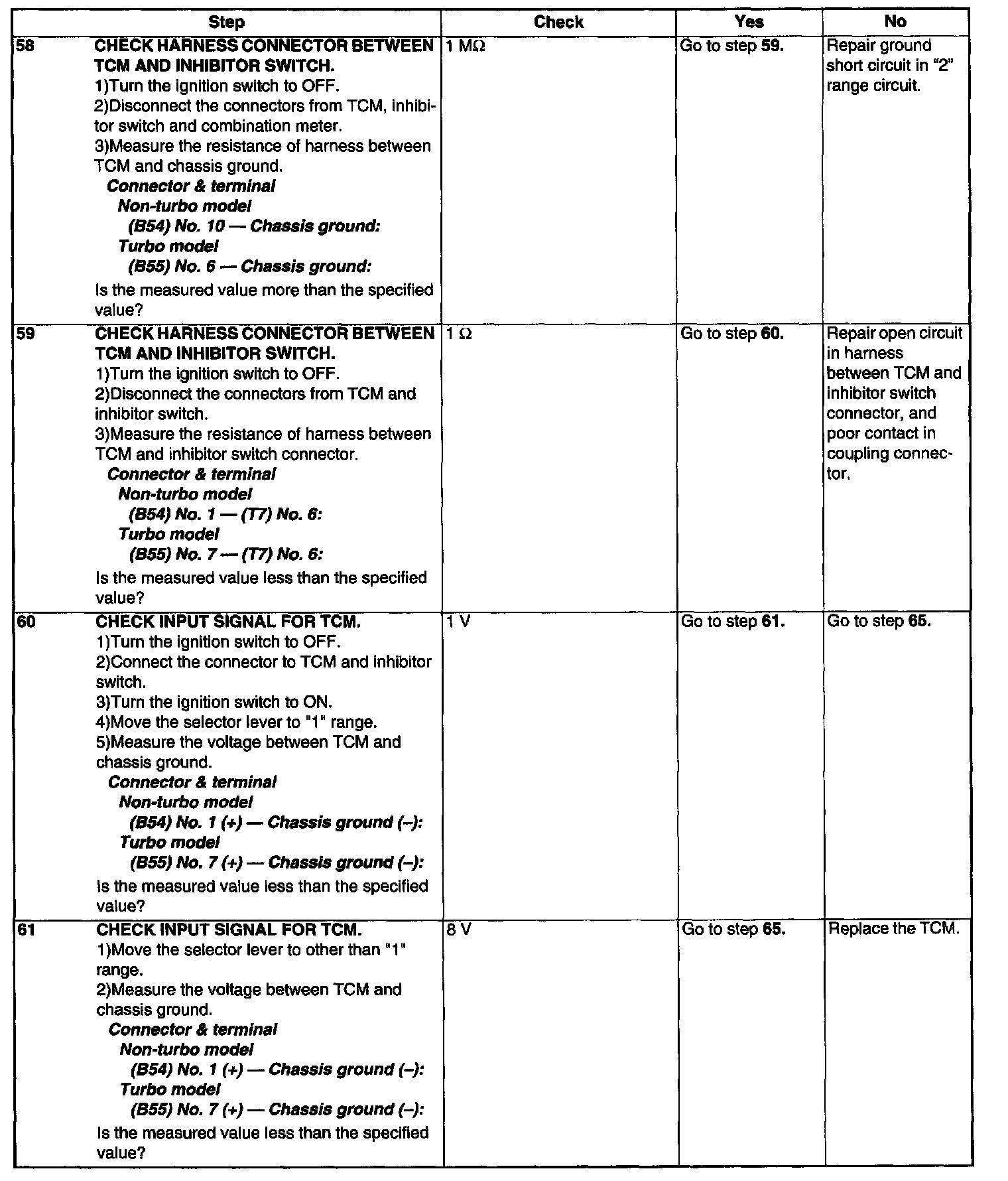

Test 1 Of 12:
Test 2 Of 12:
Test 3 Of 12:
Test 4 Of 12:
Test 5 Of 12:
Test 6 Of 12:
Test 7 Of 12:
Test 8 Of 12:
Test 9 Of 12:
Test 10 Of 12:
Test 11 Of 12:
Test 12 Of 12:
