Headlamp: Adjustments

ADJUSTMENT

1. HEADLIGHT AIMING

NOTE: As this headlight is the "VISUAL AIMING TYPE", it is possible to adjust aiming only in the vertical direction. It cannot be adjusted in the horizontal direction.

CAUTION: Turn off the light before adjusting headlight aiming. If the light is necessary to check aiming, do not turn on for more than two minutes.

NOTE: Before checking the headlight aiming, be sure of the following:
- The area around the headlight has not sustained any accident, damage or other type of deformation.
- Vehicle is parked on level ground.
- The inflation pressure of tires is correct.
- Vehicle's gas tank is fully charged.
- Bounce the vehicle several times to normalize the suspension.
- Make certain that someone is seated in the driver's seat.
Turn the headlights on and then adjust the low beam pattern to the following positions on the screen.

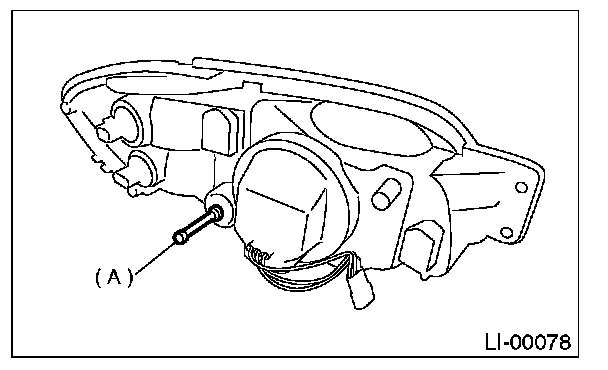

NOTE: Adjust the headlight aiming by turning the adjusting screw (A).




Single-bulb type




Dual-bulb type

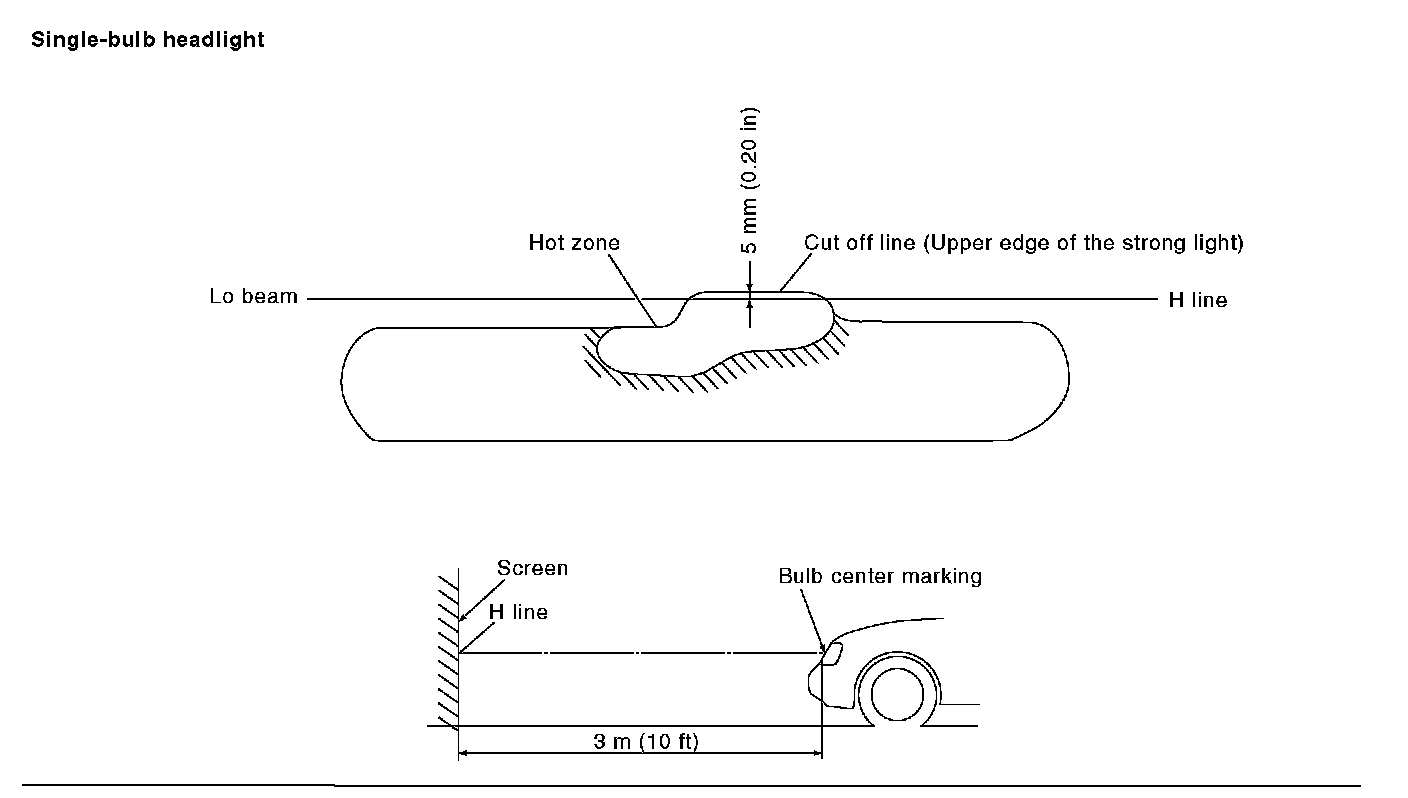

Single-bulb headlight

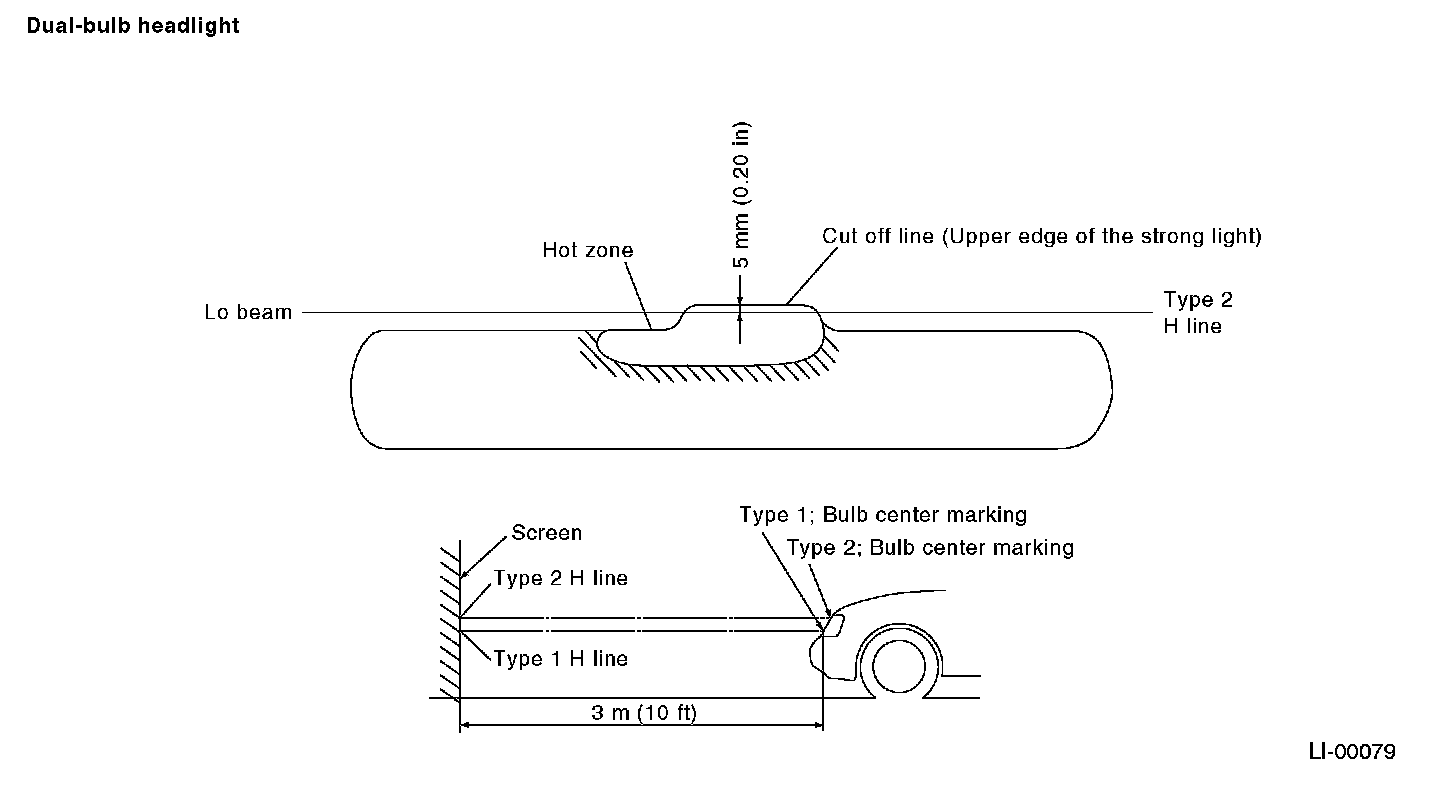

Dual-bulb headlight
