General Diagnostic Table

General Diagnostic Table

INSPECTION

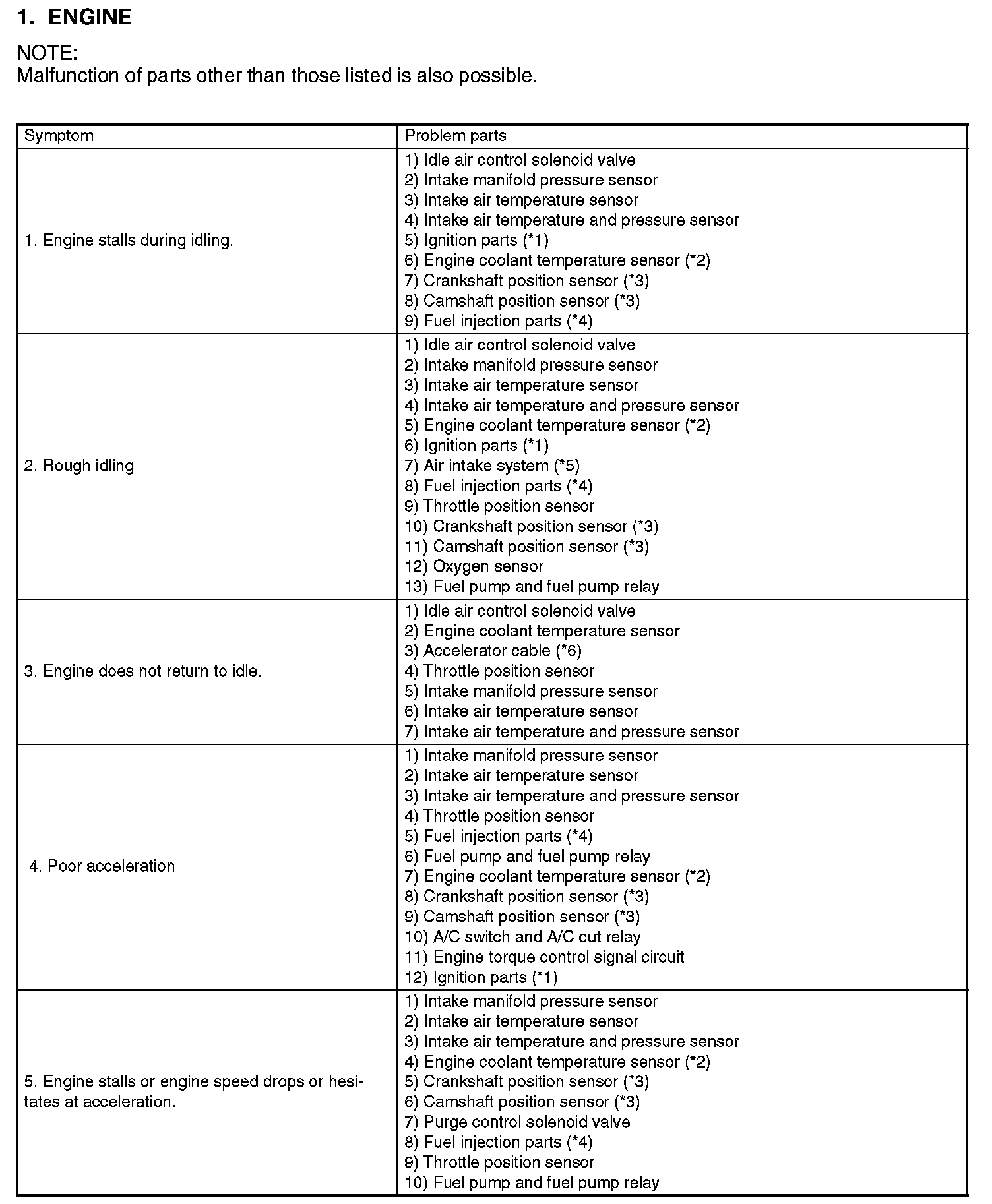

General Diagnostic Table - Engine (Part 1):

General Diagnostic Table - Engine (Part 2):

ENGINE

AUTOMATIC TRANSMISSION

NOTE: Check general diagnostics table with non-conformity symptom for automatic transmission.
