General

GENERAL

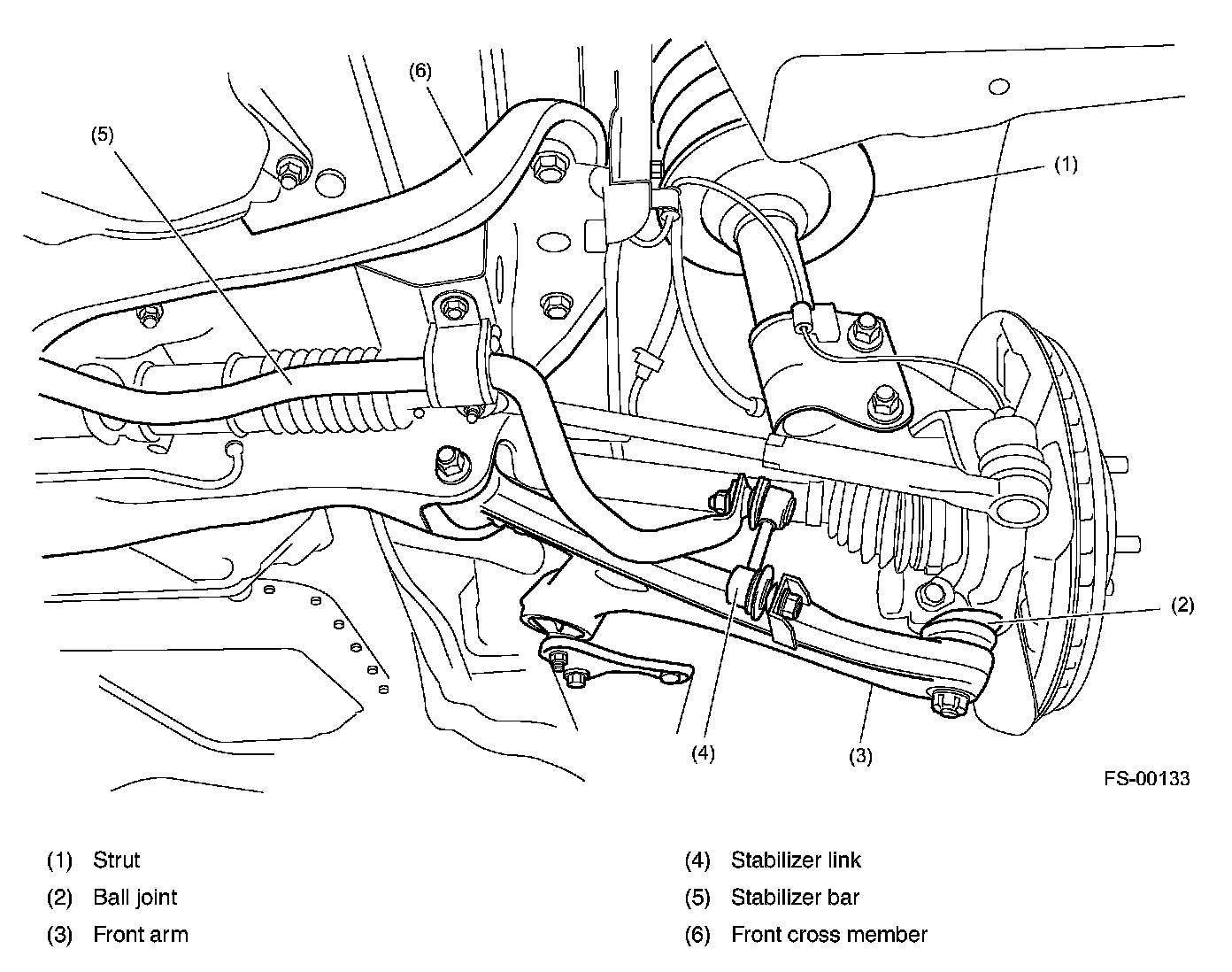

The front suspension is a McPherson strut-type independent suspension which have coil springs and dampers. The suspension on each side consists of a front arm, stabilizer, and a strut assembly.
The front arm is an "L" shaped arm. The outer end of the front arm is fixed to the front axle through a ball joint. The front of the arm's inner end is fitted to the front cross member while the rear of the inner end is fixed to the vehicle body.
The front cross member is bolted to the vehicle body.
The front cross member bears the front arm, steering gearbox, and stabilizer.
