Transmission Gear Oil Replacement
Transmission Gear OilREPLACEMENT
1. Pull out the oil level gauge.
2. Lift-up the vehicle.
3. Drain the transmission gear oil completely.
CAUTION: Directly after the engine has been running, the transmission gear oil is hot. Be careful not to burn yourself.
Be careful not to spill the transmission gear oil on exhaust pipe to prevent it from emitting smoke or fire. If transmission gear oil splashes on exhaust pipe, wipe it clean.

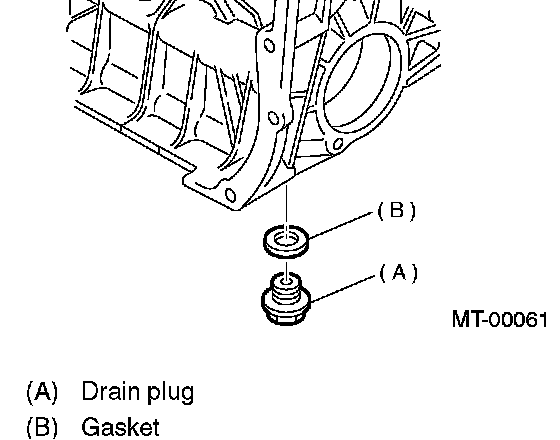

NOTE: Tighten the transmission gear oil drain plug after draining the transmission gear oil.
Tightening torque: 70 Nm (7.1 kgf-cm, 51 ft. lbs.)
4. Lower the vehicle.
5. Pour gear oil into the gauge hole.
Recommended gear oil: Use GL-5 (75W-90) or equivalent.
Gear oil capacity: 3.5 l (3. 7 US qt. 3.1 Imp qt)
6. Check the level of the transmission gear oil.
CAUTION: When inserting the level gauge into transmission, align the protrusion on the side of the top part of level gauge with the notch in the gauge hole.
NOTE: The level should be within the specified range marked on the gauge.
