Door Locks: Service and Repair

The content of this article / image reflects manual update # 18-142-09 dated 09/11/09


Key Lock Cylinders

REPLACEMENT
1. FRONT DOOR
1. Raise the front door glass to the top position.
2. Remove the door trim.
3. Remove the sealing cover.
4. Remove the rod clamp.
5. Remove the plug to the rear of the door panel.

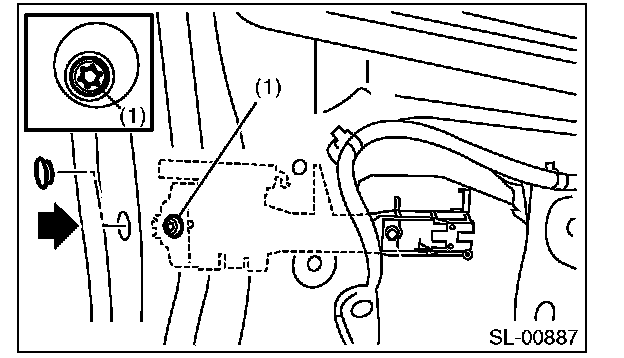

6. Loosen TORX(R) bolt (1)






7. Remove the key cylinder along with the handle cover.
8. Remove the key cylinder from the cover, and replace the key cylinder.






2. GLOVE BOX LID

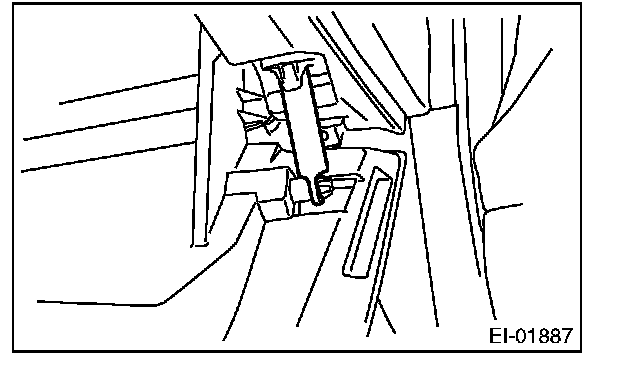

1. Remove the glove box damper.

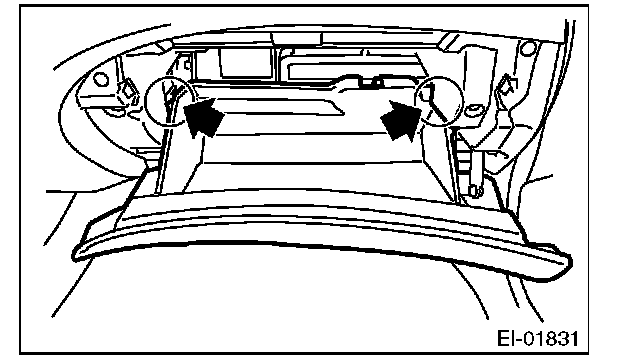

2. Remove the stoppers and pull the glove box lid assembly forward to remove.






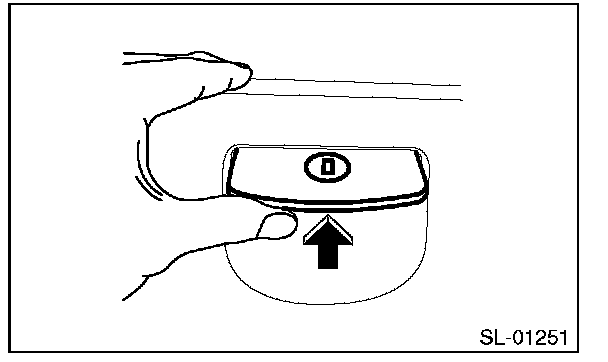

3. Pull up the lock knob with the key cylinder in UNLOCK.






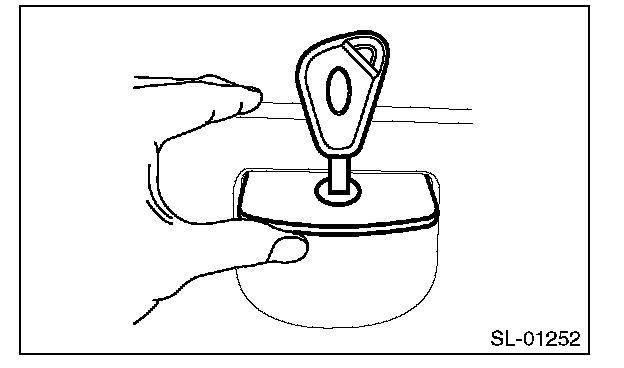

4. Insert the key while holding the condition of step 3, and pull out the key in LOCK status.






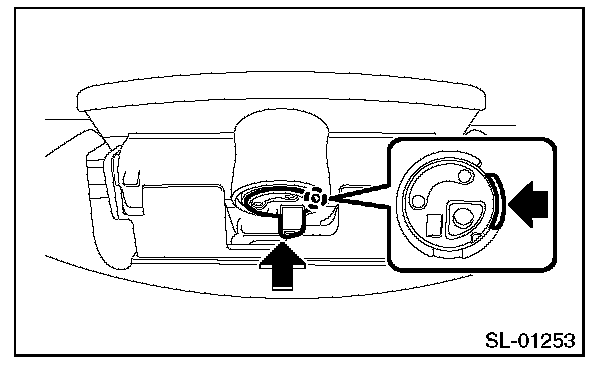

5. Remove the key cylinder from lock knob while pushing in the metal plate, and replace the key cylinder.
