Disassembly and Assembly
Rear SeatDISASSEMBLY
1. Remove the rear seat.

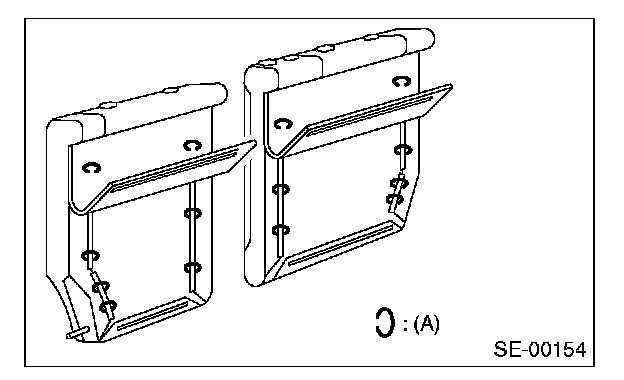

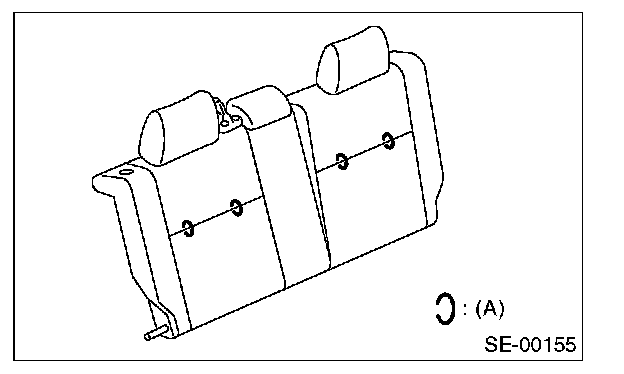

2. Remove the hog rings (A) from the vicinity of the seat backrest.
3. Remove the hog rings (A) on the front side of cushion pad, then remove the cover.

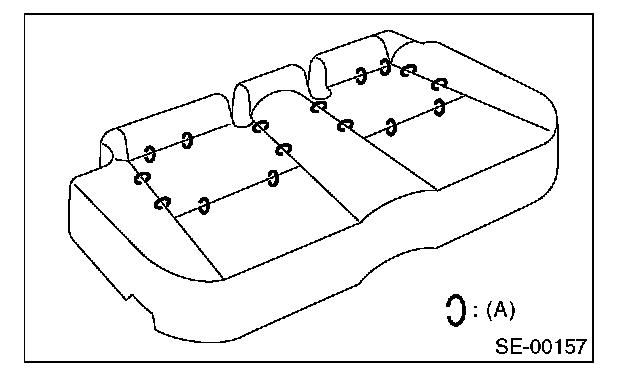

4. Remove the hog rings (A) from the vicinity of the seat cushion.

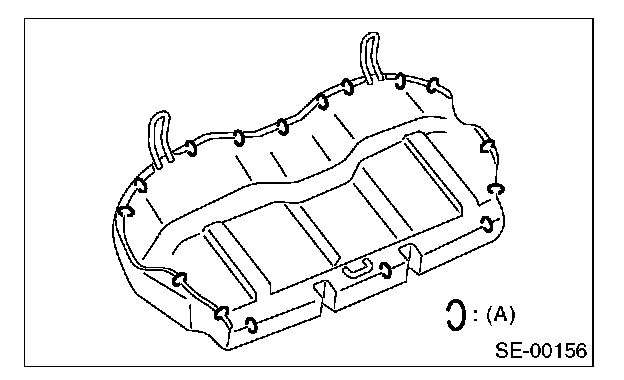

5. Remove the hog rings (A), and then remove the cover.
ASSEMBLY
Assemble in the reverse order of disassembly.
NOTE:
- Do not contaminate or damage the cover.
- While installing the hog rings, prevent the seat from getting wrinkled.
