Vehicles Prior to V.I.N. 733000

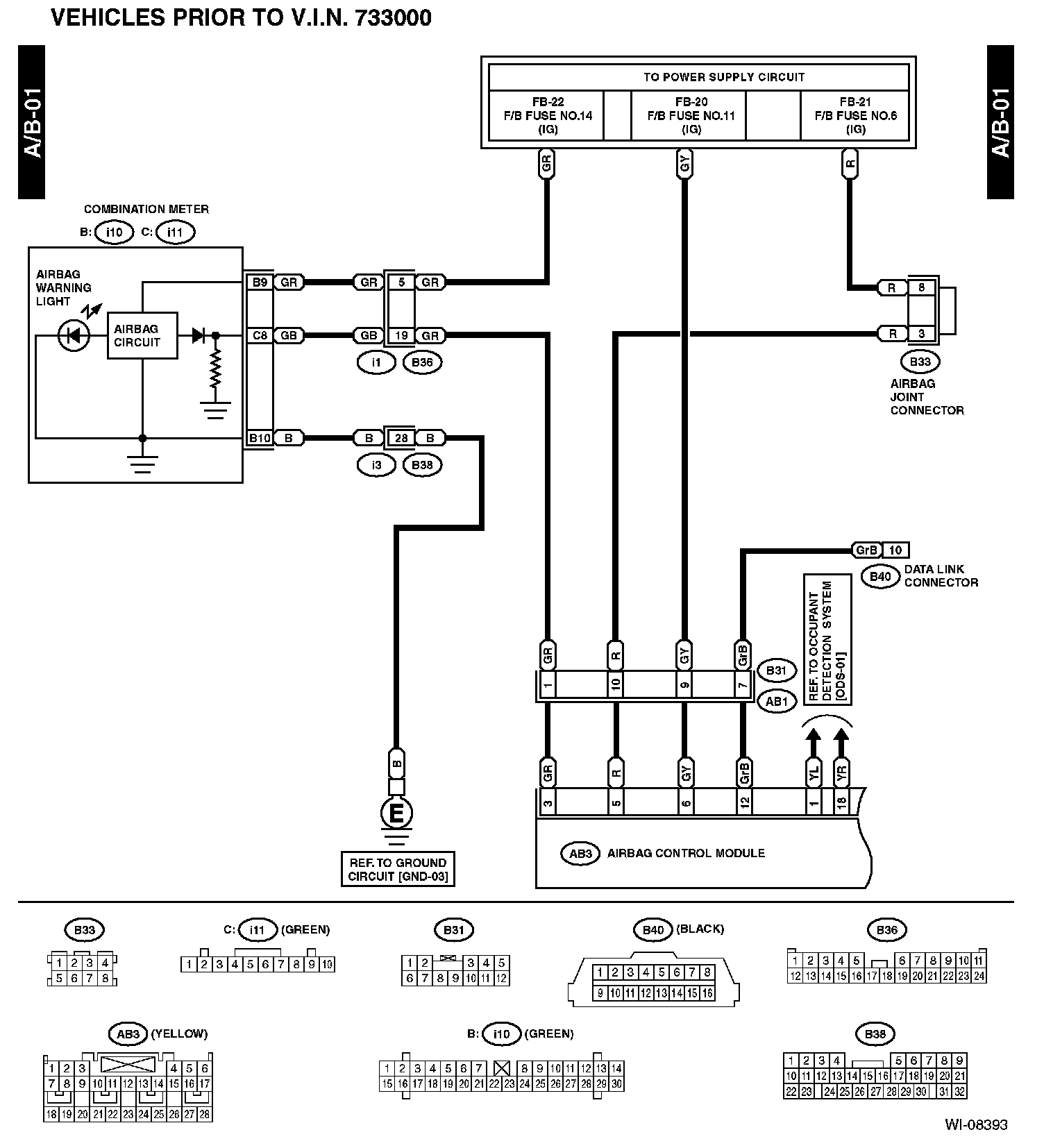

A/B-01 (Vehicles Prior To V.I.N. 733000):

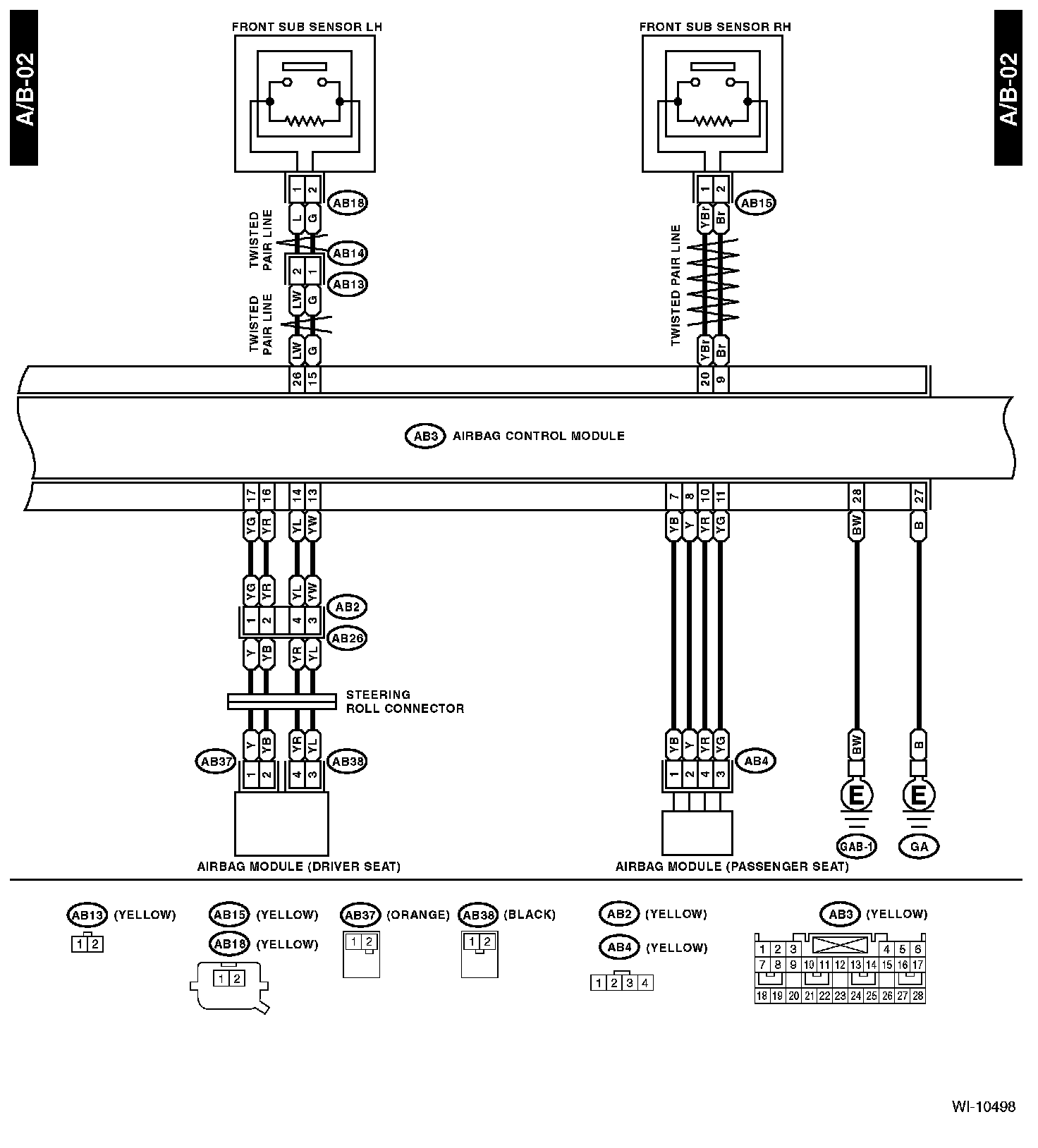

A/B-02 (Vehicles Prior To V.I.N. 733000):

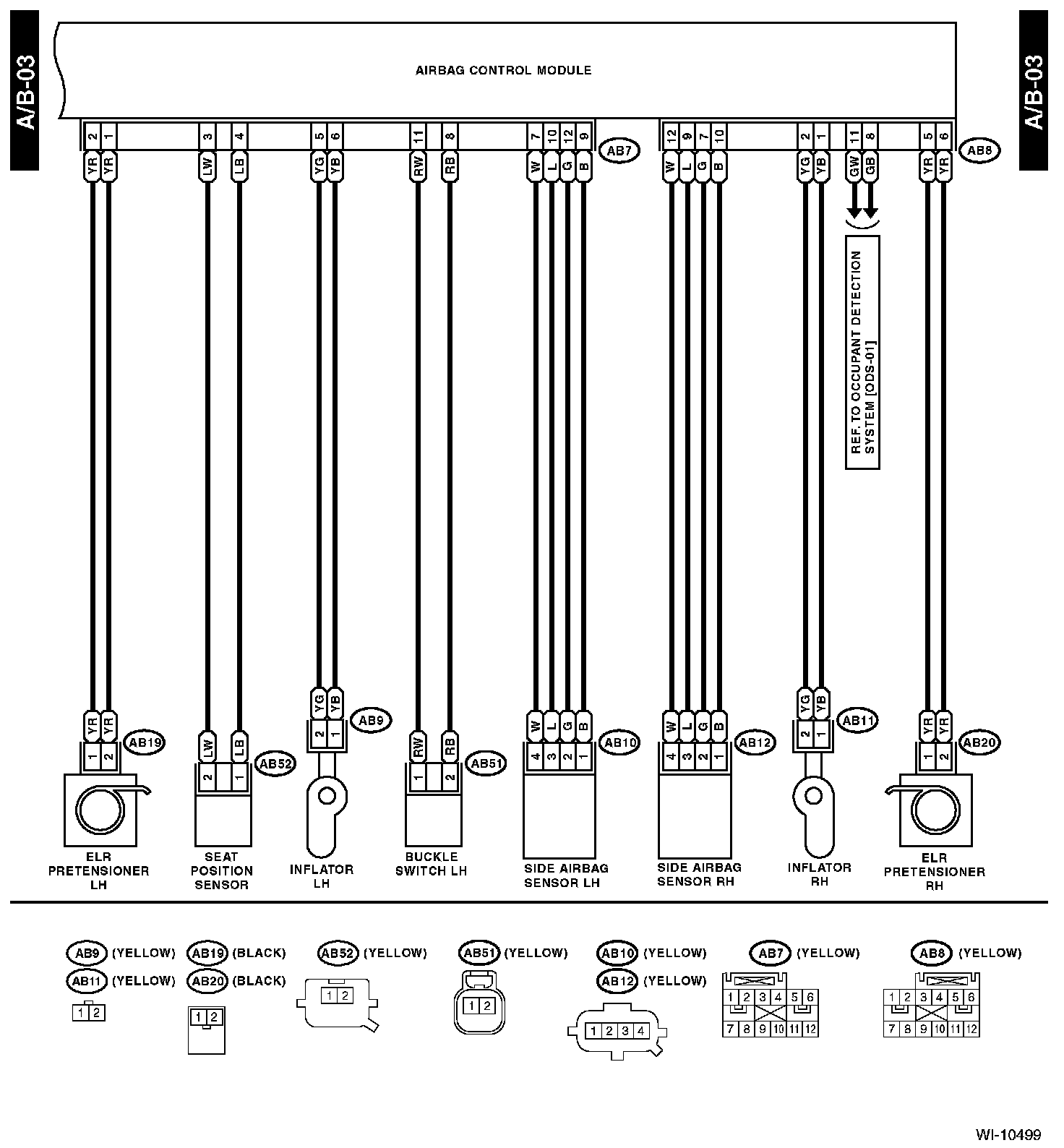

A/B-03 (Vehicles Prior To V.I.N. 733000):

Diagrams: Other diagrams referred to by name within these diagrams (i.e. "REF. TO GND-01", etc) can be found at Diagrams by Diagram Name. Diagrams By Diagram Name

Connector and Ground Locations: The locations of the Connectors or Grounds shown within these diagrams can be found via the connector or ground number at Vehicle Locations. Locations
