Removal and Installation

Combination Meter

REMOVAL
1. Disconnect the ground cable from battery.
2. Set the tilt steering at the lowest position.




3. Remove the screws and detach the meter visor.

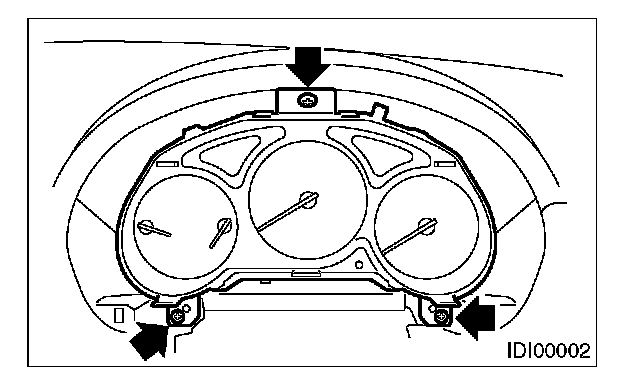

4. Remove the screws of combination meter and pull out the meter toward you.
5. Disconnect the connector in the upper area of combination meter to remove the meter.

CAUTION:
- Be careful not to damage the meter or instrumental panel.
- Be careful not to damage the meter glass.

INSTALLATION
Install in the reverse order of removal.

CAUTION:
- Make sure the electrical connector is connected securely.
- Make sure that each meter operates normally.
